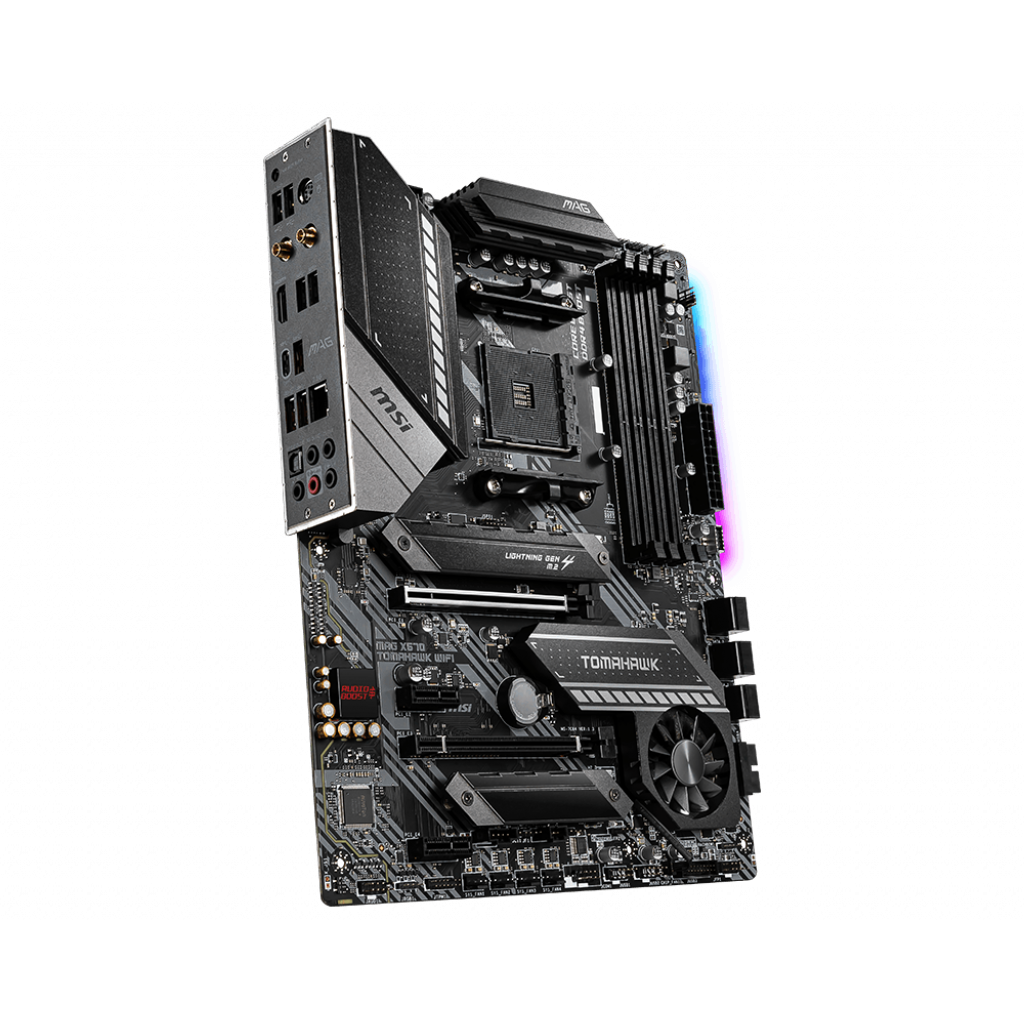

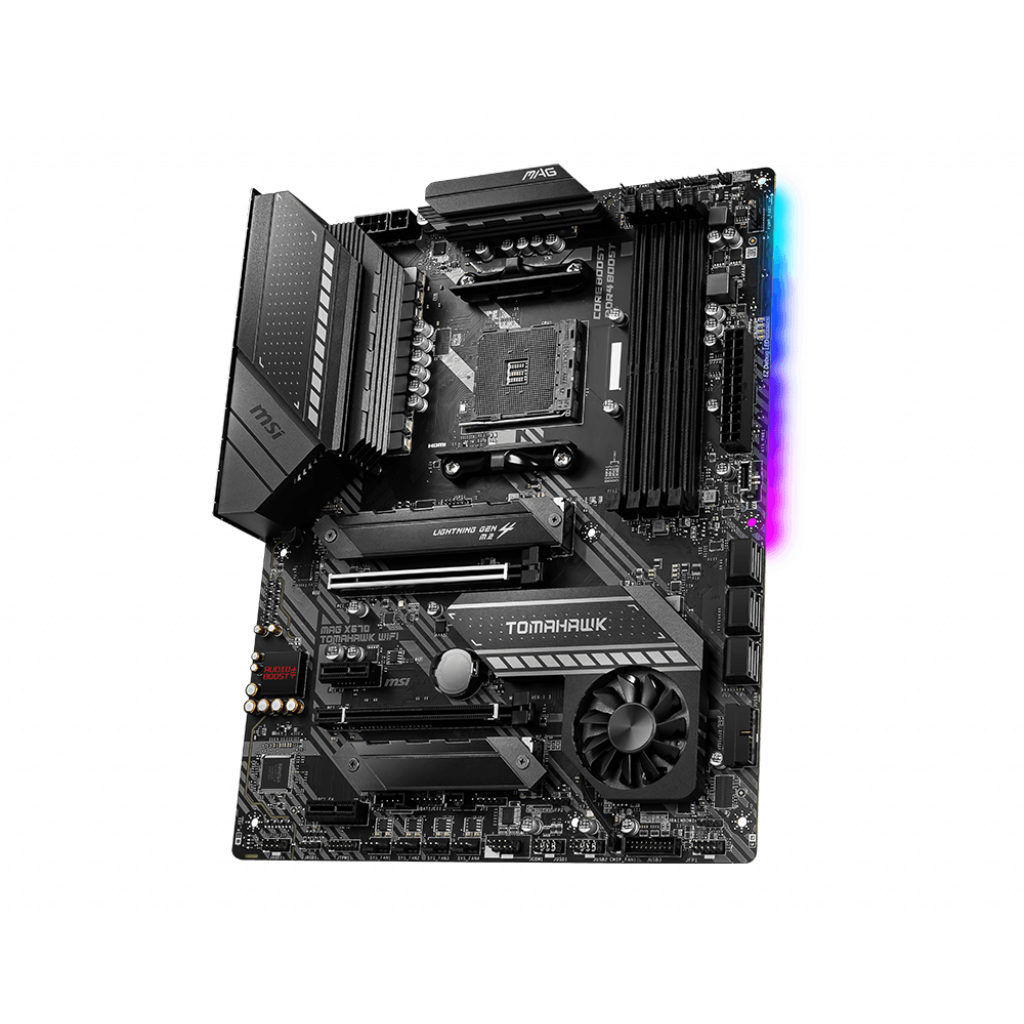

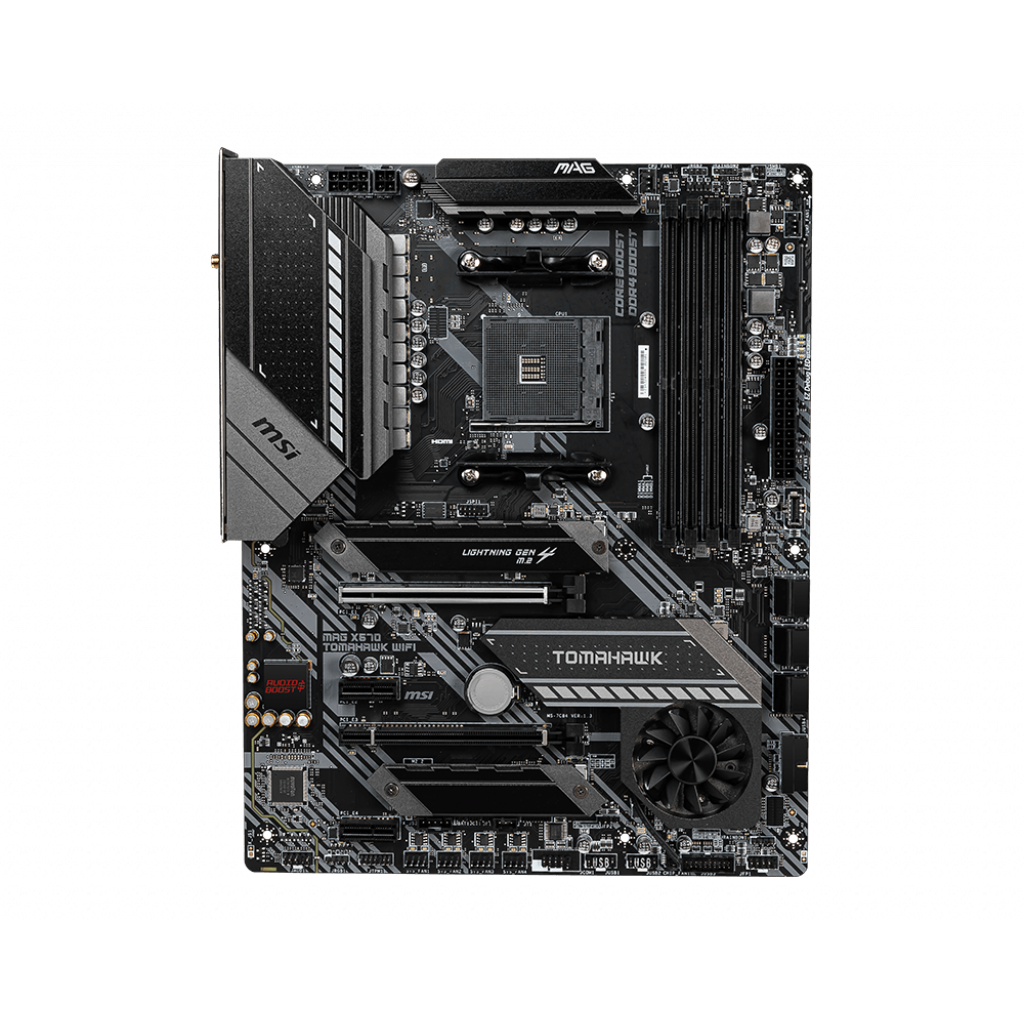

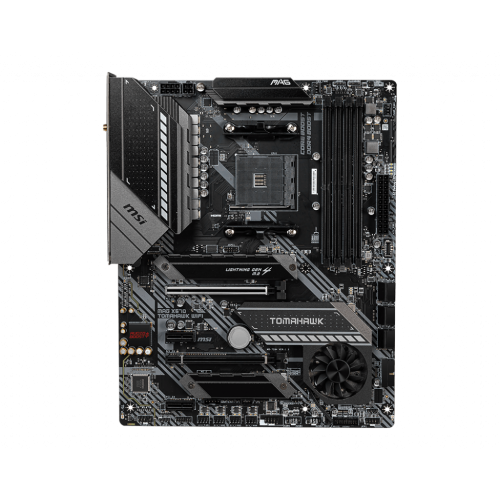

MSI MAG X570 Tomahawk Wi-Fi Motherboard

MSI MAG X570 Tomahawk Wi-Fi AMD ATX Gaming Motherboard with 4 RAM Slots

Military style with Pre-installed IO shielding, tuned for better performance by Core Boost, DDR4 Boost, M.2 Shield Frozr, Wi-Fi 6, Frozr Heatsink Design, Lightning Gen4

• Brand MSI
• CPU Socket Socket AM4
• RAM Memory Technology DDR4
• Memory Clock Speed 4600
• Platform Windows 10

-Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

-Supports DDR4 Memory, up to 4600 MHz

-Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2

-MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.

-Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

-Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost

-AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

-Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK  with user friendly user interface.

PROCESSOR

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

CHIPSET

AMD® X570 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB 1

3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE

2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOTS

1x PCIe 4.0/3.0 x16 slot (PCI_E1)

3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode

2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode

Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode

1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode

2x PCIe 3.0 x1 slots

The speeds may vary for different devices

ONBOARD GRAPHICS

1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2

Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics ProcessorsMaximum shared memory of 2048 MB

MULTI-GPU

Supports 2-Way AMD® CrossFire™ Technology

LAN

1x Realtek® 8125B 2.5Gbps LAN Controller

WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6 AX200

Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps

Supports Bluetooth® 5

The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

STORAGE

6x SATA 6Gb/s ports (from AMD® X570 Chipset)

2x M.2 slots (Key M) 1

M2_1 slot (from AMD® Processor)

Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)

Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD® X570 Chipset)

Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)

Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

The speeds may vary for different devices

RAID

Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)

4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports Optical S/PDIF output

INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

1x USB 3.2 Gen 2 10Gbps Type-C Port

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x TPM module connector

1x Serial port connector

1x Clear CMOS jumper

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

4x EZ Debug LEDs

1x TBT connector 1

1x RTD3 connector

Thunderbolt card needs to support RTD3.

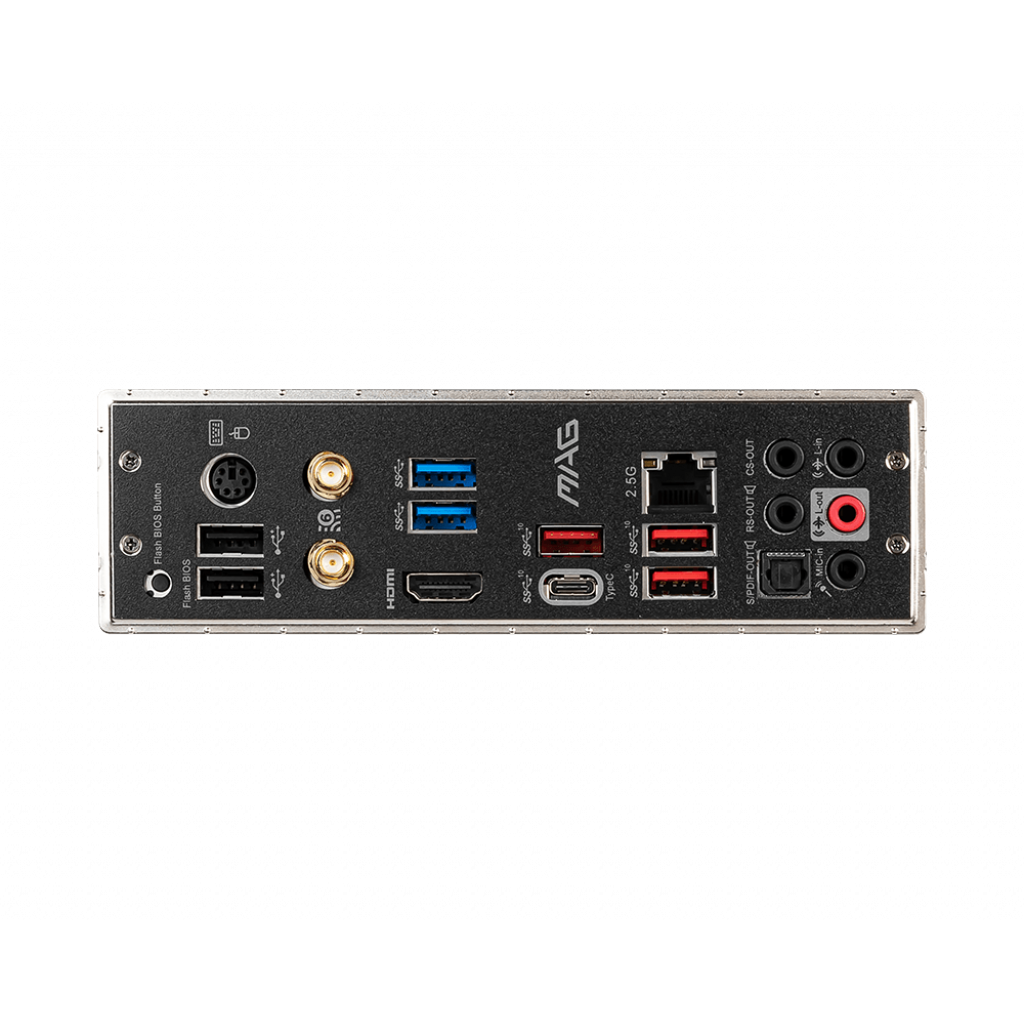

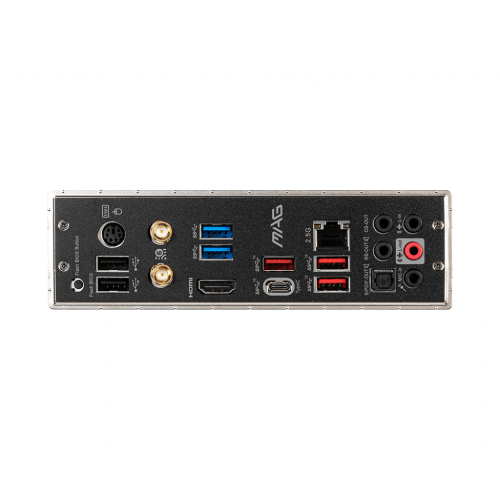

BACK PANEL PORTS

Keyboard / Mouse

Wireless / Bluetooth

USB 3.2 Gen 1 5Gbps Type A

USB 3.2 Gen 2 10Gbps Type A

2.5G LAN port

Audio Connectors

USB 2.0

HDMI port

USB 3.2 Gen 2 10Gbps Type C

USB 3.2 Gen 2 10Gbps Type A

Optical S/PDIF out

MAG X570 TOMAHAWK WIFI

I/O CONTROLLER

NUVOTON NCT6797 Controller Chip

HARDWARE MONITOR

CPU/ System/ Chipset temperature detection

CPU/ System/ Chipset fan speed detection

CPU/ System/ Chipset fan speed control

BIOS FEATURES

1x 256 Mb flash

UEFI AMI BIOS

ACPI 6.1, SM BIOS 2.8

Multi-language

FORM FACTOR

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
