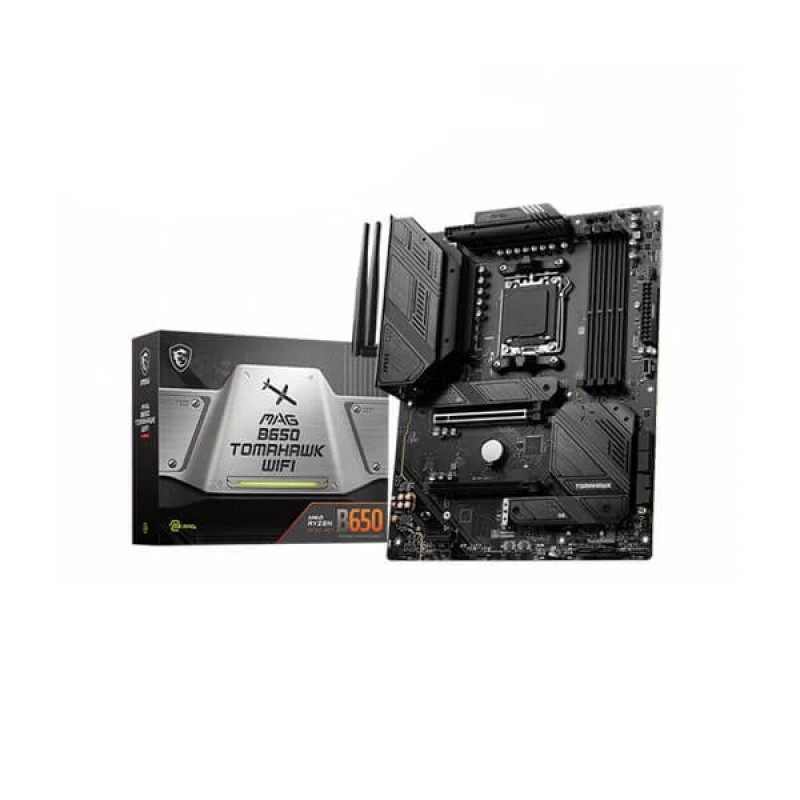

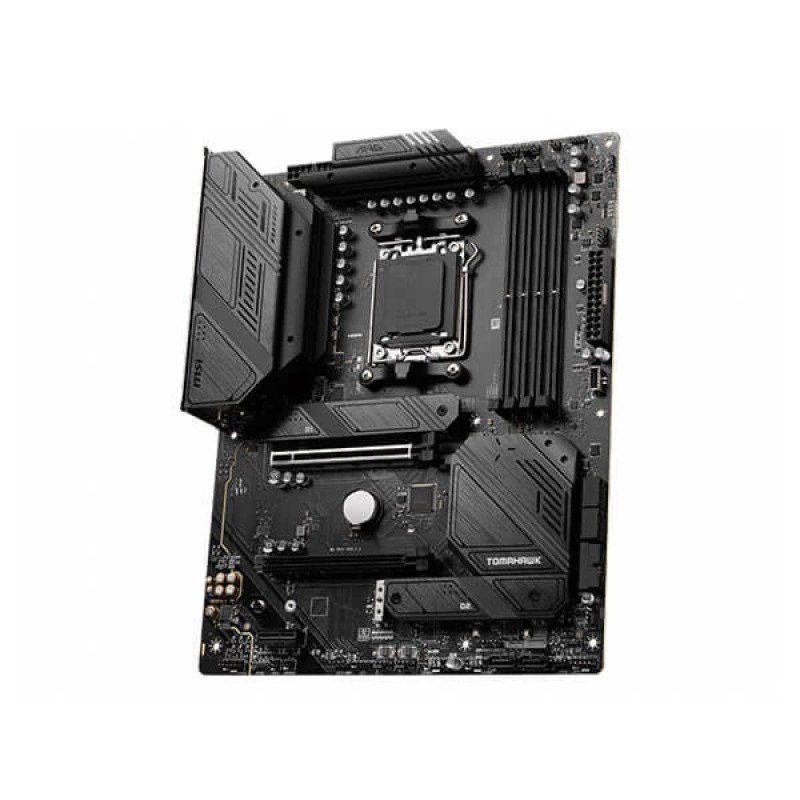

Msi MAG B650 Tomahawk wifi

Msi MAG B650 Tomahawk wifi
Msi MAG B650 Tomahawk wifi
New FREE SHIPPING -11 %
Msi MAG B650 Tomahawk wifi
Msi MAG B650 Tomahawk wifi
Msi MAG B650 Tomahawk wifi
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
All Orders Will Be Processed After 1st April 2023
Orders Delayed Due To Financial Year Closing.
  • Stock: In Stock
  • Model: MAG-B650-TOMAHAWK-WIFI
  • SKU: TLG-003893
Rs.23,199.00
Rs.25,999.00
Ex Tax: Rs.19,660.17

Supports AMD Ryzen™ 7000 Series Desktop Processors

Supports DDR5 Memory, up to 6400+(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification


ChipsetAMD B650
CPU SUPPORT
  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 4x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Onboard Graphics
  • 1x HDMI
  • 1x DisplayPort Support HDMITM 2.1 with HDR
  • maximum resolution of 4K 60Hz Support DP 1.4 maximum resolution of 8K 60Hz
EXPANSION SLOT
  • 2x PCI-E x16 slot
  • Support x16/ x4
  • 1x PCI-E x1 slot
  • PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 ,
  • supports 2280/2260 devices M.2_2 (From CPU)
  • supports up to PCIe 4.0 x4
  • supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4
  • supports 2280/2260 devices 6x SATA 6G port
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LANRealtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH

AMD Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz,
  • 40MHz,
  • 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
AudioRealtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C
LED FEATURE4x EZ Debug LED
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DimensionATX 243.84mmx304.8mm
Warranty3 Years
Technical
CHIPSETB650
