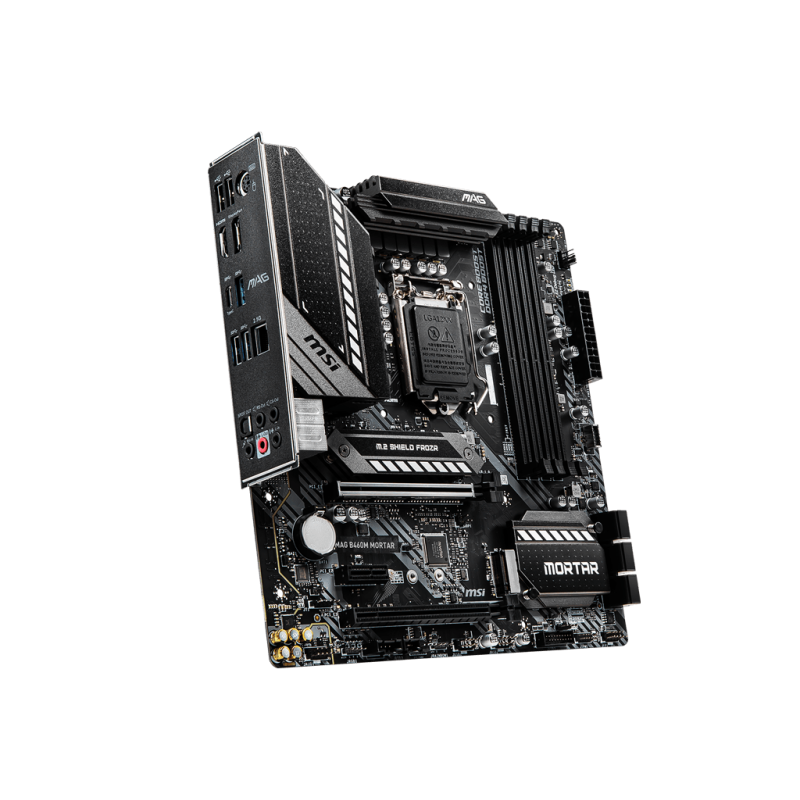

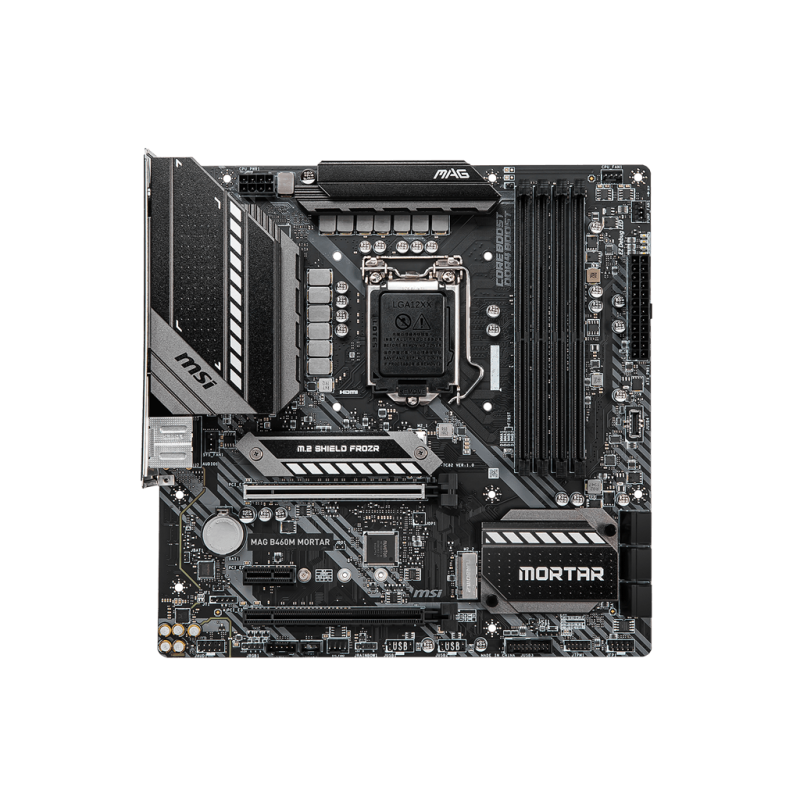

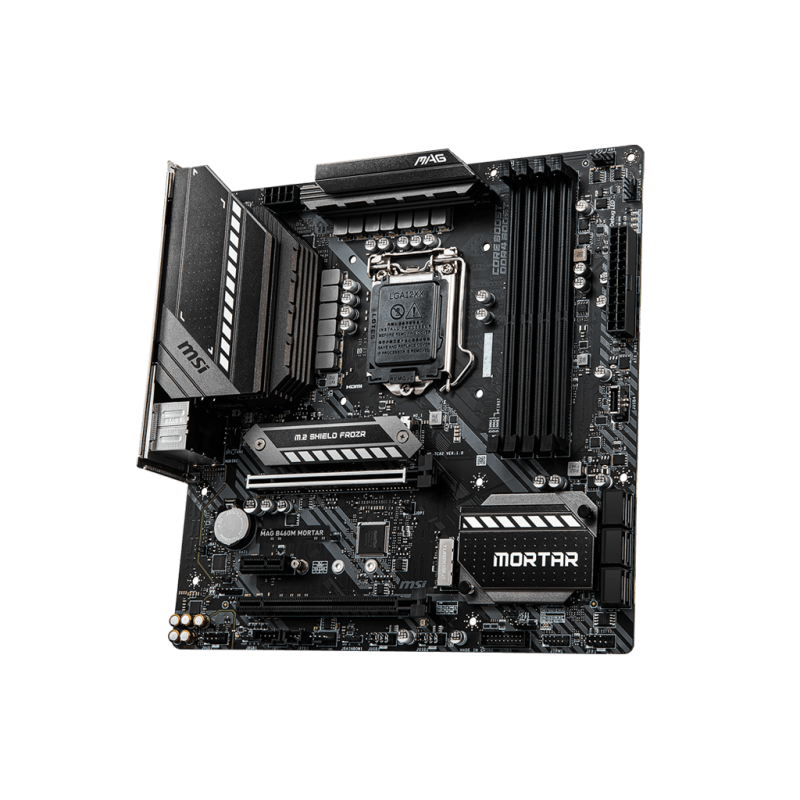

Msi MAG B460M Mortar Motherboard

Msi MAG B460M Mortar was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933 MHz(Max)
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality

Specifications


CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
ChipsetIntel® B460 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Intel® Core™ i7/i9
    • Support DDR4-2933 Memory (Max.)
  • Intel® Core™ i5 (Below)
    • Supports DDR4-2666 Memory (Max.)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
  • 1x PCIe 3.0 x1 slot (from PCH)
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
  • 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
StorageIntel® B460 Chipset
  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors
RAIDIntel® B460 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USBIntel® B460 Chipset
  • 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector)
  • 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AudioRealtek® ALC1200 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN1x Realtek® RTL8125B 2.5G LAN Controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 3.2 Gen 1 5Gbps Type-C connector
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 2x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TBT connector
  • 1x RTD3 connector

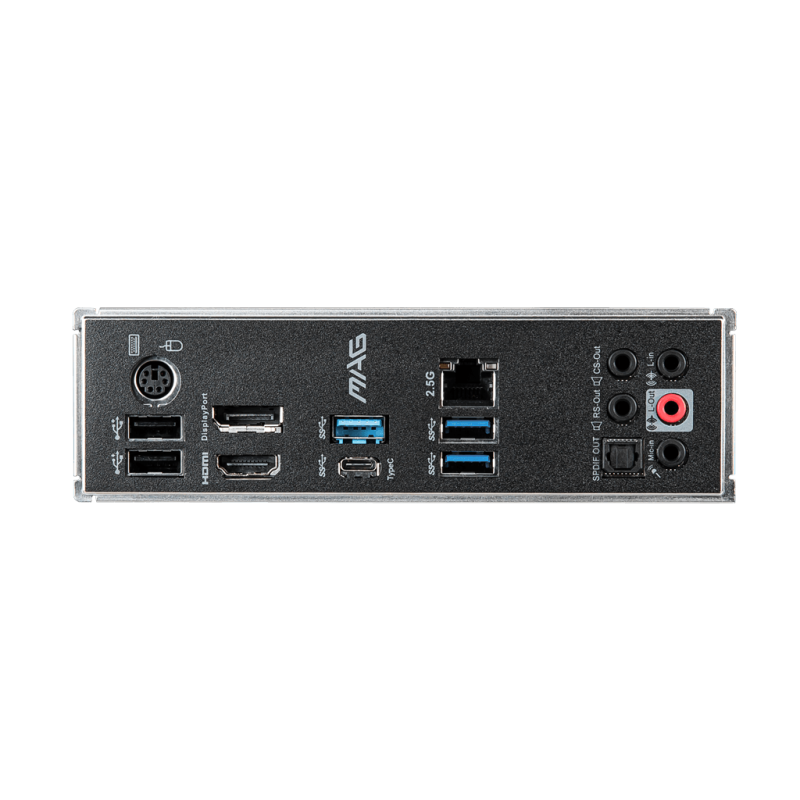

Back panel ports
  • PS/2 Combo Port
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps(Type-A)
  • 2.5G LAN Port
  • WiFi Antenna connectors
  • HD Audio Connectors
  • USB 2.0 Ports
  • HDMI Port
  • USB 3.2 Gen 1 5Gbps(Type-C)
  • USB 3.2 Gen 1 5Gbps(Type-A)
  • Optical S/PDIF OUT
I/O ControllerNUVOTON NCT6687 Controller Chip
Hardware Monitor
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU/System fan speed control
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty3 Years
