  • Stock: Out Of Stock
  • Model: MAG-B460-TOMAHAWK
  • SKU: TLG-002741
  • EAN: 4719072730369
Rs.14,999.00
Ex Tax: Rs.12,711.02

MSI MAG B460 TOMAHAWK Motherboard

MSI MAG B460 TOMAHAWK features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.


Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933MHz (Max.)
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™


Specifications

CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
ChipsetIntel® B460 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Intel® Core™ i7/i9
    • Supports up to DDR4 2933 MHz
  • Intel® Core™ i5 (Below)
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
  • 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode
  • 2x PCIe 3.0 x1 slots (From PCH)
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
StorageIntel® B460 Chipset
  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors
RAIDIntel® B460 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USBIntel® B460 Chipset
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
  • 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® ASM3241 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
AudioRealtek® ALC1200 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
  • 1x Intel® I219V 1Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

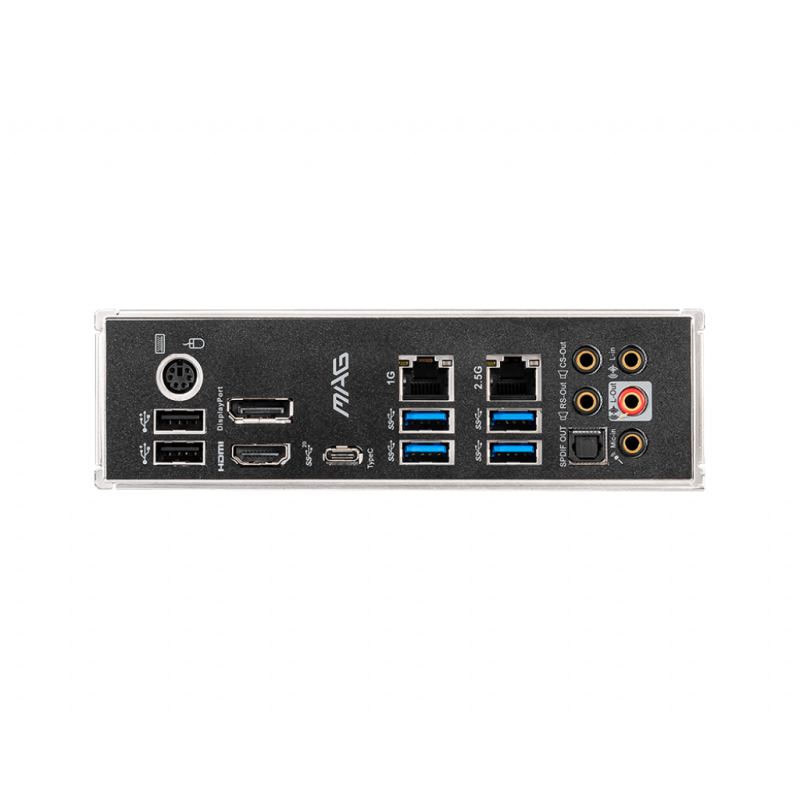

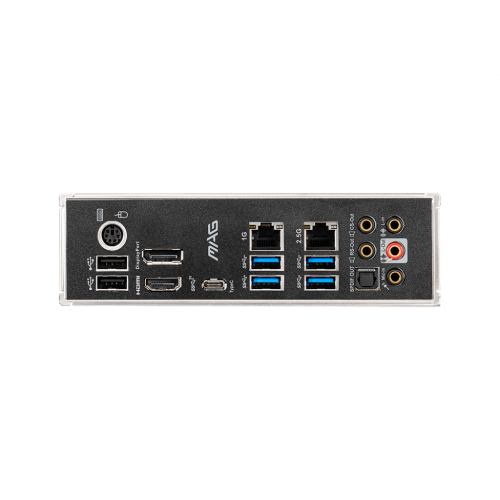

Back panel ports
  • PS/2 Combo Port
  • DisplayPort
  • 1G LAN Port
  • 2.5G LAN Port
  • HD Audio Connectors
  • USB 2.0 Ports
  • HDMI
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Optical S/PDIF OUT
LED Features
  • 1x EZ LED Control switch
  • 4x EZ Debug LED
I/O ControllerNUVOTON NCT6687 Controller Chip
Hardware Monitor
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU/System fan speed control
Form Factor
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty3 Years
