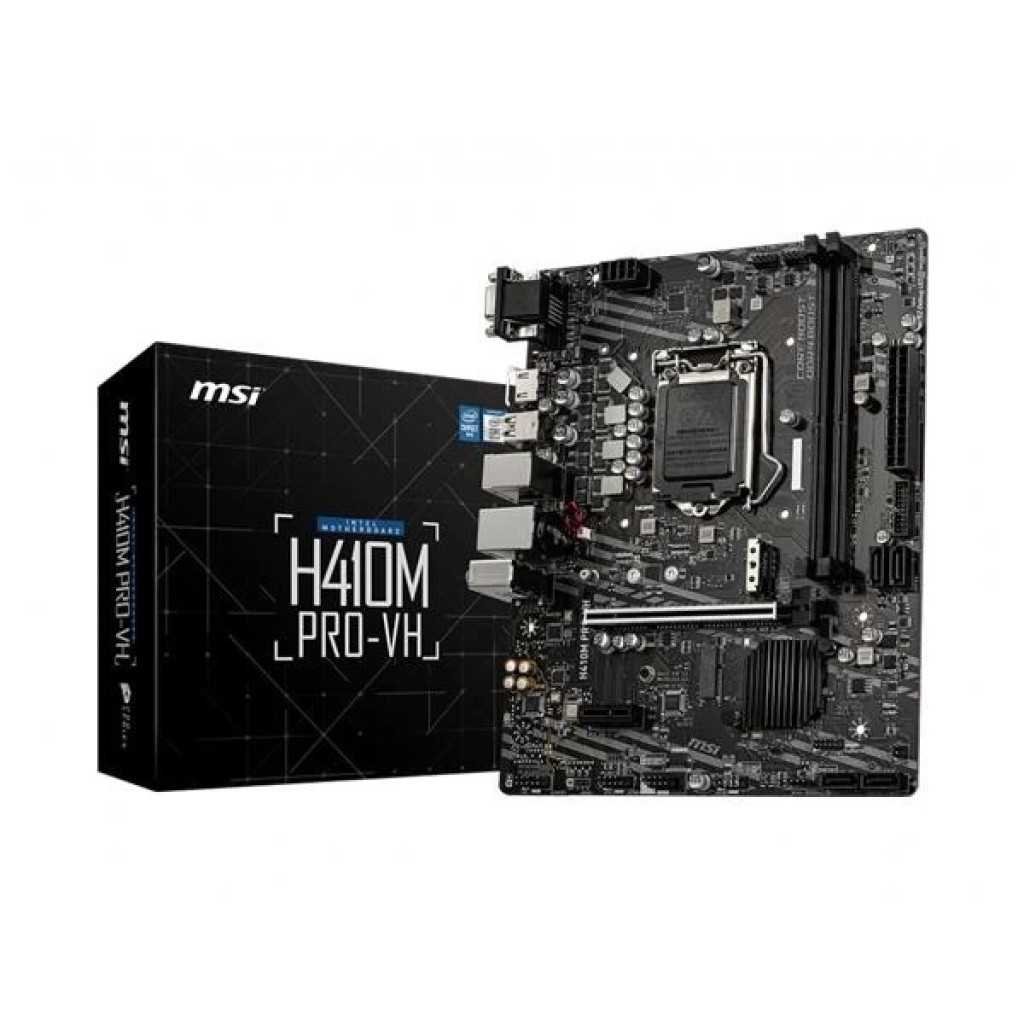

Msi H410M Pro-VH

Msi H410M Pro-VH
-38 % Out Of Stock
Msi H410M Pro-VH
  • Stock: Out Of Stock
  • Model: H410M-PRO-VH
  • SKU: TLG-003860
Rs.4,999.00
Rs.7,999.00
Ex Tax: Rs.4,236.44

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket

Supports DDR4 Memory, up to 2933(Max) MHz

Core Boost: With premium layout and digital power design to support more cores and provide better performance.

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications


ProcessorSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket
ChipsetIntel® H410 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB1
  • Intel® Core™ i7/ i9
    • Supports up to DDR4 2933 MHz
  • Intel® Core™ i5 and below
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (From CPU)
  • 1x PCIe 3.0 x1 slot (From PCH)
  • 1x M.2 slot with E key for WiFi module only
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
StorageIntel® H410 Chipset
  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
USBIntel® H410 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AudioRealtek® ALC892/ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN1x Intel® I219V Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x Serial port connector
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED
Back panel ports
  1. VGA
  2. Keyboard / Mouse
  3. LAN
  4. HDMI
  5. USB 3.2 Gen 1 5Gbps Type-A
  6. USB 2.0
  7. USB 2.0
  8. Audio Connectors
Dimensions
  • Mirco-ATX Form Factor
  • 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Mounting6 mounting holes
Operating SystemSupport for Windows® 10 64-bit
Warranty3 Years
