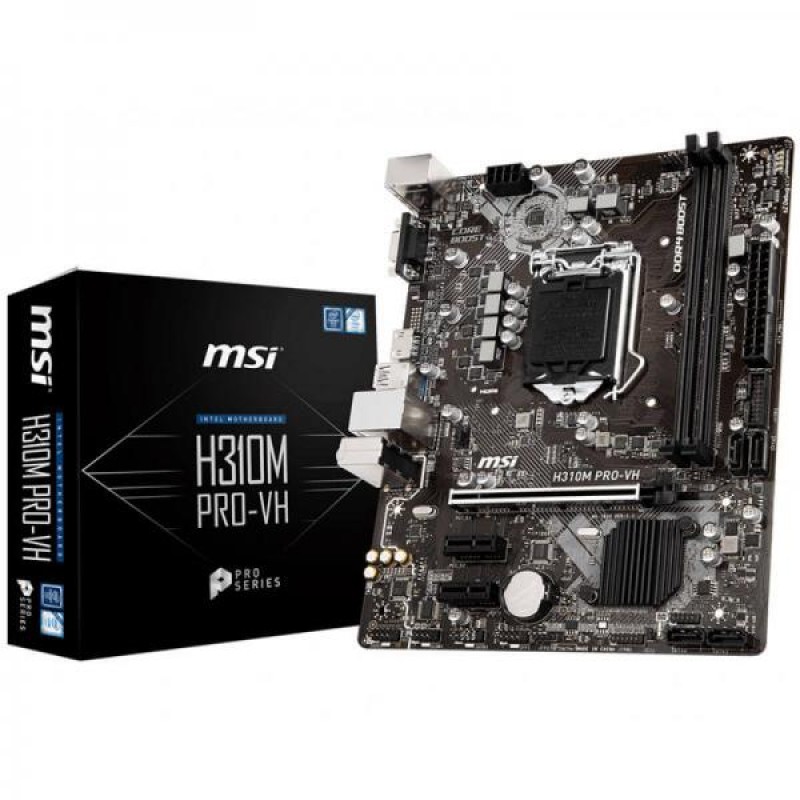

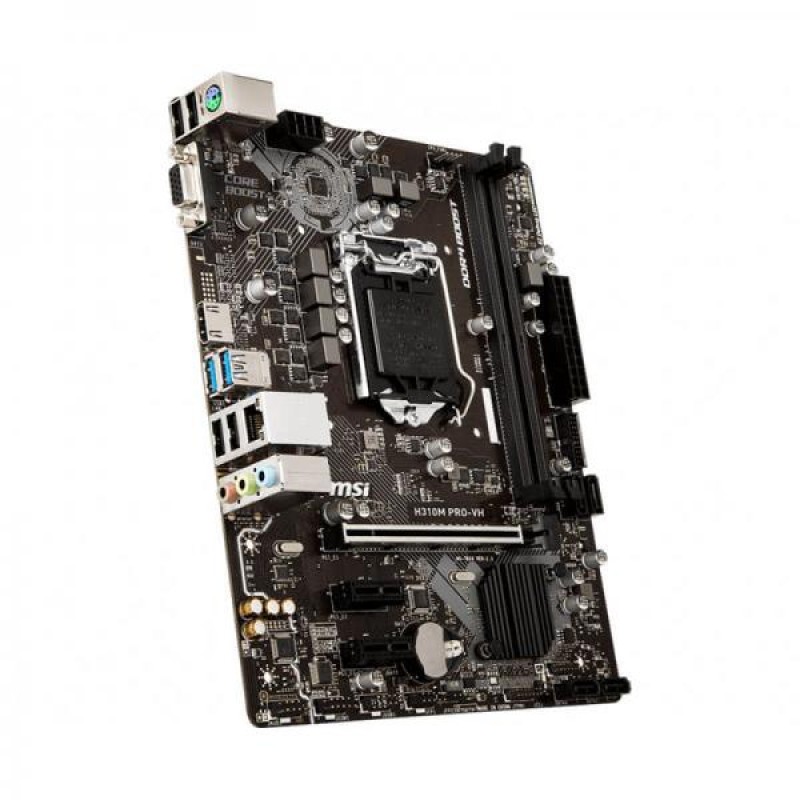

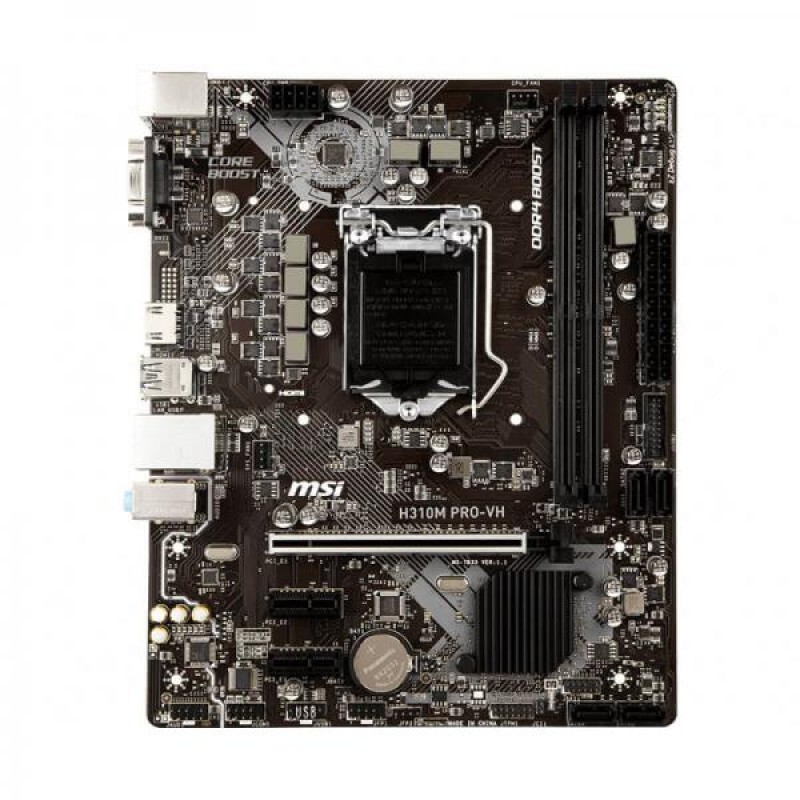

Msi H310M Pro-VH Motherboard

Features

• Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
• Supports DDR4 Memory, up to 2666MHz
• Audio Boost: Reward your ears with studio grade sound quality.
• EZ Debug LED: Easiest way to troubleshoot.
• PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Specifications

PROCESSOR	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET	Intel® H310 Chipset
MEMORY	2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
SLOTS	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
ONBOARD GRAPHICS	1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H *No Display support when using the Processor model with suffix “F”
STORAGE

Intel® H310 Chipset

4 x SATA 6Gb/s ports

USB

Intel® H310 Chipset

4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek® ALC887 Codec

7.1-Channel High Definition Audio
LAN	1 x RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 2 x Front panel connectors 1 x Front panel audio connector 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 4 x EZ Debug LED
BACK PANEL PORTS	PS/2 Combo Port VGA Port HDMI Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port USB 2.0 Port
DIMENSIONS	8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor
MOUNTING	6 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
