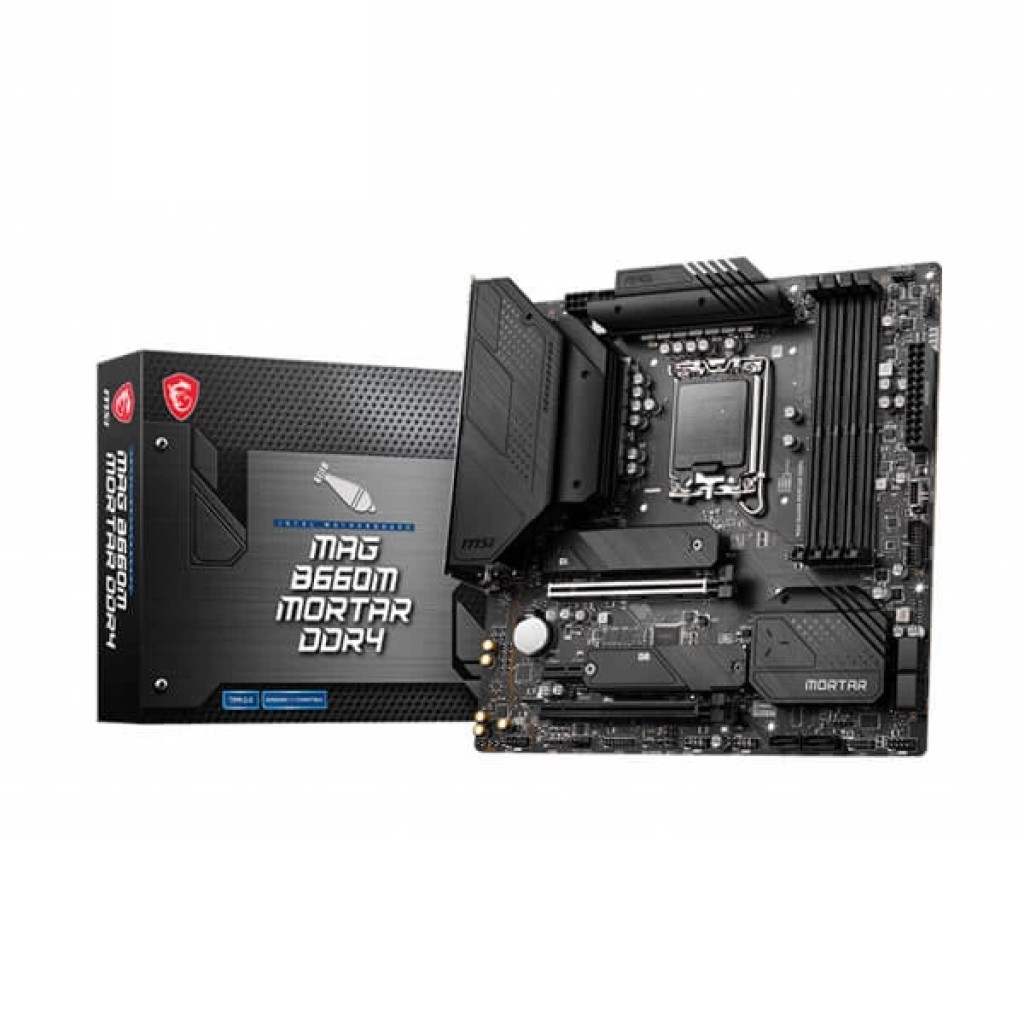

Msi MAG B660m Mortar DDR4

Msi MAG B660m Mortar DDR4
Out Of Stock
Msi MAG B660m Mortar DDR4
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
  • Stock: Out Of Stock
  • Model: MAG-B660M-MORTAR-DDR4
  • SKU: TLG-003548
Rs.16,399.00
Ex Tax: Rs.13,897.46

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4800+(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag

Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

Audio Boost: Reward your ears with studio grade sound quality

Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Specifications:


Processor

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket LGA1700

ChipsetIntel® B660 Chipset
Memory

4x DDR4 memory slots, support up to 128GB1

Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 4800+ MHz

1DPC 2R Max speed up to 4000+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot

2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 4.0 x16

PCI_E3 slot (From B660 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot

Multi-GPUSupports 2-Way AMD® CrossFire™ Technology
Onboard Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1 / 2

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 /

2 Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Storage
  • 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1
  • 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
  • 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports PCIe 4.0
  • x4 Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B660 Chipset)1
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Memory
  • SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices1

SATA_A & SATA_B do not support RAID function.

USB

Intel® B660 Chipset

  • 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
  • 4x USB 2.0 ports on the back panel

USB Hub-GL3590

  • 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors
Audio

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® 8125BG 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
LED Feature
  • 4x EZ Debug LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
Back panel ports
  • USB 2.0 Port
  • DisplayPort 1.4
  • USB 3.2 Gen 2 10Gbps Type-A
  • 2.5G LAN Port
  • HD Audio Connectors
  • HDMI 2.1 Port
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • Optical S/PDIF OUT
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty3 Years
Technical
CHIPSETB660
