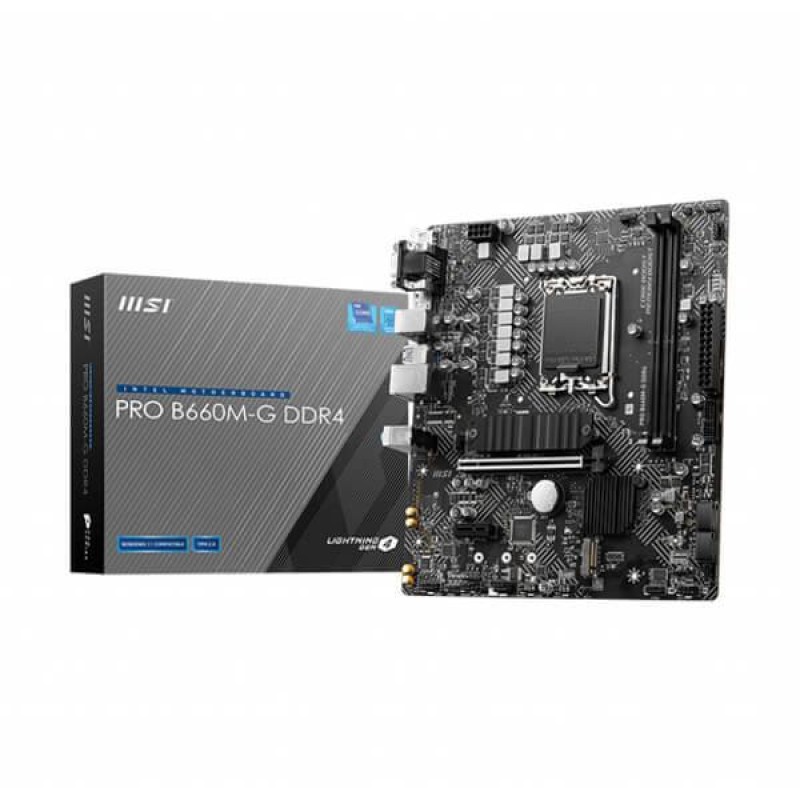

Msi PRO B660M-G DDR4 Motherboard

Msi PRO B660M-G DDR4 Motherboard
Msi PRO B660M-G DDR4 Motherboard
Out Of Stock
Msi PRO B660M-G DDR4 Motherboard
Msi PRO B660M-G DDR4 Motherboard
Msi PRO B660M-G DDR4 Motherboard
  • Stock: Out Of Stock
  • Model: PRO-B660M-G-DDR4
  • SKU: TLG-003627
Rs.11,299.00
Ex Tax: Rs.9,575.42

Msi PRO B660M-G DDR4 Motherboard

Key Features

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.


FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.


FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.


CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.



Specifications:

CPU
  • Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
ChipsetIntel® B660 chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports ADL-s 1R 2133/2666/2933/3200 MHz 1
  • 1DPC 1R Max speed up to 4600+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 4.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x1 slot (from B660 chipset)
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN1x Realtek® RTL8125BG 2.5Gbps LAN controller
Storage
  • 4x SATA 6Gb/s ports (From B660 chipset) 1
  • 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B660 chipset) 1
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Technology
  • SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
USB

Intel® B660 Chipset

  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
  • 2x USB 2.0 Type-A ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors
Form Factor
  • M-ATX Form Factor
  • 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
BIOS Features
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.4, SMBIOS 3.4
  • Multi-language
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connector (support additional 4 USB ports)
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectorx
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x JRGB
  • 2x JRAINBOW
  • 1x Tuning Controller Connector
LED Feature4x EZ Debug LED

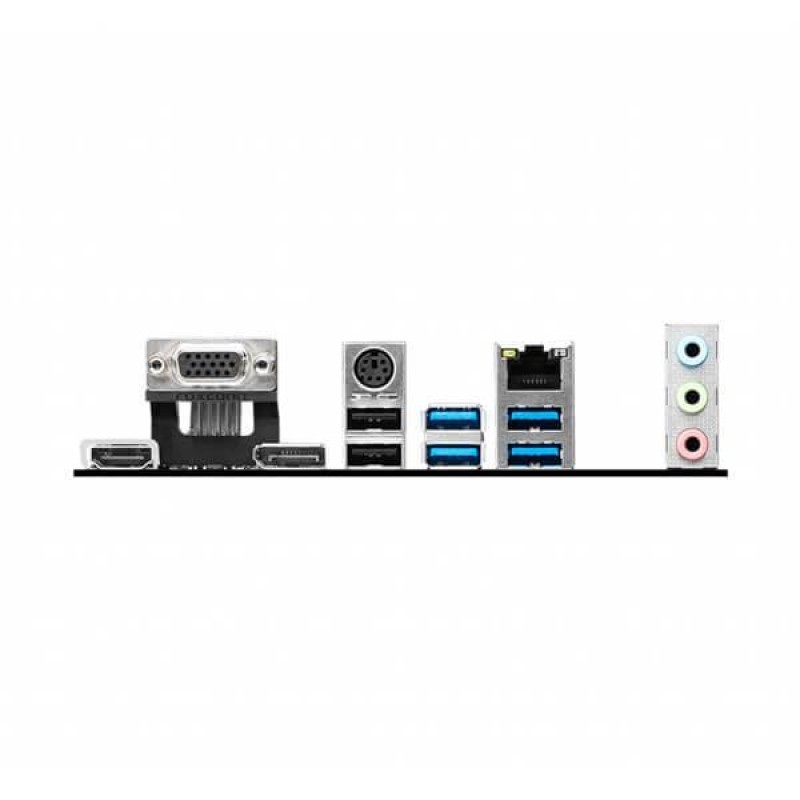

Back panel Connectors
  • VGA
  • Keyboard / Mouse
  • LAN port
  • Audio connector
  • HDMI
  • DisplayPort
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps
  • Type-A
Warranty3 Years
Technical
CHIPSETB660
TLG GAMING25/06/2021
