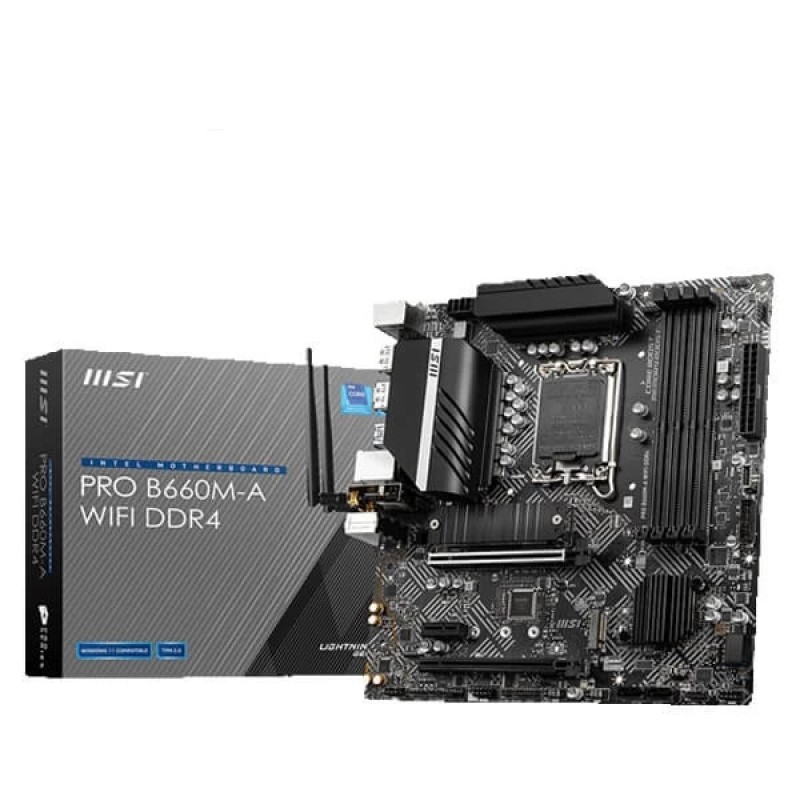

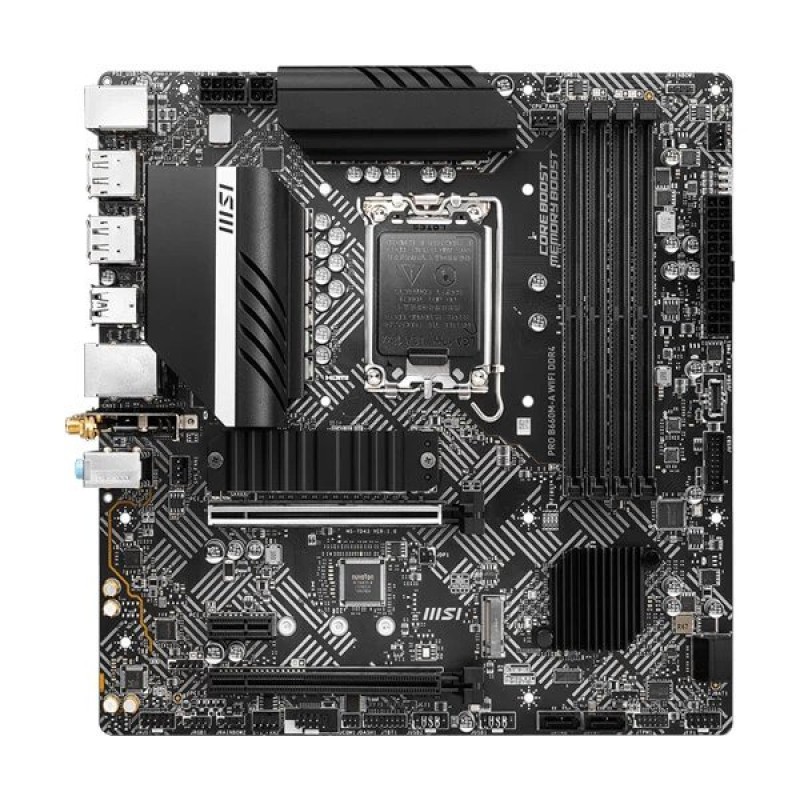

Msi PRO B660M-A wifi DDR4

M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.


Specs
CPU (MAX SUPPORT) : i9
SOCKET : 1700
CHIPSET : Intel® B660 Chipset
DDR4 MEMORY : 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL : Dual
DIMM SLOTS : 4
MAX MEMORY (GB) : 128GB
PCI-E X16 : 2
PCI-E X1 : 1
SATAIII : 4
M.2 SLOT : 2
RAID : 0/1/5/10
TPM (HEADER) : 1
LAN : 1x Realtek® RTL8125BG 2.5Gbps LAN controller
USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) : 2(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 2
SERIAL PORTS(FRONT) : 1
AUDIO PORTS (REAR) : Realtek® ALC897 Codec
DISPLAYPORT : 2
HDMI : 2
DIRECTX : 12
FORM FACTOR : MATX
OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
