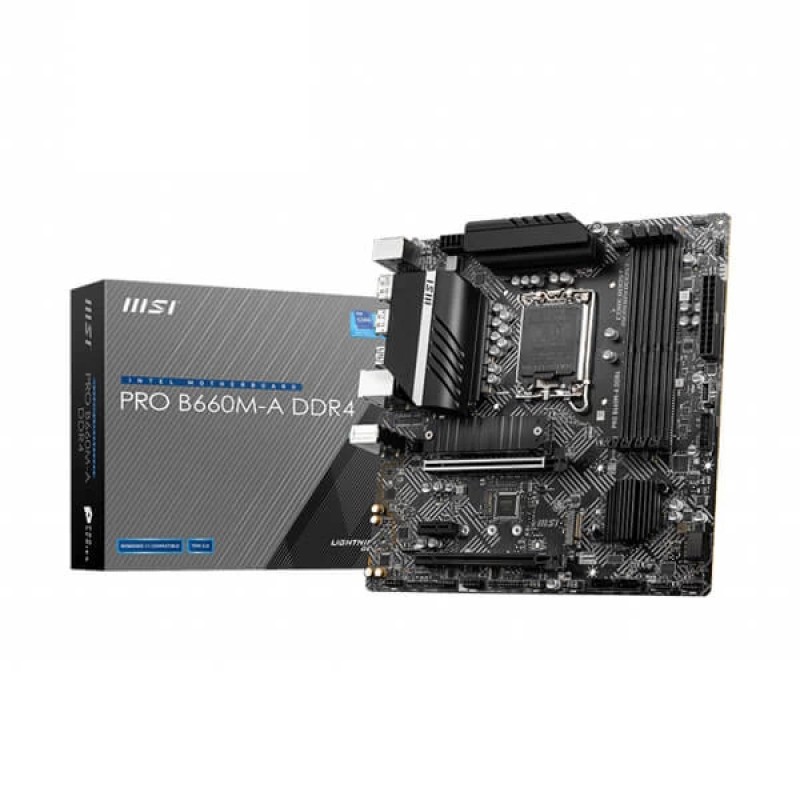

Msi PRO B660m-A DDR4 Motherboard

Msi PRO B660m-A DDR4 Motherboard
-4 % Out Of Stock
Msi PRO B660m-A DDR4 Motherboard
  • Stock: Out Of Stock
  • Model: PRO-B660M-A-DDR4
  • SKU: TLG-003550
Rs.13,299.00
Rs.13,899.00
Ex Tax: Rs.11,270.34

Msi PRO B660m-A DDR4 Gaming Motherboard

Key Features

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4800+(OC) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Audio Boost: Reward your ears with studio grade sound quality


Specifications:

CPU

Supports 12th Gen Intel® Core™ Processors

Processor socket LGA1700

ChipsetIntel® B660 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memoryy
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 2x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support PCIe 4.0 x16
  • PCI_E3 (From B660 chipset)
  • Support PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Onboard Graphics
  • 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2
  • 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
Storage
  • 4x SATA 6Gb/s ports (From B660 chipset)
  • 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B660 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Memory
  • Support Intel® Smart Response Technology for Intel Core™ processors
  • SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
  • 1x Realtek® RTL8125BG 2.5Gbps LAN controller
USB

Intel® B660 Chipset

  • 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
  • 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Asmedia ASM1074

  • 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (supports RTD3)
  • 1x Serial port
  • 1x Tuning Controller connector
LED Features

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

Back panel ports
  • Keyboard / Mouse
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • LAN port
  • Audio connector
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty3 Years
Technical
CHIPSETB660
TLG GAMING25/06/2021
