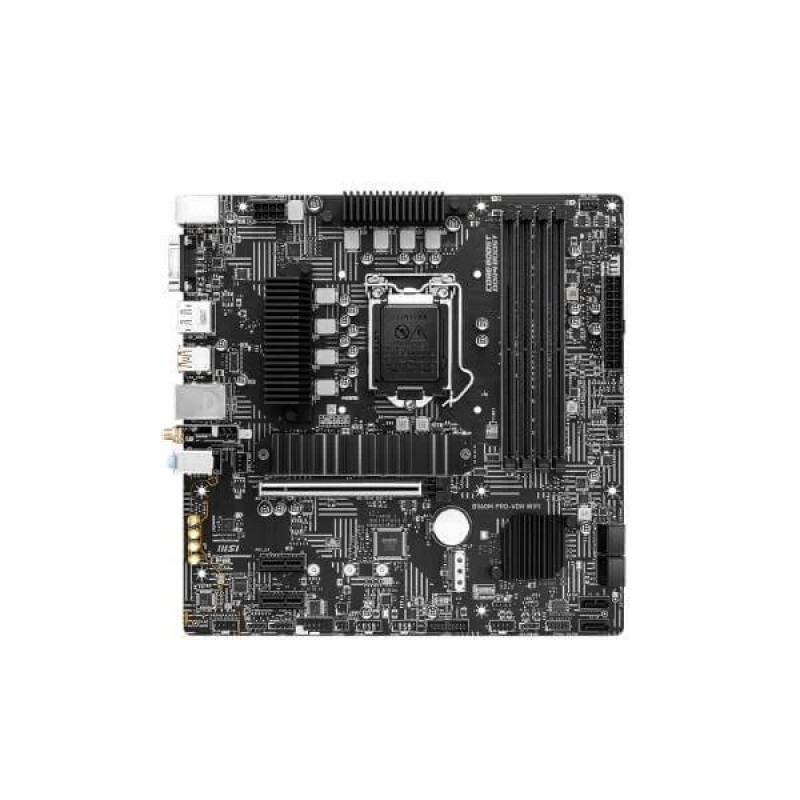

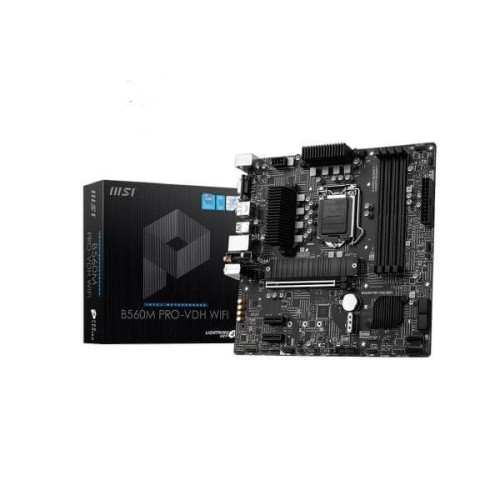

Msi B560M PRO-VDH Wifi

Msi B560M PRO-VDH Wifi
Msi B560M PRO-VDH Wifi
Msi B560M PRO-VDH Wifi
New FREE SHIPPING
Msi B560M PRO-VDH Wifi
Msi B560M PRO-VDH Wifi
Msi B560M PRO-VDH Wifi
Msi B560M PRO-VDH Wifi
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
Cash On Delivery Available*
(Subjected To Availability)
  • Stock: In Stock
  • Model: B560M-PRO-VDH-WIFI
  • SKU: TLG-003431
  • EAN: 4719072807849
Rs.11,699.00
Ex Tax: Rs.9,914.41

MSI Pro Series Intel 11th Gen Rocket Lake Micro-ATX Motherboard, The B560M VDH WiFi Features DDR4 5000 Memory Support, 2.5 Gigabit Gaming LAN, Intel WiFI 6, Audio Boost and Copper OZ PCB for Longer Life.

Features

B560M PRO-VDH WIFI

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications


CPU

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

MEMORY4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
  • 1x PCIe x16 slot (From CPU)
    • PCI_E1 (From CPU)
      • Support up to PCIe 4.0 for 11th Gen Intel® CPU
      • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
AUDIORealtek® AL897 Codec
7.1-Channel High Definition Audio
NETWORKING / LAN  / WiFI1x  Realtek® 8125B 2.5Gbps LAN controller

Intel® Wi-Fi 6 AX201
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • WiFi 6 pre certified
  • Supports Bluetooth® 5.1, FIPS, FISMA
STORAGE
  • 6x SATA 6Gb/s ports (From B560 chipset)
  • 2x M.2 slot (Key M)
    • M2_1 slot
      • Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
      • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot
      • Supports up to PCIe 3.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready1
  • Supports Intel® Smart Response Technology for Intel Core™ processors
USB Intel® B560 Chipset
  • 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
  • 4x USB 2.0 ports are available through the internal USB 2.0 connectors
FORM FACTOR Miro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS FEATURES1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning Controller Connector
LED FEATURE
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 4x EZ Debug LED

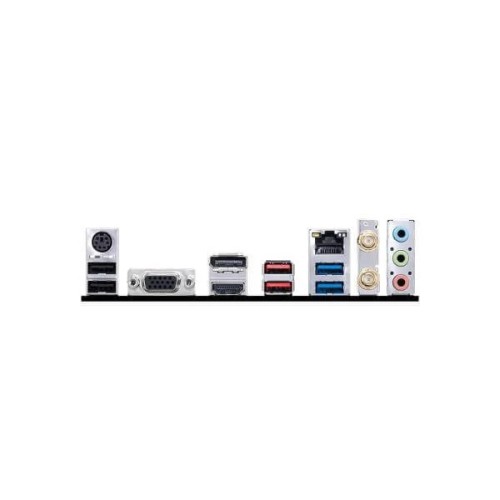

BACK PANEL CONNECTORS Keyboard / Mouse
VGA
DisplayPort
USB 3.2 Gen 2 10Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
Warranty3 Years
