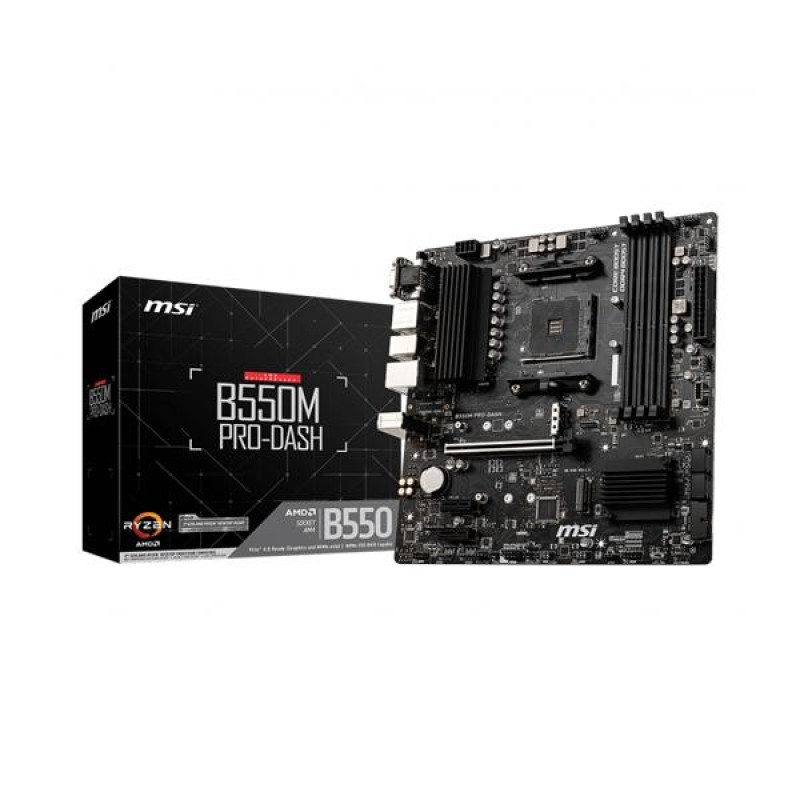

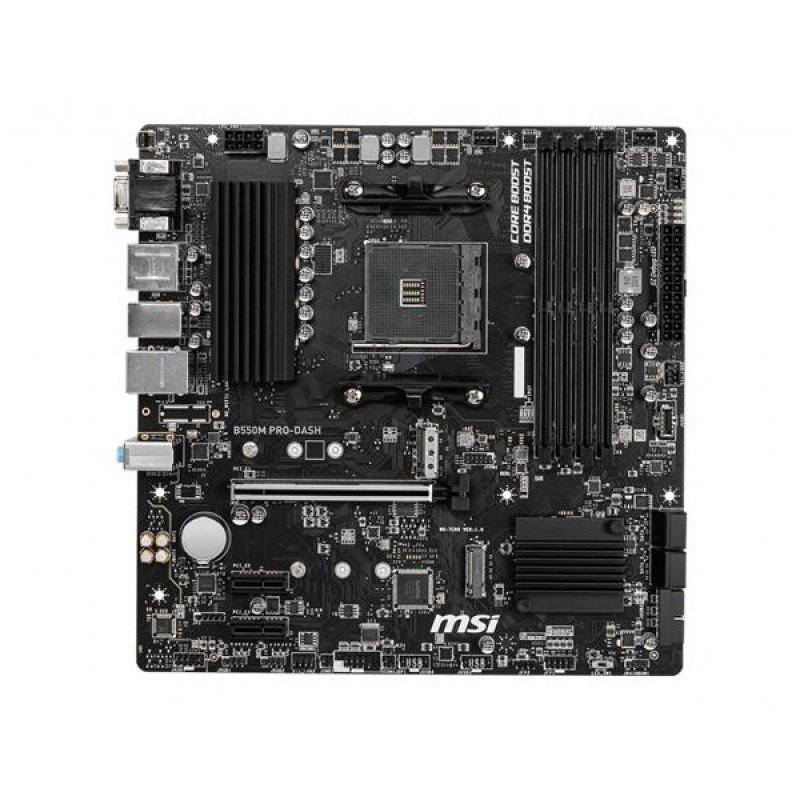

Msi B550m PRO-DASH Motherboard

AMD B550 (Ryzen AM4) micro-ATX Motherboard, With Dash Gigabit Ethernet, M.2 Slot, DDR4 4400 MHz, USB 3.2 Gen 1 Type C and A.

Features

B550M PRO-DASH

  • Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • DASH LAN: supports DMTF’s client management standard for secure out-of-band and remote management.
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Stablility: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Reliability: over 7000+ validation hours industrial level test
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.


Specifications:

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update


Chipset

AMD B550 Chipset


Memory

4x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ

2DPC 1R max speed 3866 MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory

Supports un-buffered memory


Expansion Slots

1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)

2x PCIe 3.0 x1 slots


Onboard Graphics

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz1 2

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.

Graphics specifications may vary depending on the CPU installed.


Storage

AMD B550 Chipset

4x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.


RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel


Audio

Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN 1x Realtek® RTL8111EPV 1Gbps LAN controller


Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

3x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

1x TPM module connector

1x Clear CMOS jumper


Back panel ports

VGA

USB 3.2 Gen 1 5Gbps Type-A

Keyboard / Mouse

LAN

Flash BIOS Button

DisplayPort

HDMI

USB 2.0

USB 3.2 Gen 1 5Gbps Type-A

HD Audio Connectors


Dimensions

Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)


MOUNTING

8 mounting holes


Warranty

3 Year

CPUSupports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
ChipsetAMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHZ
      • 1DPC 2R max speed 3733 MHZ
      • 2DPC 1R max speed 3866 MHZ
      • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
Expansion Slots
  • 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
  • 2x PCIe 3.0 x1 slots
Onboard Graphics
  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz1 2
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Storage

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN1x Realtek® RTL8111EPV 1Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

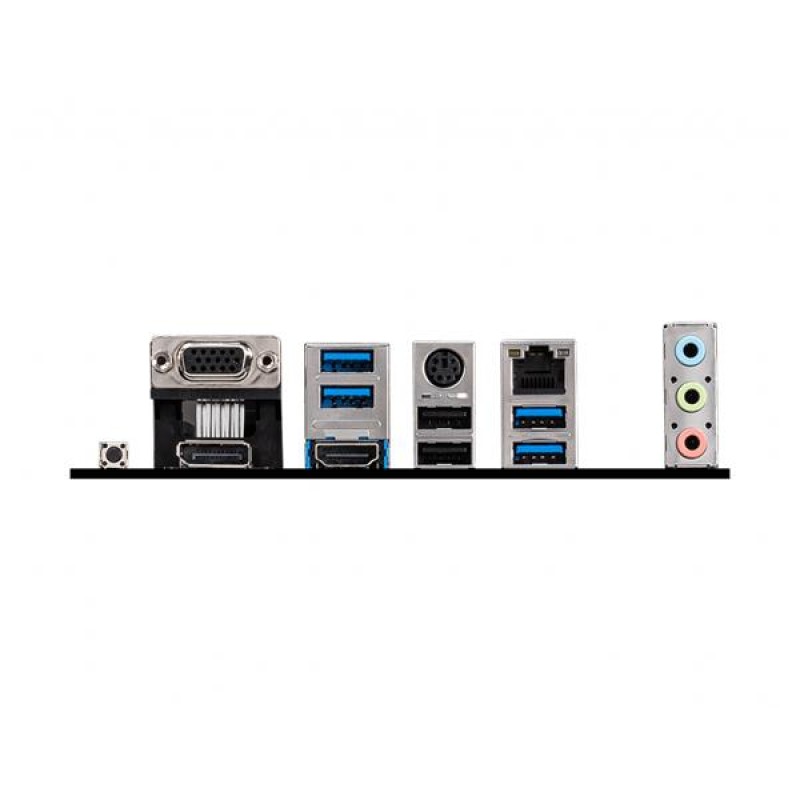

Back panel ports
  1. VGA
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. Keyboard / Mouse
  4. LAN
  5. Flash BIOS Button
  6. DisplayPort
  7. HDMI
  8. USB 2.0
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. HD Audio Connectors
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING8 mounting holes
Warranty3 Year
