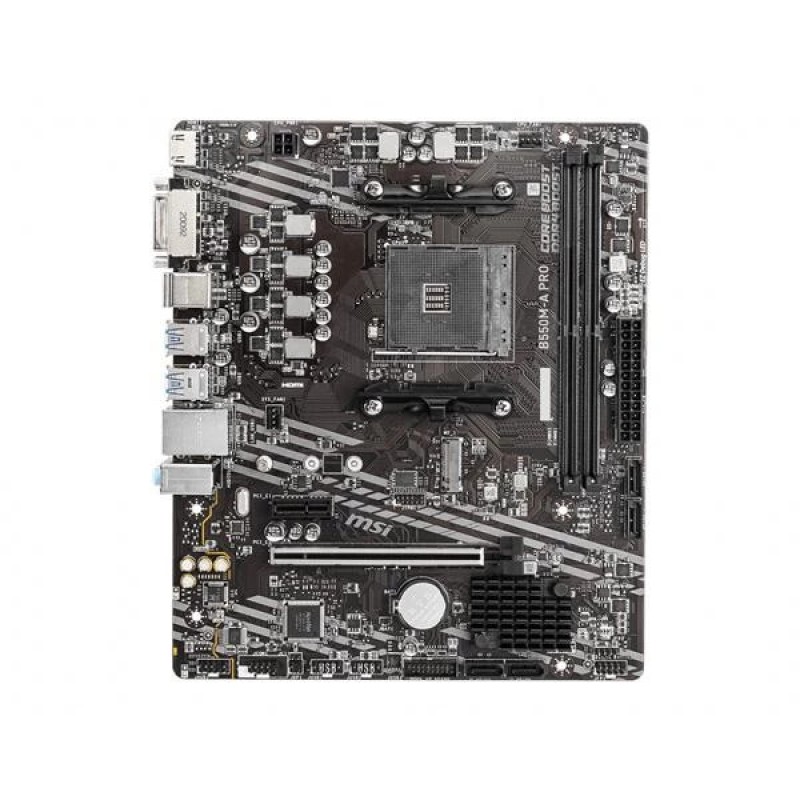

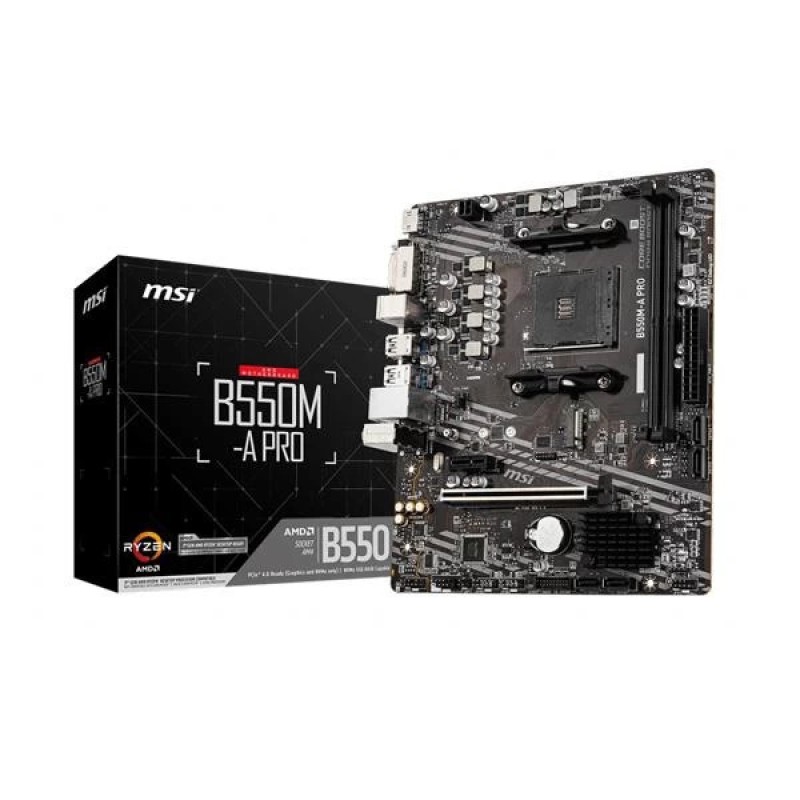

Msi B550M-A-PRO Motherboard

Msi B550M-A-PRO Motherboard

AMD B550 (Ryzen AM4) micro-ATX motherboard with M.2 support, MSI B550M-A PRO is equipped with DDR4 4600MHz, M.2 Slot, USB 3.2 Gen 1 ports Type C, SATA 6 Gbps

Important Notice:

• BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
• The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
• For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

B550M-A PRO

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Supports DDR4 Memory, up to 4600(OC) MHz
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
• Core Boost: With premium layout and digital power design to support more cores and provide better performance
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
• 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
• Audio Boost: Reward your ears with studio grade sound quality
• Dragon Center: A brand new software that integrates all MSI exclusive tools with a user-friendly interface.

Specifications

CPU: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Chipset: AMD B550 Chipset

Memory: 2x DDR4 memory slots, support up to 64GB

Supports:  DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE, 1DPC 1R max speed 4600 MHz, 1DPC 2R max speed 3866 MHz Dual channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory (non-ECC mode), Supports un-buffered memory

Expansion Slot: 1x PCIe 3.0 x1 slot, 1x PCIe 4.0/3.0 x16 slot. The supported specification depends on the installed processor.

Onboard Graphics

Storage

AMD B550 Chipset

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M) (from AMD Processor)
  • Supports PCIe 4.0/ 3.0
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

1. The supported specification depends on the installed processor.

RAID

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio: Realtek® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN: 1x Realtek® RTL8111H Gigabit LAN controller

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1xTPM module connector
• 1x Clear CMOS jumper

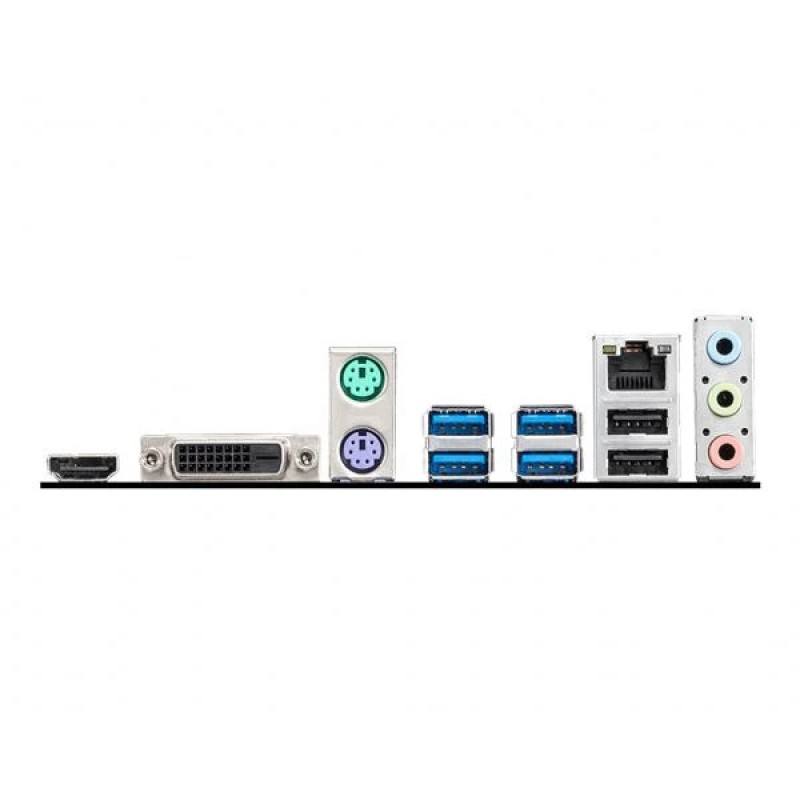

Back panel ports

Dimensions

• Micro-ATX Form Factor
• 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

MOUNTING: 8 mounting holes

Warranty: 3 Years
