Msi MAG B550 Torpedo (MAG-B550-TORPEDO):824142233856
Menu
Your Cart

Msi MAG B550 Torpedo

Msi MAG B550 Torpedo
Msi MAG B550 Torpedo
Msi MAG B550 Torpedo
New FREE SHIPPING
Msi MAG B550 Torpedo
Msi MAG B550 Torpedo
Msi MAG B550 Torpedo
Msi MAG B550 Torpedo
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
Cash On Delivery Available*
(Subjected To Availability)
  • Stock: In Stock
  • Model: MAG-B550-TORPEDO
  • SKU: TLG-003410
  • UPC: 824142233856
  • EAN: 824142233856
Rs.15,349.00
Ex Tax: Rs.13,007.63

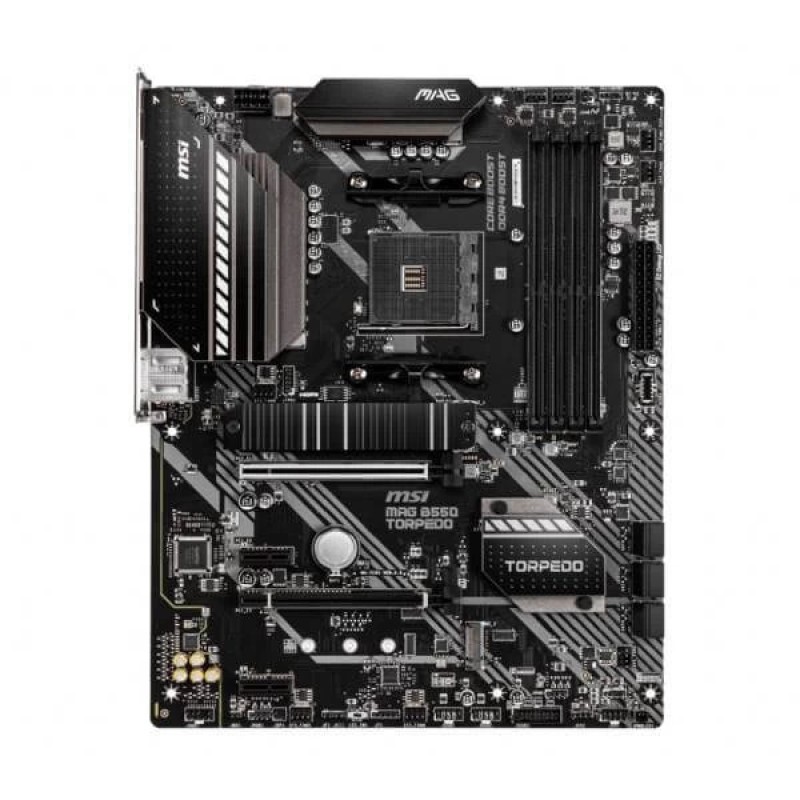

MSI MAG Series B550 Torpedo Motherboard Featuring AMD AM4 Ryzen 5000 Series Support, 13 Phase Digtal VRM, 2.5 Gigabit Ethernet, And Shielded M.2 Slots along With 2 oz Copper PCB.

Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

Features

MAG B550 TORPEDO

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • Latest Network Solution: Onboard 2.5G LAN with LAN Manager deliver the best online experience without lag.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™

Specifications

ProcessorSupports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
CHIPSETAMD B550 Chipset
MEMORY4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE
1DPC 1R max speed 4866 MHZ
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
  • 2x PCIe 3.0 x1 slots
  1. PCIe specifications may vary depending on the CPU installed.
  2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. Please refer to page 29 for details.
MULTI-GPU
  • Supports 2-Way AMD CrossFire™ Technology
ONBOARD GRAPHICS
  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
    Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • Maximum shared memory of 16GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
STORAGE

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. PCIe specifications may vary depending on the CPU installed.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

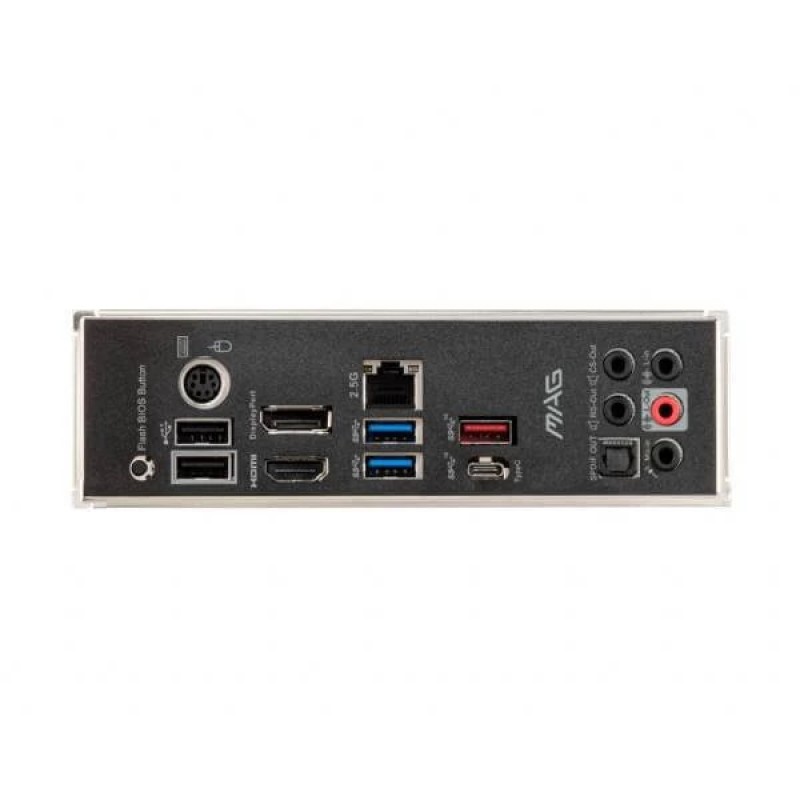

BACK PANEL PORTS
  • PS/2 Combo Port
  • DisplayPort
  • 2.5G LAN Port
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0 Port
  • HDMI Port
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • Optical S/PDIF OUT
DIMENSIONS
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING9 mounting holes
OPERATING SYSTEMSupport for Windows® 10 64-bit
Warranty3 Years
