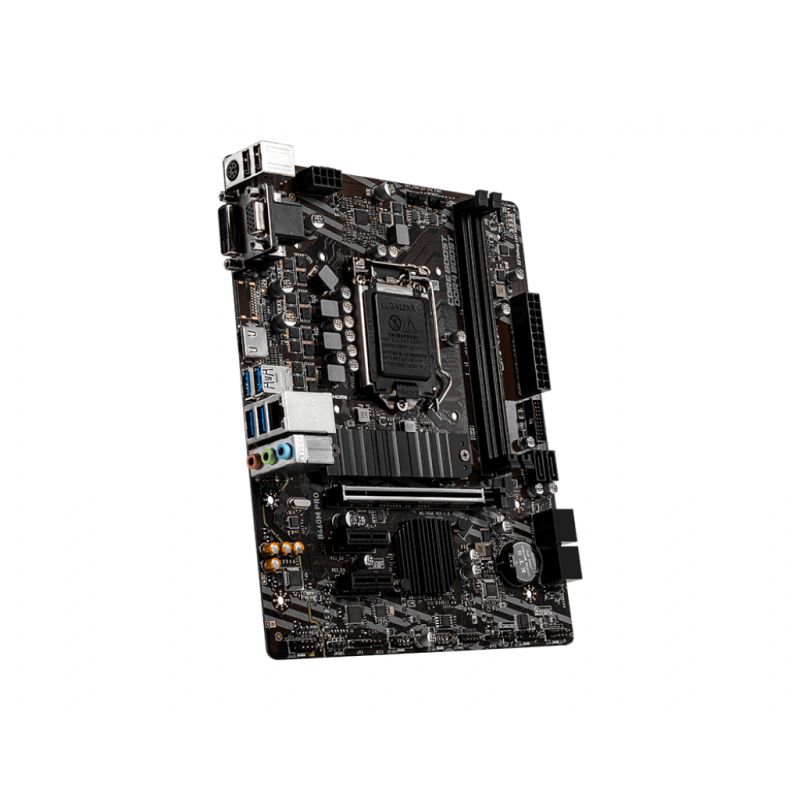

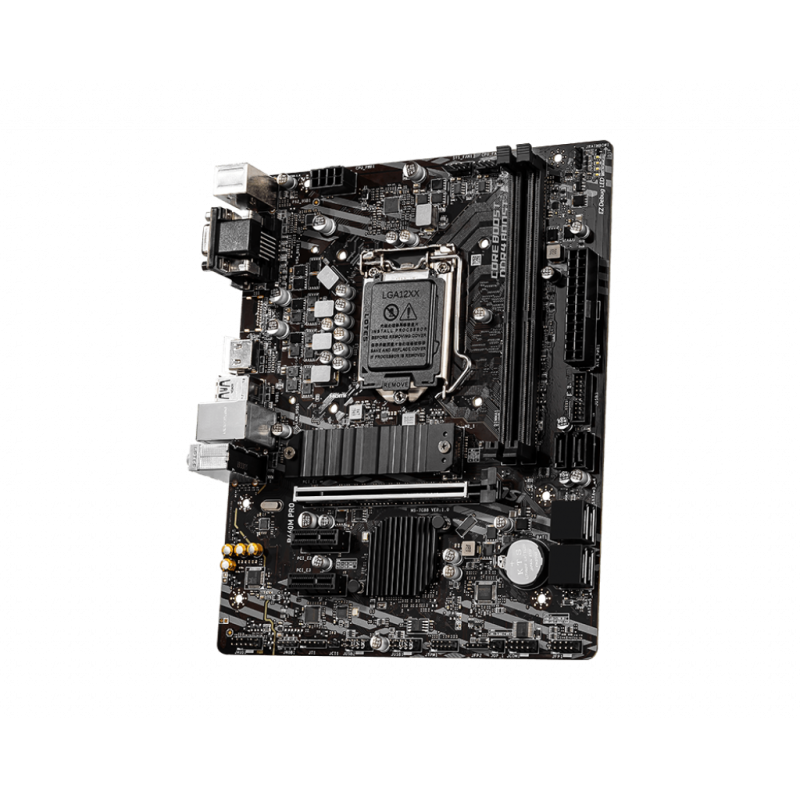

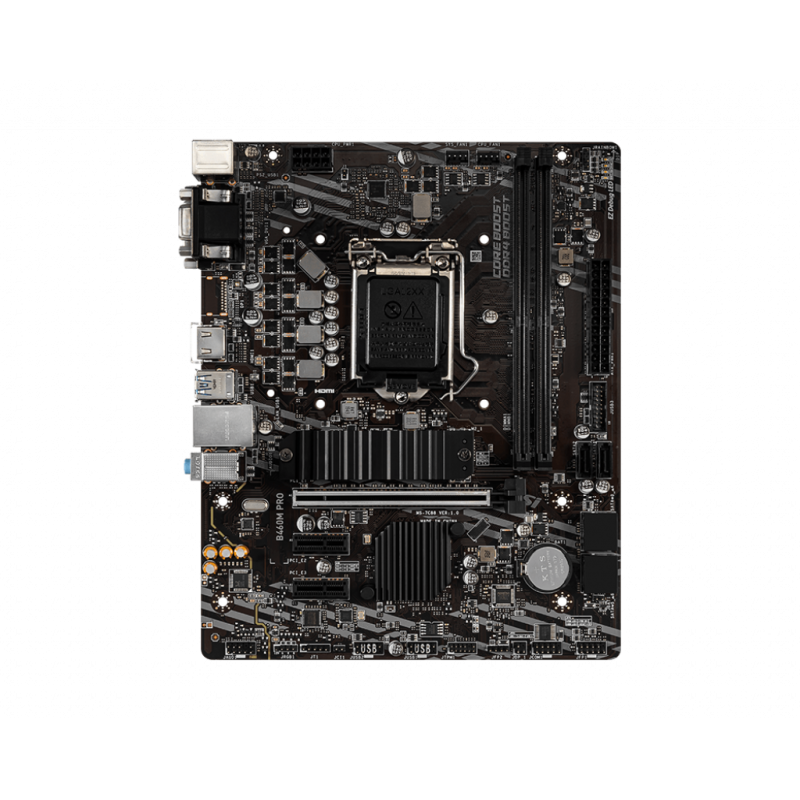

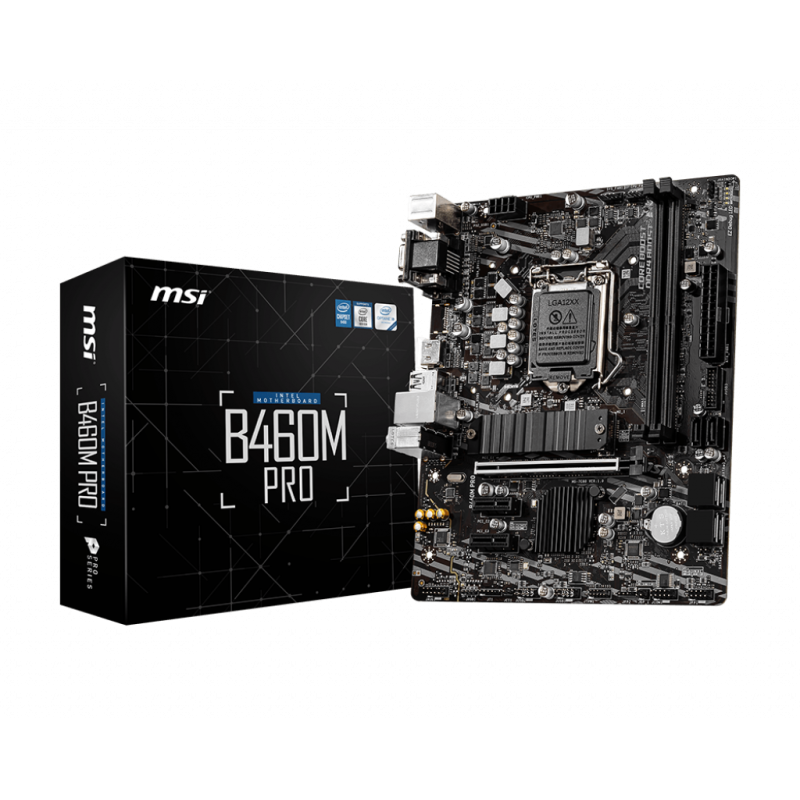

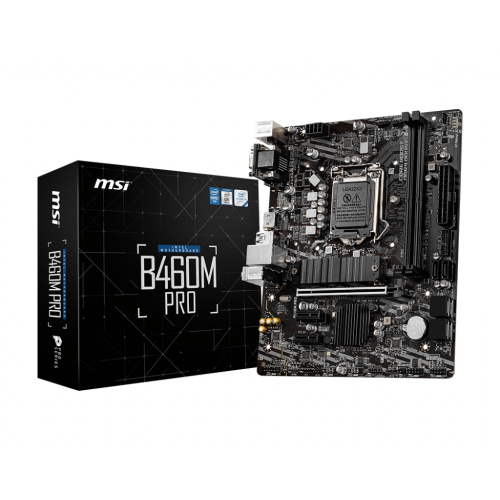

Msi B460M Pro

 Msi B460M Pro
 Msi B460M Pro
 Msi B460M Pro
 Msi B460M Pro
 Msi B460M Pro
FREE SHIPPING Out Of Stock
 Msi B460M Pro
 Msi B460M Pro
 Msi B460M Pro
 Msi B460M Pro
 Msi B460M Pro
Msi B460M Pro
This product qualifies for free shipping
This Product Is Eligible For Free Shipping In India
 Msi B460M Pro series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboar..
  • Stock: Out Of Stock
  • Model: B460M-PRO
Product Views: 135
Rs.8,999.00
Ex Tax: Rs.7,626.27

 Msi B460M Pro series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications


CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
ChipsetIntel® B460 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Intel® Core™ i7/i9
    • Support DDR4-2933 Memory (Max.)
  • Intel® Core™ i5 (Below)
    • Supports DDR4-2666 Memory (Max.)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 2x PCIe x1 slots (from PCH)
Onboard Graphics

  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
StorageIntel® B460 Chipset
  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • Intel® Optane Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core processors
RAIDIntel® B460 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USBIntel® B460 Chipset
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel,4 ports available through the internal USB 2.0 connectors)
AudioRealtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
LAN1x Realtek® 8111H Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 4x EZ Debug LED

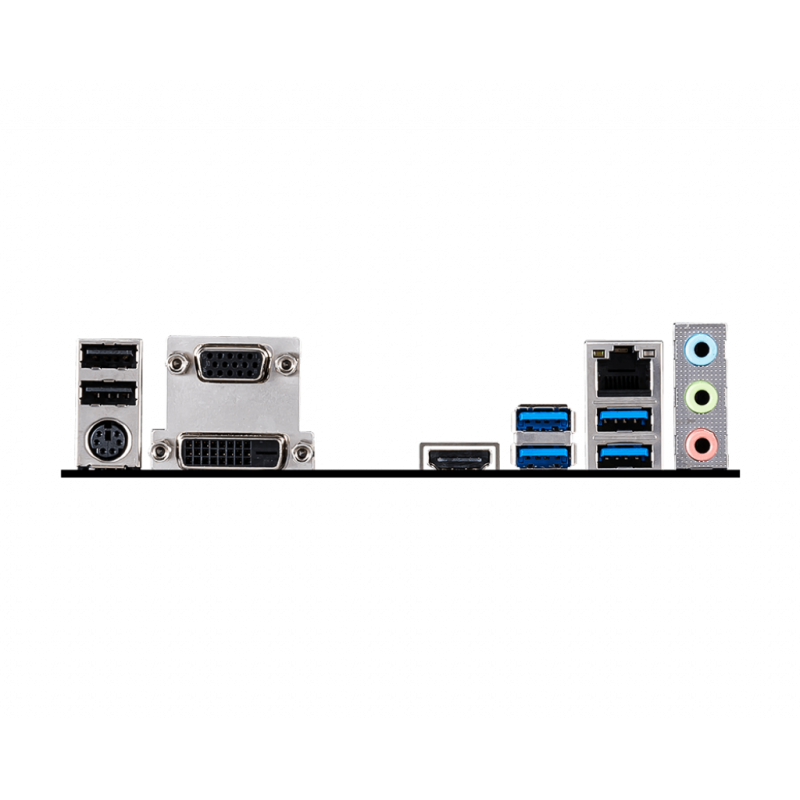

Back panel ports
  1. USB 2.0 Type-A ports
  2. VGA port
  3. LAN port
  4. PS/2 keyboard/ mouse combo port
  5. DVI-D port
  6. HDMI port
  7. USB 3.2 Gen1 5Gbps Type-A ports
  8. USB 3.2 Gen1 5Gbps Type-A ports
  9. Audio jacks
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty3 Years
