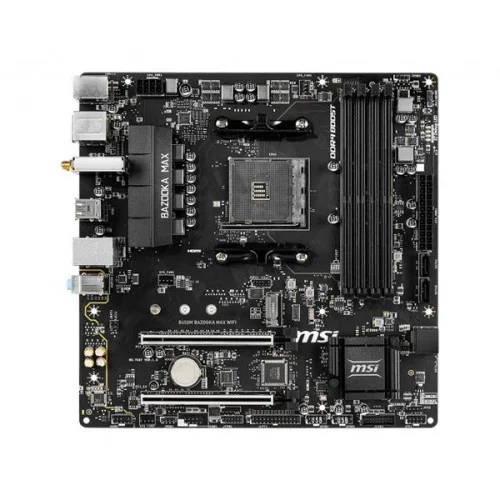

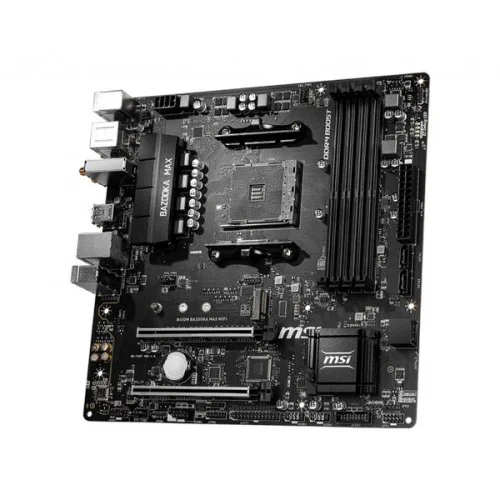

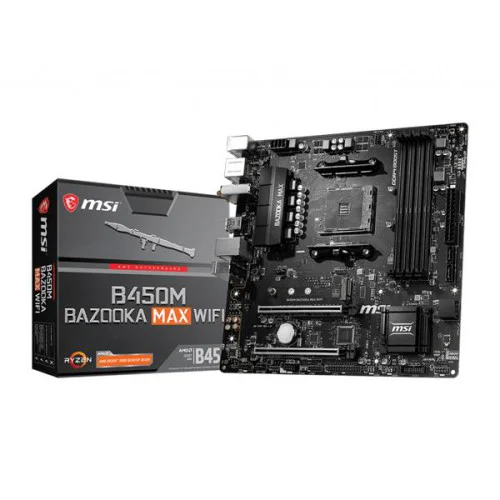

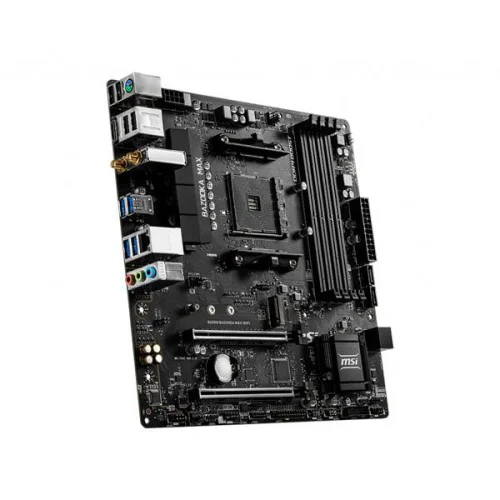

Msi B450M Bazooka Max Wi-Fi

Msi B450M Bazooka Max Wi-Fi

Features

Military style with armor design for a strong gaming foundation, Core Boost, DDR4 Boost, Audio Boost, PCI-E Steel Armor, Turbo M.2 and USB 3.2 Gen1 connector

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 4133(OC) MHz
• Lightning Fast Game experience: 1x TURBO M.2, Store MI technology
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
• MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™

Specifications:

CPU

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Chipset

AMD® B450 Chipset

Memory

4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

For AMD Ryzen Gen3 (R5/R7/R9)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

For AMD Other CPU

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Expansion Slot

1 x PCIe 3.0 x16 slot (PCI_E1)

Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors

Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors

Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 2.0 x16 slot (PCI_E2, supports x4 mode)

Storage

4 x SATA 6Gb/s ports

1 x M.2 slots (Key M)1

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics)

Supports 2242/ 2260/ 2280 storage devices

RAID

AMD B450 Chipset

Supports RAID 0, RAID 1 and RAID 10 for B450 Chipset SATA storage devices

USB

AMD B450 Chipset

2 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 ports available through the internal USB connector)

8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD PROCESSOR

4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel)

Audio

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

WIFI and Bluetooth

Wi-Fi/Bluetooth expansion module with Intel Single Band Wireless-AC 3168 chip

Supports Wi-Fi 802.11 a/b/g/n/ac, single band (2.4GHz, 5GHz) up to 433 Mbps speed.

Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

1x M.2_2 Socket with E key (Wi-Fi mode)

LAN

1x Realtek® 8111H Gigabit LAN controller

Internal connectors

1 x 24-pin ATX power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x M.2 slot (Key M)

1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU Fan connector

2 x 4-pin system Fan connectors

1 x Front panel audio connector

2 x System panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Parallel port connector

1 x Serial port connector

2 x RGB LED connectors

2 x ARGB LED connectors

1 x Clear CMOS jumper

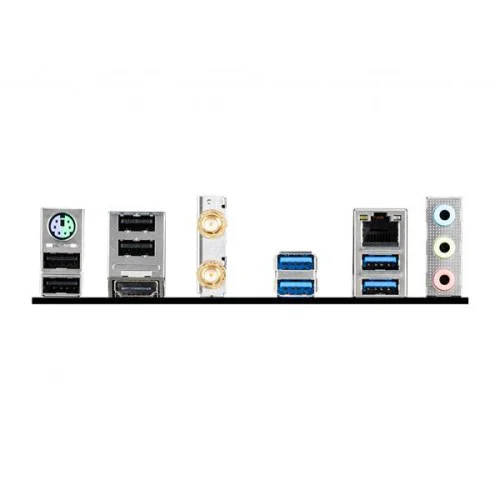

Back panel ports

PS/2 Combo Port

USB 2.0 Ports

LAN Port

HD Audio Connectors

USB 2.0 Ports

HDMI Port

Intel Wi-Fi

USB 3.2 Gen 1 Type A

USB 3.2 Gen 1 Type A

Form Factor

mATX Form Factor

9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

Mounting Holes 8 mounting holes

1x 128 Mb flash

UEFI AMI BIOS

ACPI 6.2, SM BIOS 3.2 ∙Multi-language

Operating System

Support for Windows® 10 64-bit

Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty

3 Years

CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD® B450 Chipset
Memory	4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required. Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)
Expansion Slot	1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 2.0 x16 slot (PCI_E2, supports x4 mode)
Storage	4 x SATA 6Gb/s ports 1 x M.2 slots (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) Supports 2242/ 2260/ 2280 storage devices
RAID	AMD B450 Chipset Supports RAID 0, RAID 1 and RAID 10 for B450 Chipset SATA storage devices
USB	AMD B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 ports available through the internal USB connector) 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors) AMD PROCESSOR 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel)
Audio	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
WIFI and Bluetooth	Wi-Fi/Bluetooth expansion module with Intel Single Band Wireless-AC 3168 chip Supports Wi-Fi 802.11 a/b/g/n/ac, single band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 1x M.2_2 Socket with E key (Wi-Fi mode)
LAN	1x Realtek® 8111H Gigabit LAN controller
Internal connectors	1 x 24-pin ATX power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 slot (Key M) 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU Fan connector 2 x 4-pin system Fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Parallel port connector 1 x Serial port connector 2 x RGB LED connectors 2 x ARGB LED connectors 1 x Clear CMOS jumper
Back panel ports	PS/2 Combo Port USB 2.0 Ports LAN Port HD Audio Connectors USB 2.0 Ports HDMI Port Intel Wi-Fi USB 3.2 Gen 1 Type A USB 3.2 Gen 1 Type A
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
Mounting Holes	8 mounting holes
BIOS Features	1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Operating System	Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty	3 Years
