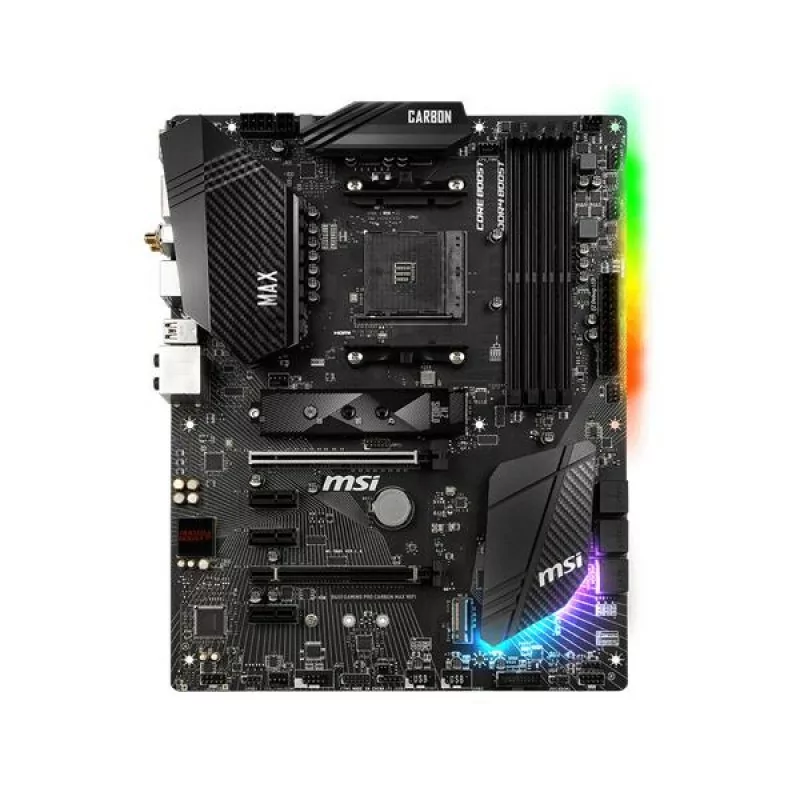

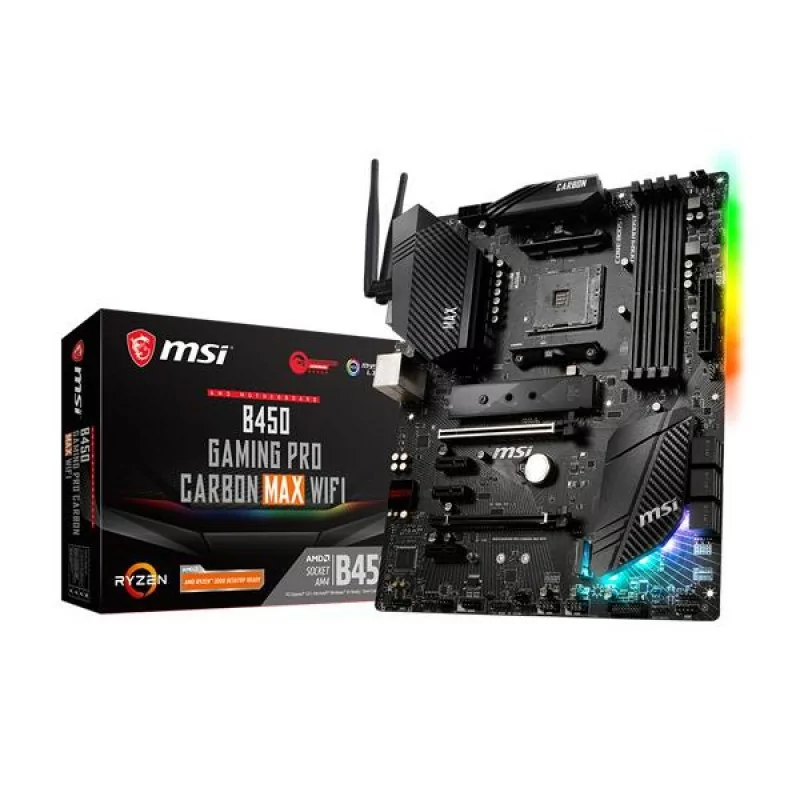

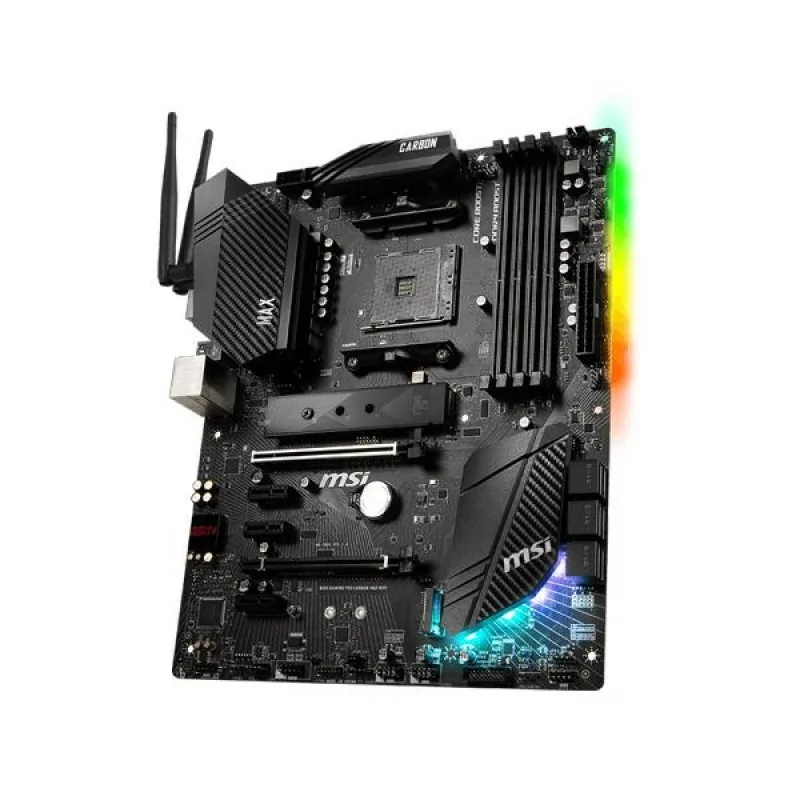

Msi B450 Gaming Pro Carbon Max Wi-Fi

Msi B450 Gaming Pro Carbon Max Wi-Fi

Features

Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield, Wi-Fi AC Solution, AMD Turbo USB 3.2 Gen2

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 4133(OC) MHz
• Mystic Light and Mystic Light Sync: 16.8 million colors / 17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization.
• Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.2 GEN2
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
• DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
• GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.

Specifications

• PROCESSOR- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™

        with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4

• CHIPSET- AMD® B450 Chipset
• MEMORY-

            4 x DDR4 memory slots, support up to 128GB

            Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

           For AMD Ryzen Gen3 (R5/R7/R9)

           Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/

            3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

• For AMD Other CPU-

        Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

        Dual channel memory architecture

        Supports non-ECC UDIMM memory

        Supports ECC UDIMM memory (non-ECC mode)

• SLOTS-

        1 x PCIe 3.0 x16 slot (PCI_E1)

        Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors

        Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors

        Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors

        1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2

        3 x PCIe 2.0 x1 slots2

        PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

        PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot.

        MULTI-GPU Ryzen™ Desktop Processors

        Supports 2-Way AMD® CrossFire™ Technology

• Storage

    AMD® B450 Chipset

    4 x SATA 6Gb/s ports1

    1 x M.2 slot (M2_2, Key M)1

    Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

    AMD® CPU

    1 X M.2 Slot (M2_1, Key M)1

    Supports PCIe 3.0 X4 (AMD® Ryzen 1st And 2nd Generation/ Ryzen™ With Radeon™

    Vega Graphics) OrPCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)

    and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

    2 x SATA 6Gb/s ports1

    PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailablewhen installing M.2 PCIe SSD in M2_2 slot.

    SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.

• RAID

    Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

    Supports RAID 0 and RAID 1 for M.2 NVMe RAID

    ONBOARD GRAPHICS

    1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz*1

    1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2

• USB

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

• AUDIO

Realtek® ALC1220 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

• WIFI & BLUETOOTH

Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.

Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2, 5.0

1 x M2_3 slot with E key (Wi-Fi mode)

Only support windows 10 64-bit

• LAN

1 x Intel® I211AT Gigabit LAN controller

• INTERNAL CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump-fan connector

4 x 4-pin system fan connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Serial Port connector

1 x Clear CMOS jumper

1 x 2pin LED Power connector

2 x 5050 RGB LED strip 12V connectors (JRGB1~2)

1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)

1 x CORSAIR connector (JCORSAIR1)

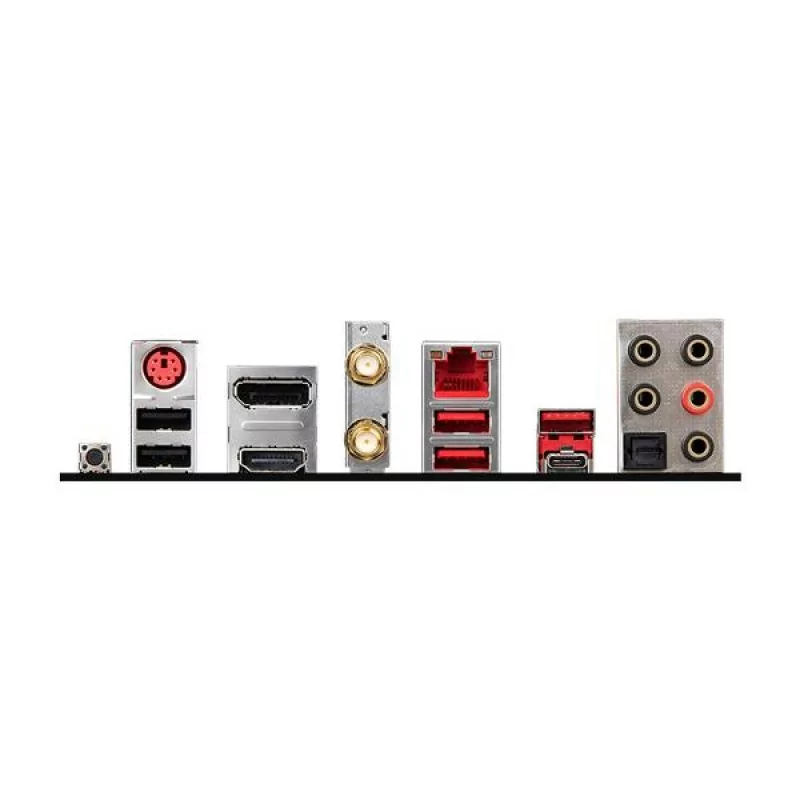

• BACK PANEL PORTS

PS/2 Combo Port

DisplayPort

Wi-Fi / Bluetooth

LAN

HD Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen1

USB 3.2 Gen2 (Type A+C)

Optical S/PDIF OUT

• DIMENSIONS

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ATX Form Factor

• MOUNTING

9 mounting holes

• OPERATING SYSTEM

Support for Windows® 10 64-bit

Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

• Warranty 3 Years
