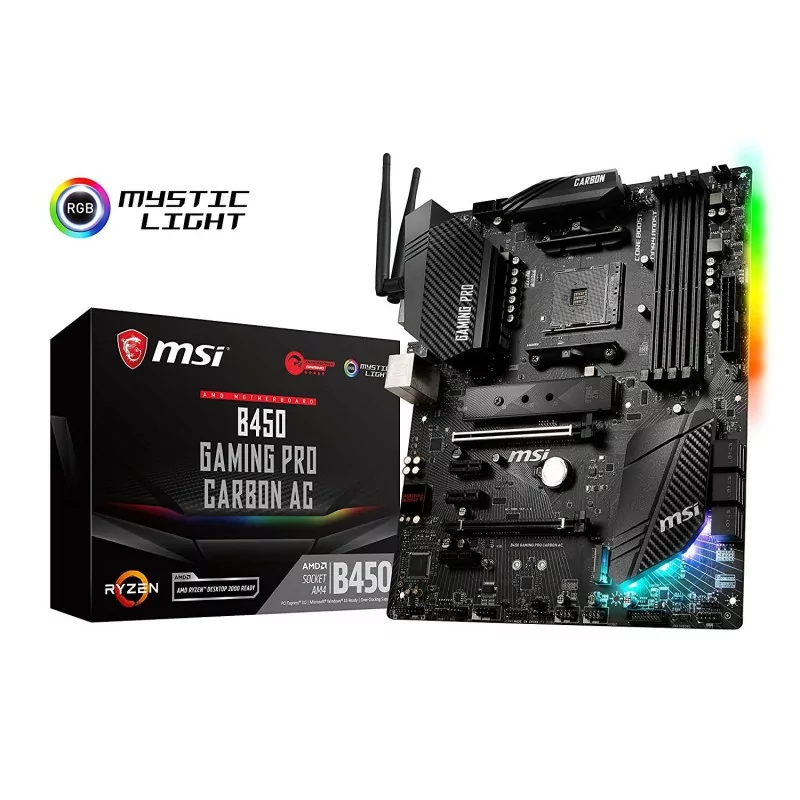

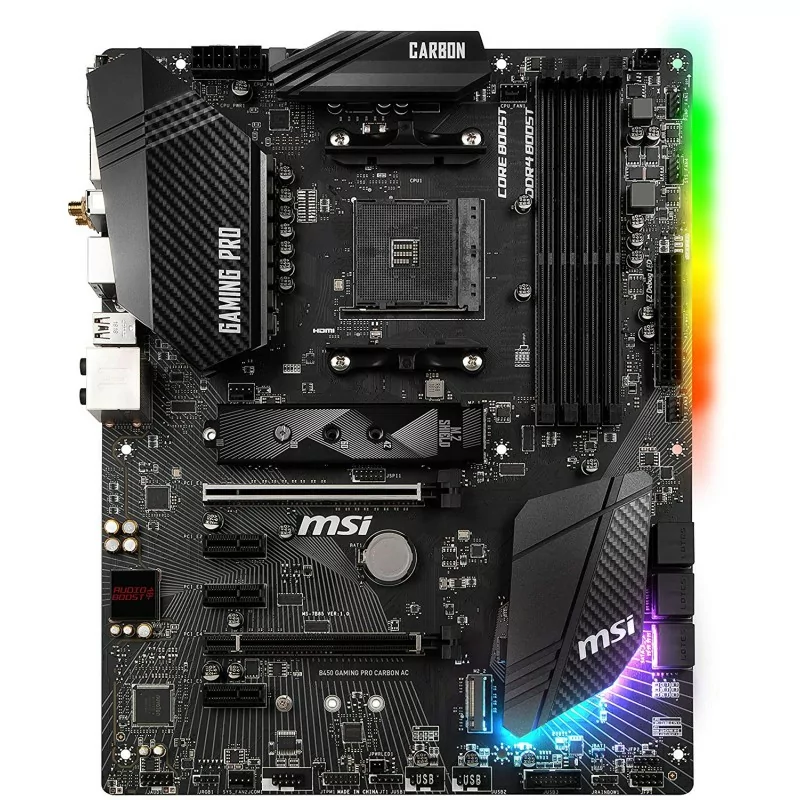

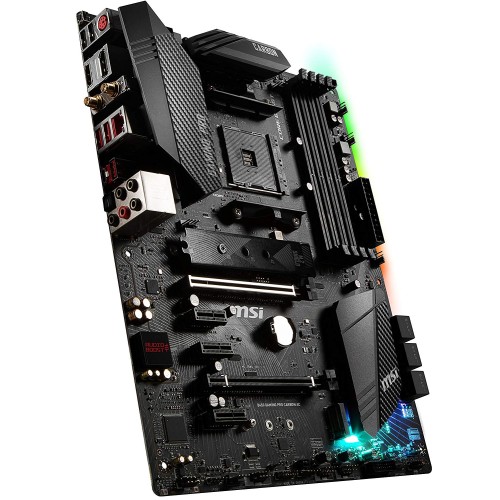

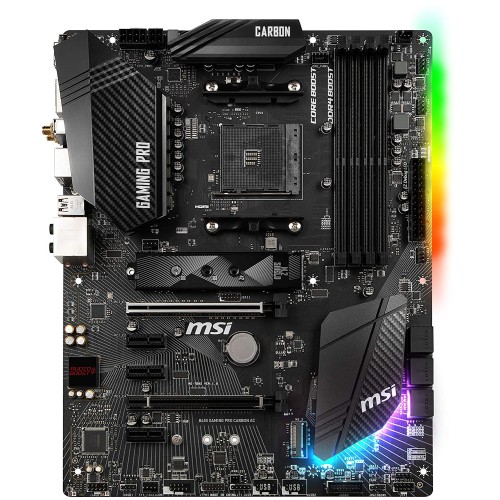

Msi B450 GAMING PRO CARBON AC (wifi) Motherboard

Msi B450 Gaming Pro Carbon Ac is an all-time favorite B450 motherboard due to its support for up to 3rd Gen Ryzen Processors. It is a powerful tech with 3.1 Gen 2 USB and 3466 oc Memory Support. That colorful RGB with USB Bios Flash makes it a steal deal.

 Features

• Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
• Supports DDR4-3466(OC) Memory
• Mystic Light and Mystic Light Sync: 16.8 million colors / 17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization.
• Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.1 GEN2
• Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Extended Heatsink Design
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
• GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with the lowest latency and bandwidth management.
• MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
• BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card.
• In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
• GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players

Specifications

• PROCESSOR

• Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4

• CHIPSET

• AMD® B450 Chipset

• MEMORY

• 4 x DDR4 memory slots, support up to 64GB1
• Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
• Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
• Dual-channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)

• SLOTS

• 1 x PCIe 3.0 x16 slot (PCI_E1)
• Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
• Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
• Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2
• 3 x PCIe 2.0 x1 slots2
• PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
• PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot.

• MULTI-GPU

• Ryzen™ Desktop Processors
• Supports 2-Way AMD® CrossFire™ Technology

• STORAGE

• AMD® B450 Chipset
• 4 x SATA 6Gb/s ports1
• 1 x M.2 slot (M2_2, Key M)1
• Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
• AMD® CPU
• 1 x M.2 slot (M2_1, Key M)1
• Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
• 2 x SATA 6Gb/s ports1
• PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
• SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.

• RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe RAID

• ONBOARD GRAPHICS

• 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz*1
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2
• Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Maximum shared memory of 2048 MB

• USB

• AMD® B450 Chipset
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
• AMD® CPU
• 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

• AUDIO

• Realtek® ALC1220 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• WIFI & BLUETOOTH

• Intel® Dual Band Wireless-AC 92601
• Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.
• Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2, 5.0
• 1 x M2_3 slot with E key (Wi-Fi mode)
• Only support windows 10 64-bit

• LAN

• 1 x Intel® I211AT Gigabit LAN controller
• INTERNAL CONNECTORS
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Serial Port connector
• 1 x Clear CMOS jumper
• 1 x 2pin LED Power connector
• 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
• 1 x CORSAIR connector (JCORSAIR1)

• BACK PANEL PORTS

• PS/2 Combo Port
• DisplayPort
• Wi-Fi / Bluetooth
• LAN Port
• HD Audio Connectors
• BIOS Flashback Button
• USB 2.0 Port
• HDMI Port
• USB 3.1 Gen1
• USB 3.1 Gen2 Type-A + C
• Optical S/PDIF OUT

• DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
• MOUNTING 9 mounting holes

• OPERATING SYSTEM

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit
• * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty 3 Years
