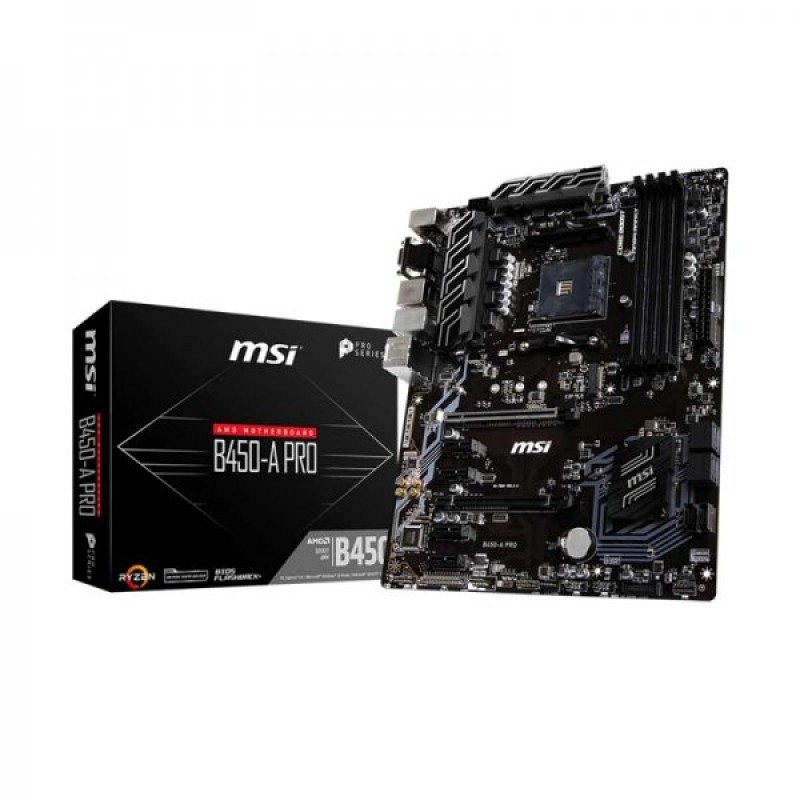

Msi B450-A PRO Motherboard

Features

• Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
• Supports DDR4-3466(OC) Memory
• Audio Boost: Reward your ears with studio grade sound quality.
• DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
• Turbo M.2: Delivering Speeds Up to 32Gb/s.
• EZ Debug LED: Easiest way to troubleshoot.
• PCI-E Steel Aromor: Protecting VGA cards against bending for better performance, stability and strength.
• BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Specifications:

Model

B450M-A-PRO-MAX

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Chipset

AMD® B450 Chipset

Memory

2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.

Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)

For AMD Ryzen Gen3 (R5/R7/R9)

2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

For AMD Other CPU

2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Dual channel memory architecture

Supports ECC UDIMM memory (non-ECC mode)

Support non-ECC UDIMM memory

Slots

1 x PCIe 3.0 x16 slot

Supports x16 speed

1st, 2nd and 3rd Gen AMD Ryzen™

Supports x8 speed

Ryzen™ with Radeon™ Vega Graphics

2nd Gen AMD Ryzen™ with Radeon™ Graphics

A-series

Athlon™ X4

Supports x4 speed

AMD® Athlon™ with Radeon™ Vega Graphics

PCIe 2.0 x1 slot

Onboard Graphics

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2

1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2

Only support when using the processor with Graphicss

Maximum shared memory of 2048 MB

Storage

AMD® B450 Chipset

4 x SATA 6Gb/s ports

Supports RAID 0, RAID1 and RAID 10

1x M.2 slot (Key M)

Supports PCIe 3.0 x4 and SATA 6Gb/s

1st, 2nd and 3rd Gen AMD Ryzen™

Ryzen™ with Radeon™ Vega Graphics

2nd Gen AMD Ryzen™ with Radeon™ Graphics

Supports PCIe 3.0 x2 and SATA 6Gb/s

AMD® Athlon™ with Radeon™ Vega Graphics

A-series

Athlon™ X4

Supports 2242/2280/22110 storage devices

USB

AMD® B450 Chipset

6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

Internal Connectors

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x Front panel connectors

1x TPM module connector

1x Chassis Intrusion connector

1x Serial port connector

1x Clear CMOS jumper

Back Panel Ports

Mouse

DVI-D Port

USB 3.2 Gen1

LAN Port

Keyboard

HDMI Port

USB 2.0 Ports

HD Audio Connectors

Dimensions

9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)

m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit

Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty

3 Years
