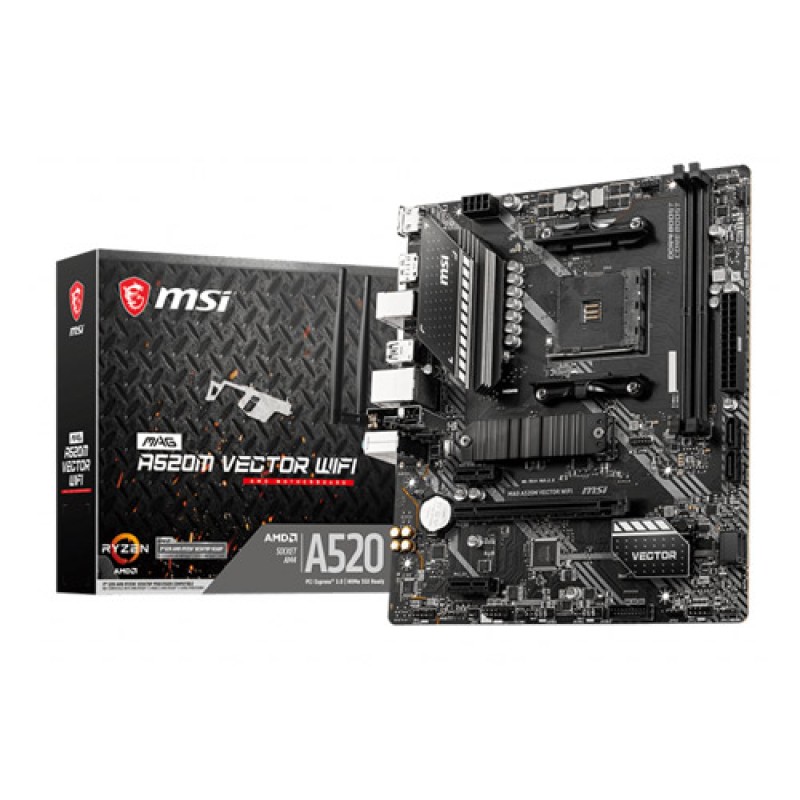

Msi A520m Vector Wifi Motherboard

Msi A520m Vector Wifi Motherboard

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Supports DDR4 Memory, up to 4600(OC) MHz

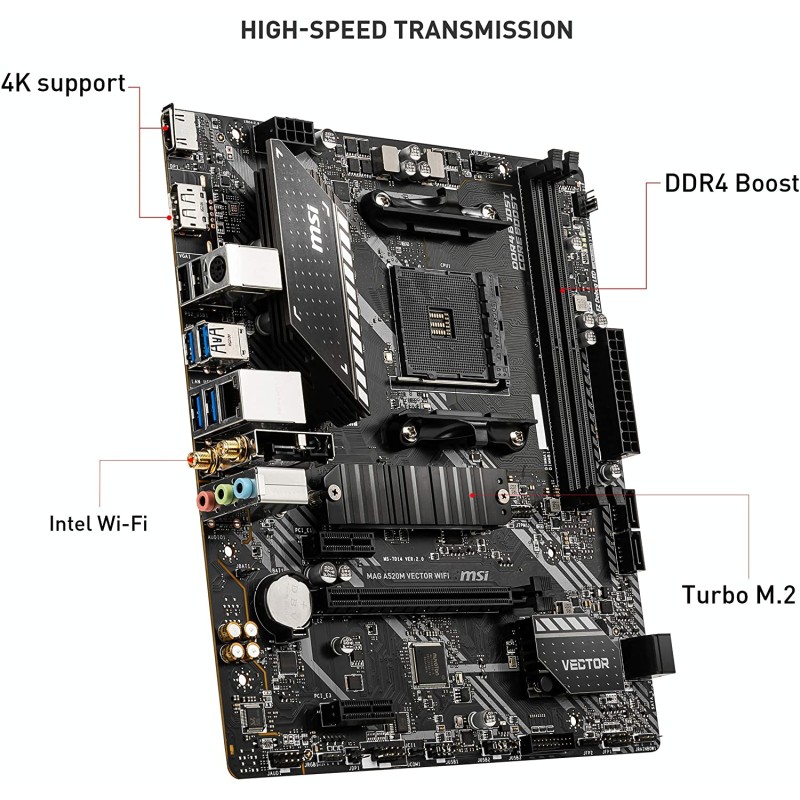

• Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
• Core Boost: With premium layout and digital power design to support more cores and provide better performance
• 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
• Audio Boost: Reward your ears with studio grade sound quality
• Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

NEXT-GEN INTEL® WI-FI AC & BLUETOOTH
This next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.

Specification :

SOCKET- AMD Socket AM4

CPU (MAX SUPPORT)- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors

CHIPSET- AMD® A520 Chipset

DDR4 MEMORY- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

                                  Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode

MEMORY CHANNEL- Dual

DIMM SLOTS- 2

MAX MEMORY (GB)- 64

PCI-E X16- 1

PCI-E GEN- Gen3

PCI-E X1- 2

SATAIII- 4

M.2 SLOT- 1

RAID- 0/1/10

TPM (HEADER)- 1

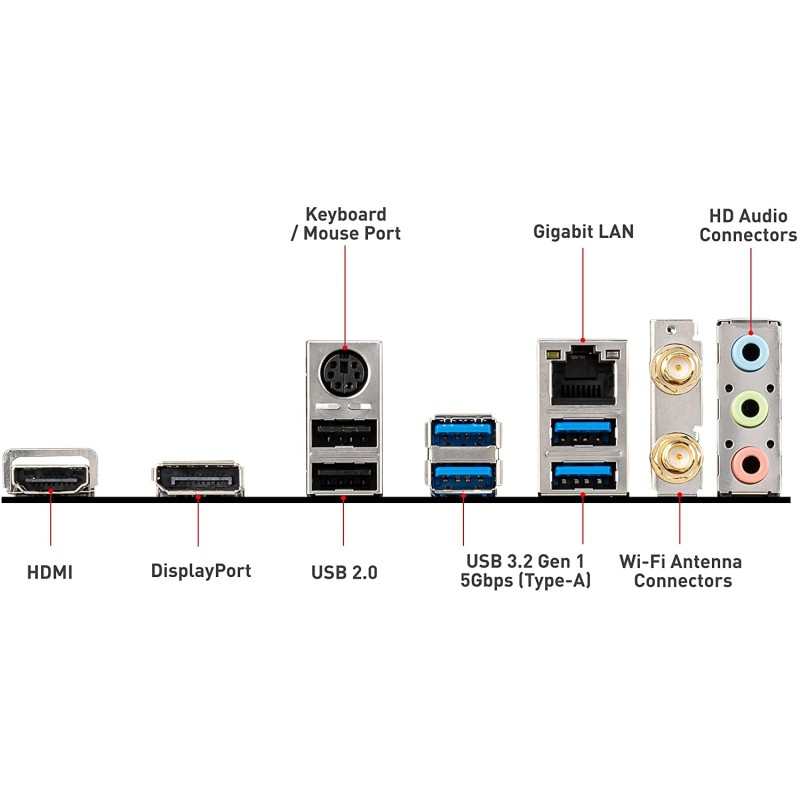

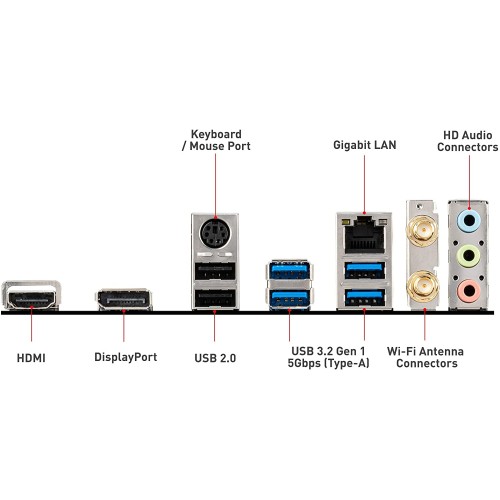

LAN- 1x Realtek® RTL8111H Gigabit LAN

USB 3.2 PORTS (FRONT)- 2(Gen 1, Type A)

USB 3.2 PORTS (REAR)- 4(Gen 1, Type A)

USB 2.0 PORTS (FRONT)- 4

USB 2.0 PORTS (REAR)- 2(Type A)

SERIAL PORTS(FRONT)- 1

AUDIO PORTS (REAR)- Realtek® ALC892/ALC897 Codec

DISPLAYPORT- 1

HDMI- 1

DIRECTX- 12

FORM FACTOR- M-ATX

OPERATING SYSTEM- Support for Windows® 10 64-bit
