OPTIMIZED THERMAL MANAGEMENT
Mesh intakes spanning the front panel guarantee sufficient airflow in and out of the system.
Pre-installed fans ensure the case runs at peak performance.
The honeycomb vent design at the top, rear, and above the PSU chamber guarantee an abundant airflow is delivered to the interior components, optimizing the thermal management.
Ultimate cooling system scenario
With two 200MM fans mounted outside of the frame, you still have enough room to front mount a 360 AIO radiator to benefit from the ultimate cooling scenario. Don’t worry about the fan screws, they won’t interfere with the radiator.
STUNNING PC ILLUMINATION
Move air stylishly with ARGB effects

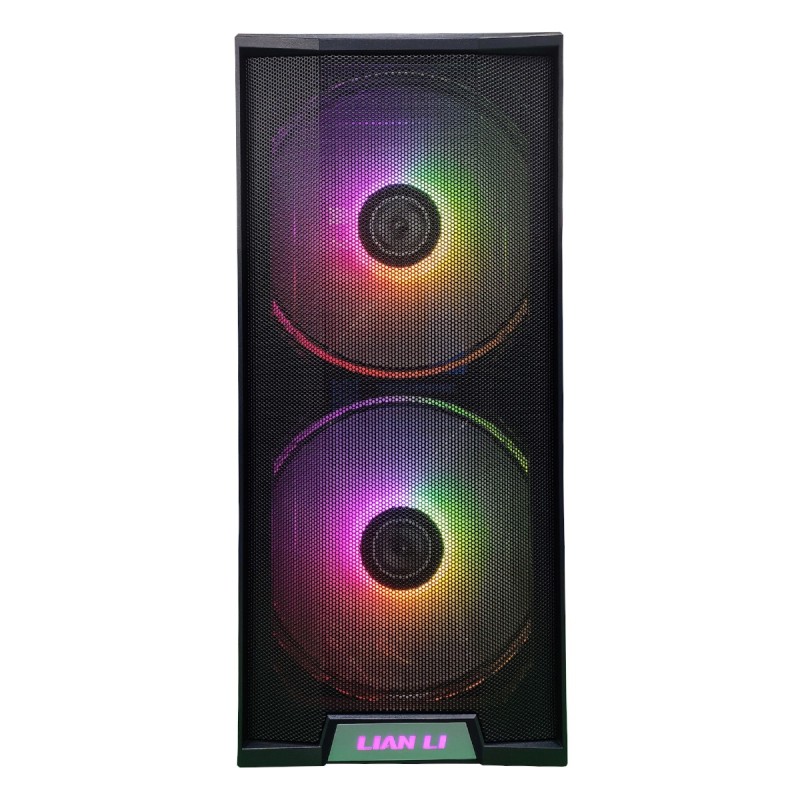

Two 200MM fans are equipped with LED lights which create a dazzling effect through the mesh panel.
The LIAN LI logo glows in sync with the fans.
Experience ARGB control via one button
The LED button located on the top controls 8 lighting modes and 7 colors through a simple click.
ARGB synchronization with the motherboard
Pressing the LED button 3 seconds passes over the control of the LED lights to the motherboard, and press the button 3 seconds again to regain control of the lights.
Pre-installed fan hub
The included fan hub can provide extra power to 3 additional fans and 1 extra ARGB device.
Plenty of space for cable management
The 22MM thick space behind the motherboard ensures the cables fit in well.
Keep the cable nice and neat
The rubber grommets around the motherboard and the cable tie points at the back of the motherboard tray, with included Velcro straps, simplify cable management.
E-ATX Motherboard Compatible
Fits motherboards with a maximum width of 280MM.
Removable/adjustable cage supports
2 x 3.5” HDD or 1 x 3.5” HDD + 1 x 2.5” SSD
SIMPLE DUST MANAGEMENT
The trendy mesh design at the front panel provides filtration for dust coming from outside the chassis. Moreover, the magnetic dust filter on the top and the removable full-length dust tray at the bottom protect the internal components from dust accumulation without impeding the airflow.
|Dimensions||(D) 462mm x (W) 215mm x (H) 482mm|
|Motherboard||E-ATX(width: under 280mm)/ATX/M-ATX/ITX|
0.75mm SGCC (MB tray, and most of the interior)
4.0mm tempered glass (both sides)
|Incl Fans||2 x 200MM 3-PIN 800 RPM ARGB fans (front)|
1 X 120MM 3-PIN 1100 RPM Fans (rear)
|Fan Support||Front: 2 x 140mm or 3 x 120mm|
Top: 2 x 120mm or 2 x 140mm
Top of PSU chamber: 2 x 120mm
|Radiator||Front: 1 x 280/360mm|
Top: 1 x 240 / 280 mm
|Drive||Behind MB Tray: 2 x 2.5″ SSD|
Hard Drive Cage: 2 x 3.5″ HDD or 1 x 2.5″ SSD
|I/O Ports||Power button|
LED button for lighting mode control
1 x HD AUDIO
2 x USB 3.0
|Dust Filters||1 x Top (magnetic), 1 x Bottom (tray)|
