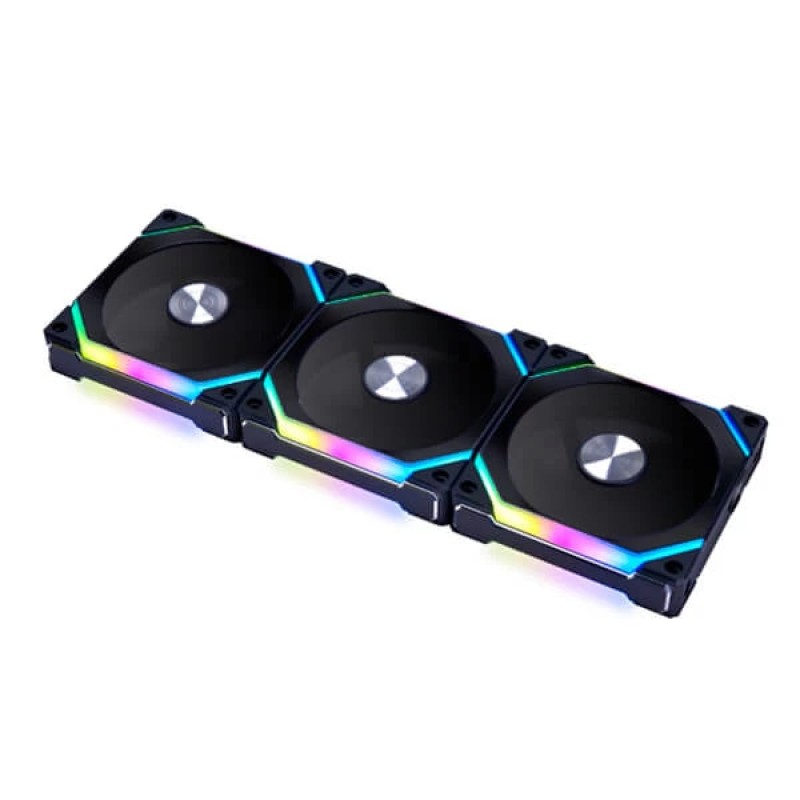

Lian Li UNI Fan SL V2 120 ARGB Triple Fan with controller- Black

Lian Li UNI Fan SL V2 120 ARGB Triple Fan with controller- Black

Features

UPGRADED MODULARITY

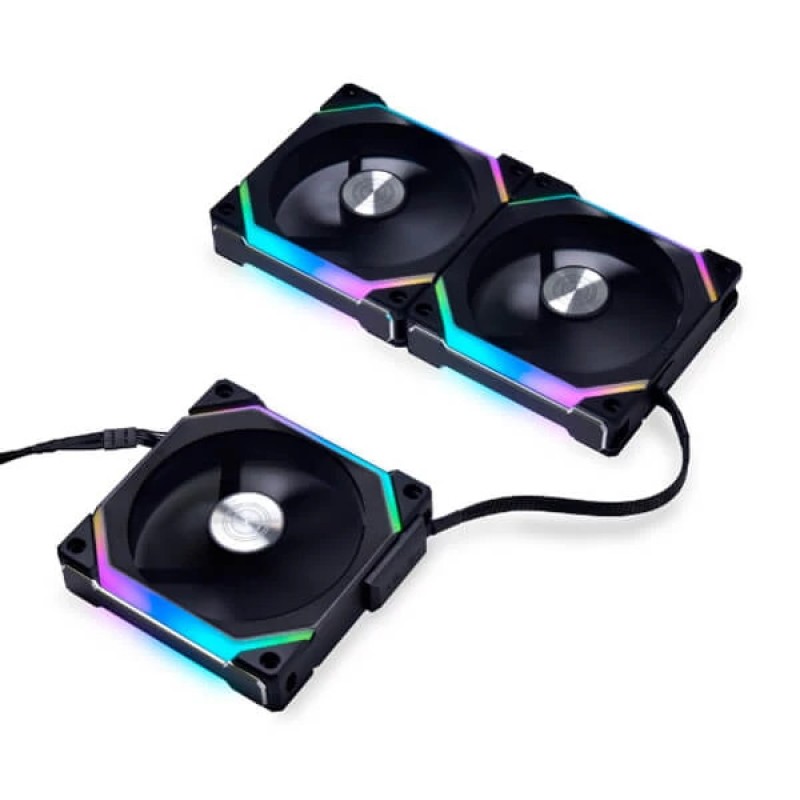

UNI FAN SL V2 revised its interlocking style to connect up to 6 fans in two clusters to a single controller port, making cable management simpler.

Extension Cable

With the new 18 cm extension cable, the ability to bridge two clusters of fans to create a 3+3 daisy-chained cluster is offered. These 6 fans can then be connected to a single port on the SL V2 UNI HUB controller. The new daisy-chaining solution reduces the number of cables needing to be managed at the back of the case and enables new lighting effects that can be continuous between the two bridged clusters.

Plug-in Power Cable Module

The cable module is designed to plug in and sit flush with the fan frame, which doesn’t require extra space for the module and reduces clearance issues with radiator fittings.

Removable Key

The interlocking keys on each fan are removable to improve compatibility with radiator fittings.

IMPROVED PERFORMANCE

Thanks to a slight increase to a 28mm thick frame, the SL120 V2 features a 10% airflow optimization compared to the SL120 V1, which creates a great balance of airflow and static pressure.

MORE SLEEK LIGHTING DESIGN

The cut edge of the rubber pads is designed to create a smoother curve along the light diffuser.

Continuous LED Channel

The light gap between the two fans when interlocked together has been reduced from 5.6mm to 3mm, sketching out the elegant lighting effects.

Dazzling at All Angles

The center of the rear fan has been decorated with an aluminum medallion for an aesthetic look in any orientation.

More Lighting Effect Choices

New lighting effects have been developed for the updated version of the SL fans, offering more lighting options: Render, Tunnel, Voice, and Groove.

Merging Lighting Effects

A merge function is available to allow lighting effects to flow not only across a single cluster but across the whole system.

Specifications:

PRODUCT NAMEUNI FAN SL V2 120
MODELG99-12SLV23B-IN
COLORBlack
NUMBER OF FANS3
CONTROLLERYes
CONNECTOR TYPE4 × 7-PIN
(Power Cable)

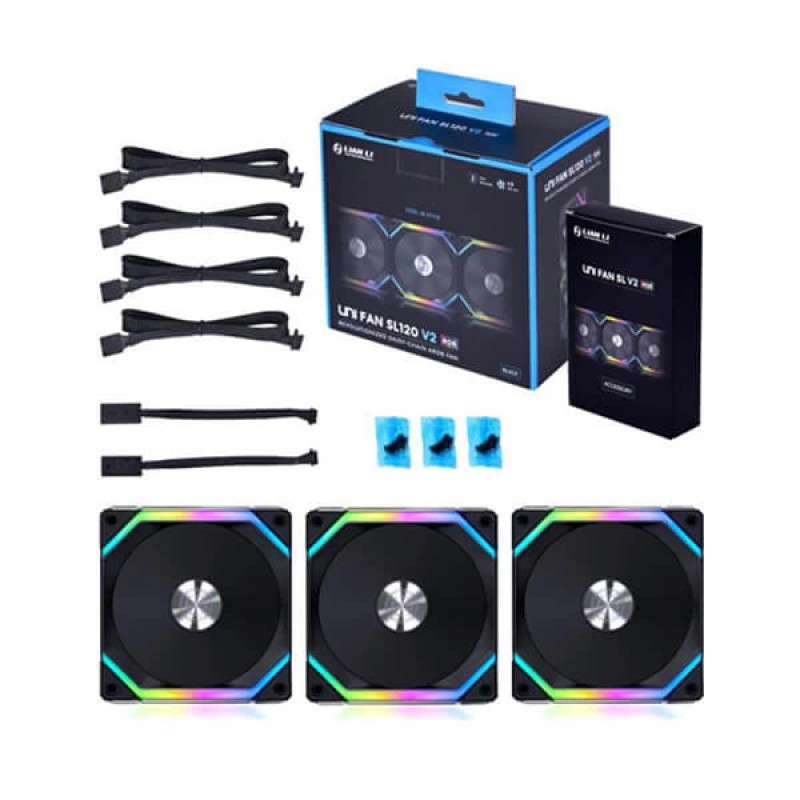

2 × Extension Cable
MATERIALPBT/PC/Aluminum)
RATED VOLTAGEDC 12V (FAN) & 5V (LED)
FAN DIMENSION120 X 120 X 28 (mm)
FAN SPEED0, 250~2000 RPM
MAX. AIR PRESSURE2.59 mmH2O (Maximum)
MAX. AIRFLOW64.5 CFM (Maximum)
ACOUSTIC NOISE29.2 dB(A) Max
LOCKED CURRENT

0(Automatic Protection)

BEARING TYPEFluid Dynamic Bearing (FDB)
OPERATE VOLTAGEDC12V & 5V
START-UP VOLTAGE

≦5V

INPUT CURRENT0.17A
INPUT POWER2.04W
Warranty2 Years
