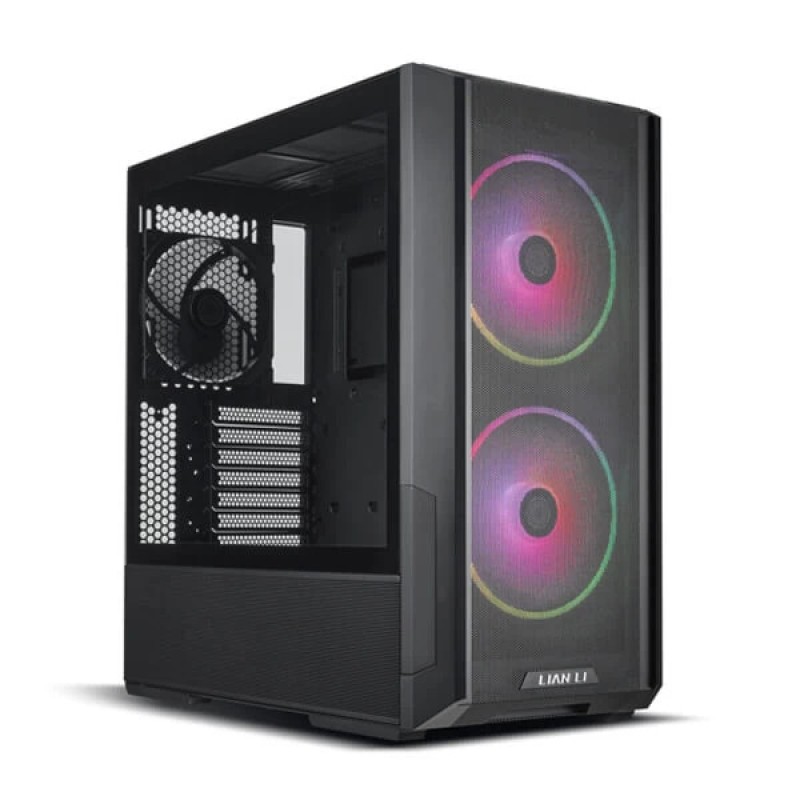

Lian Li Lancool 216 ARGB Black Gaming Cabinet

Lian Li Lancool 216 ARGB Black Gaming Cabinet

The LANCOOL 216 is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel, it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative rear PCIe fan bracket to maximize airflow.


Key Features

CONTINUOUS FRONT TO TOP MESH

To ensure adequate airflow is provided to the system, the LANCOOL 216 features mesh at the front, top, and on the PSU shroud’s side. The front mesh extends to the top for a continuous mesh panel.

LANCOOL 216 RGB FANS

The included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan and another at the shaft of the fan blades) that can be controlled separately via an optional accessory or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header.

Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans.

AIR COOLING MODE / WATER COOLING MODE

The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled systems, or a lower position for water-cooled systems.

WATER COOLING

Set lower, the motherboard leaves a 63mm thick gap at the top to install radiator/fan combos, ideal for AIOs or custom water cooling.

FRONT I/O CAN BE RELOCATED

Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated to the lower left side of the front panel.

HARDWARE COMPATIBILITY

The LANCOOL 216 supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.

LATEST GEN. GPU READY

With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the LANCOOL 216 is compatible with even the largest NVIDIA 4000 series cards.

PRESSURE LEAK FREE

Pre-installed at the front of the top radiator bracket, a seal plate ensures no pressure leak is created when installing smaller than a 360 radiator/3x120mm fans at the top.

REMOVEABLE TOP RADIATOR BRACKET

The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance.

PCIE FAN BRACKET

The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system.

VERTICAL GPU COMPATIBLE

The PCIe expansion slot panel can be rotated to vertically install the GPUs, only an additional riser cable is required.

CABLE MANAGEMENT

The LANCOOL 216 offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold 2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2 additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation path in the bottom chamber.

DUST FILTER

For users who take dust management to the next level, a magnetic front panel dust filter is available as an optional accessory. The dust filter fits perfectly between the front panel and the front fans.

PCIE CABLE

For vertical GPU mounting, only an additional riser cable is required. With a PCB that has a hole spacing of 112.7mm, the Lian-Li PCIe 4.0 X16 RISER CABLE is compatible with the LANCOOL 216.


Specifications:

MODELLANCOOL 216
DIMENSIONS(D) 480.9mm x (W) 235mm x (H) 491.7mm
COLORBlack
MATERIALSteel / 4.0mm Tempered Glass
MOTHERBOARD SUPPORTE-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
FAN SUPPORTTop: 3 x 120mm / 2 x 140mm
PSU Cover: 2 x 120mm / 2 x 140mm (Air Cooling mode)
Front: 3 x 120mm / 2 x 140mm / 2 x 160mm
Rear: 1 x 120mm / 1 x 140mm
PCIe Fan Bracket: 1 x 120mm
RADIATOR SUPPORTFront: 360 / 280 / 240mm
Top: 360 / 280 / 240mm
Bottom: 240mm
PSU SUPPORT LENGTHATX (Under 220mm)
GPU LENGTH CLEARANCE392mm (max)
CPU COOLER HEIGHT CLEARANCE180.5mm (max)
DRIVE

Drive Cage:2 x 2.5” SSD + 2 x 3.5” HDD
PSU Cover:2 x 2.5” SSD
Behind MB tray: 2 x 2.5” SSD

EXPANSION SLOT7
I/O PORTS1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB Type C
1 x Audio
INCLUDED FANSLANCOOL 216 RGB
Front: 2 x 160mm ARGB Fans
Rear: 1 x 140mm PWM Fan
LANCOOL 216
Front: 2 x 160mm PWM Fans
Rear: 1 x 140mm PWM Fan
DUST FILTERS1 x Bottom
Warranty1 Year
