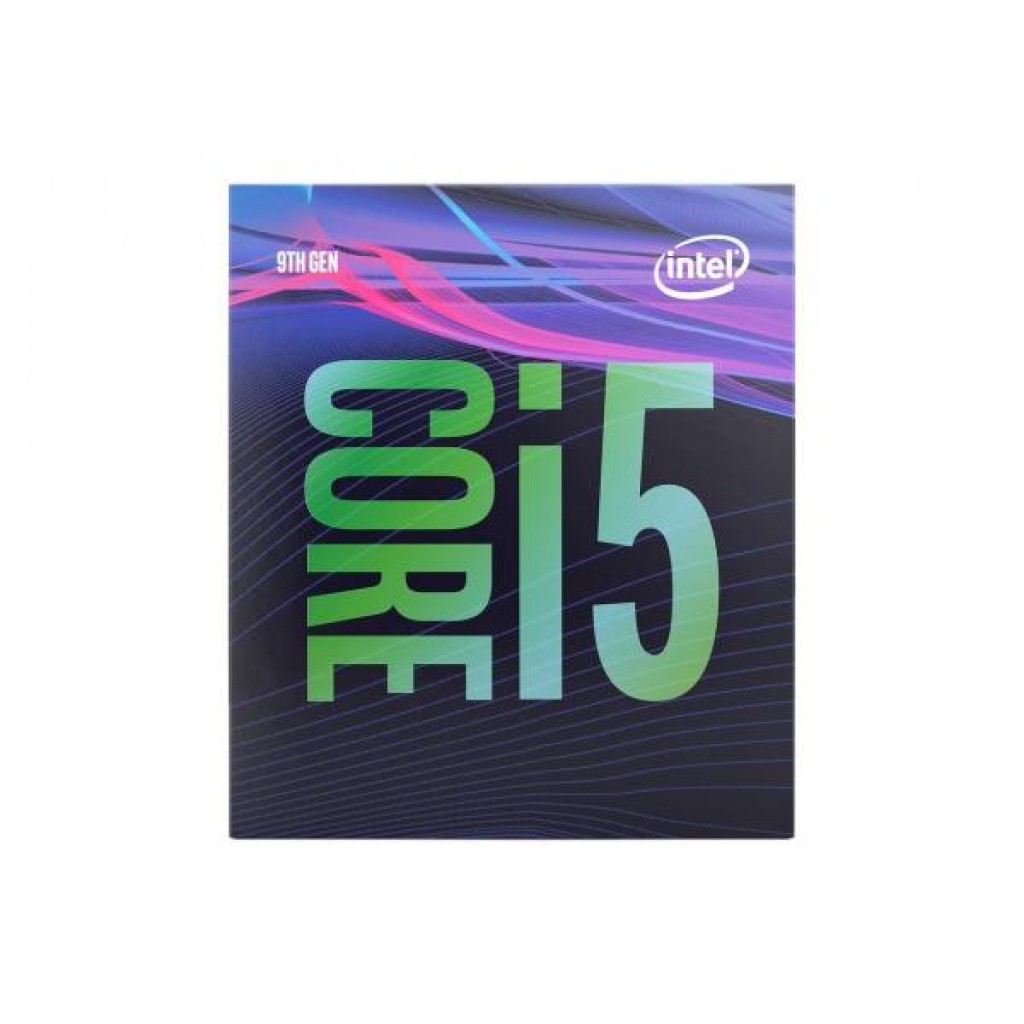

Intel Core i5-9400

Intel Core i5-9400 is a 9th generation Intel CPU which comes with 6 cores and 6 threads capable of handling all your gaming and productivity tasks.

• Product Collection9th Generation Intel Core i5 Processors

• Code NameProducts formerly Coffee Lake

• Vertical SegmentDesktop

• Processor Numberi5-9400

• StatusLaunched

• Launch DateQ1'19

• Lithography14 nm

• Use ConditionsPC/Client/Tablet

Performance

• # of Cores6

• # of Threads6

• Processor Base Frequency2.90 GHz

• Max Turbo Frequency4.10 GHz

• Cache9 MB Intel® Smart Cache

• Bus Speed8 GT/s

• TDP65 W

Memory Specifications

• Max Memory Size (dependent on memory type)128 GB

• Memory TypesDDR4-2666

• Max # of Memory Channels2

• Max Memory Bandwidth41.6 GB/s

• ECC Memory Supported ‡No


Processor Graphics

• Processor Graphics ‡Intel® UHD Graphics 630

• Graphics Base Frequency350 MHz

• Graphics Max Dynamic Frequency1.05 GHz

• Graphics Video Max Memory64 GB

• 4K SupportYes, at 60Hz

• Max Resolution (HDMI 1.4)‡4096x2304@24Hz

• Max Resolution (DP)‡4096x2304@60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz

• DirectX* Support12

• OpenGL* Support4.5

• Intel® Quick Sync VideoYes

• Intel® InTru™ 3D TechnologyYes

• Intel® Clear Video HD TechnologyYes

• Intel® Clear Video TechnologyYes

• # of Displays Supported ‡3

• Device ID0X3E98/x92


Expansion Options

• Scalability1S Only

• PCI Express Revision3.0

• PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4

• Max # of PCI Express Lanes16


Package Specifications

• Sockets SupportedFCLGA1151

• Max CPU Configuration1

• Thermal Solution SpecificationPCG 2015C (65W)

• TJUNCTION100°C

• Package Size37.5mm x 37.5mm


Advanced Technologies

• Intel® Optane™ Memory Supported ‡Yes

• Intel® Turbo Boost Technology ‡2.0

• Intel® vPro™ Platform Eligibility ‡No

• Intel® Hyper-Threading Technology ‡No

• Intel® Virtualization Technology (VT-x) ‡Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes

• Intel® VT-x with Extended Page Tables (EPT) ‡Yes

• Intel® Transactional Synchronization ExtensionsNo

• Intel® 64 ‡<
