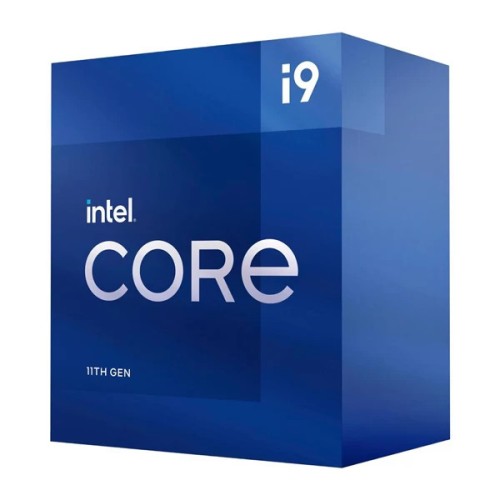

Intel Core I9-11900 Processor

All new 11th Gen Intel Rocket Lake Core i9-11900 Desktop Processor Featured With 8 Cores and 16 Threads At 5.20 Ghz Max Boost Clock, Comes with AVX 512 Instruction, Deep Learning Boost and upto 22% IPC Uplift with All new Cypress Cove CPU Core.

Features and Specifications

  • Essentials

Product Collection
11th Generation Intel® Core™ i9 Processors
Code Name

Products formerly Rocket Lake

Vertical Segment
Desktop
Processor Number
i9-11900
Lithography
14 nm
Use Conditions
PC/Client/Tablet
  • Performance Specifications

Cores
8
Threads
16
Processor Base Frequency
2.50 GHz
Max Turbo Frequency
5.20 GHz
Intel® Thermal Velocity Boost Frequency
5.20 GHz
Cache
16 MB Intel® Smart Cache
Bus Speed
8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency
5.10 GHz
Intel® Turbo Boost Technology 2.0 Frequency
5.00 GHz
TDP
65 W
  • Supplemental Information

Embedded Options Available
No
  • Memory Specifications

Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-3200
Max Memory Channels
2
Max Memory Bandwidth
50.0 GB/s
ECC Memory Supported
No
  • Processor Graphics

Processor Graphics
Intel® UHD Graphics 750
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.30 GHz
Graphics Video Max Memory
64 GB
Execution Unit
32
4K Support
Yes, at 60Hz
Max Resolution (HDMI)
4096x2160@30Hz
Max Resolution (DP)
5120x3200@60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120x3200@60Hz
DirectX Support
12.1
OpenGL Support
4.5
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
Intel® Clear Video Technology
Yes
Displays Supported
3
Device ID
0x4C8A
Open CL Support
3.0
  • Expansion Options

Scalability
1S Only
PCI Express Revision
4.0
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4, 1x8+3x4
Max PCI Express Lanes
20
  • Package Specifications

Socket Supported
FCLGA1200
Max CPU Configuration
1
Thermal Solution Specification
PCG 2019A
TIntel® Thermal Velocity Boost Temperature
70 °C
TJUNCTION
100°C
Package Size
37.5 mm x 37.5 mm
  • Advanced Technologies

Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Intel® Thermal Velocity Boost
Yes
Intel® Turbo Boost Max Technology 3.0
Yes
Intel® Turbo Boost Technology
2.0
Intel vPro® Platform Eligibility
Yes
Intel® Hyper-Threading Technology
Yes
Intel® Virtualization Technology (VT-x)
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
Intel® 64
Yes
Instruction Set
64-bit

Instruction Set Extensions- Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512

Idle States

Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Identity Protection Technology
Yes
Intel® Stable Image Platform Program (SIPP)
Yes
Intel® Gaussian and Neural Accelerator 2.0
Yes
  • Security & Reliability

Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Software Guard Extensions (Intel® SGX)
No
Intel® OS Guard
Yes
Intel® Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel® Boot Guard
Yes
Warranty
3 Years
