Gigabyte X670 Aorus Elite AX

Gigabyte X670 Aorus Elite AX
Gigabyte X670 Aorus Elite AX
Gigabyte X670 Aorus Elite AX
Out Of Stock
Gigabyte X670 Aorus Elite AX
Gigabyte X670 Aorus Elite AX
Gigabyte X670 Aorus Elite AX
Gigabyte X670 Aorus Elite AX
  • Stock: Out Of Stock
  • Model: X670-AORUS-ELITE-AX
  • SKU: TLG-003771
Rs.27,399.00
Ex Tax: Rs.23,219.49

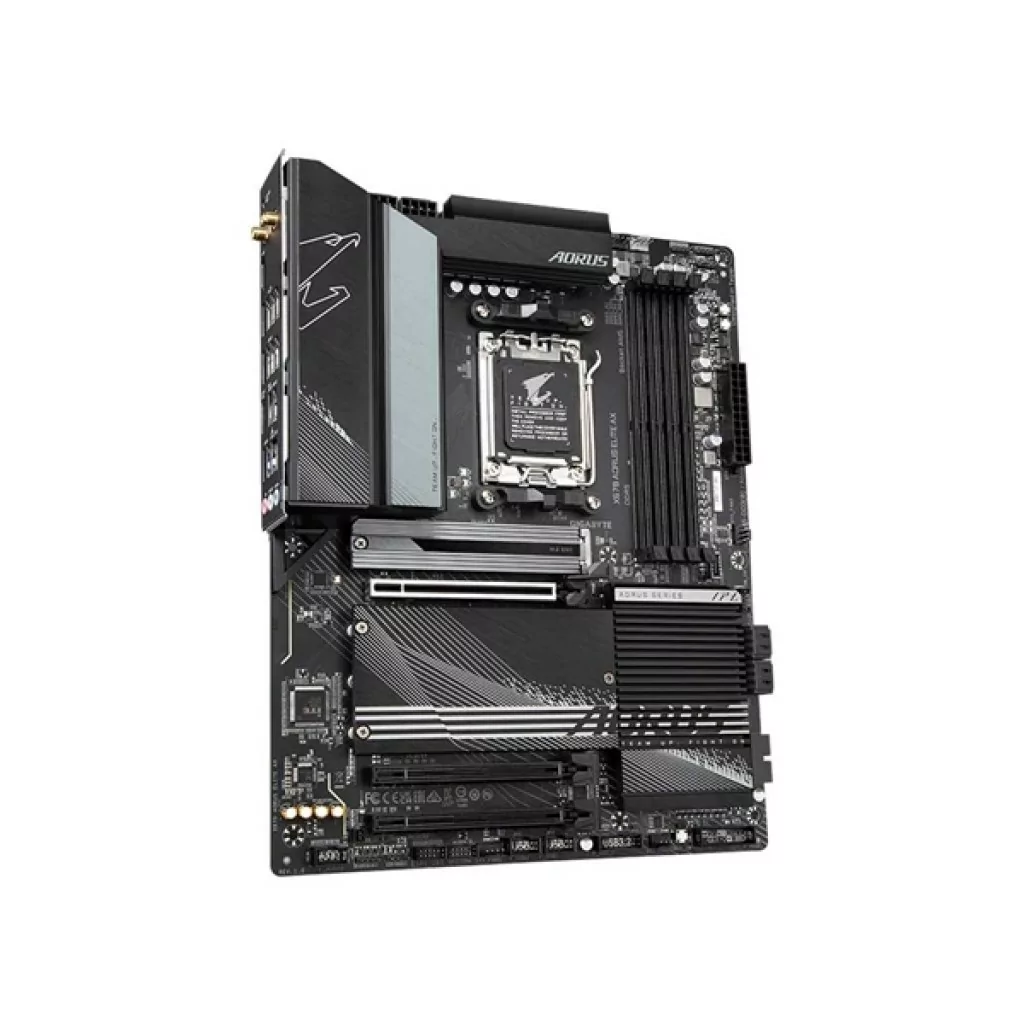

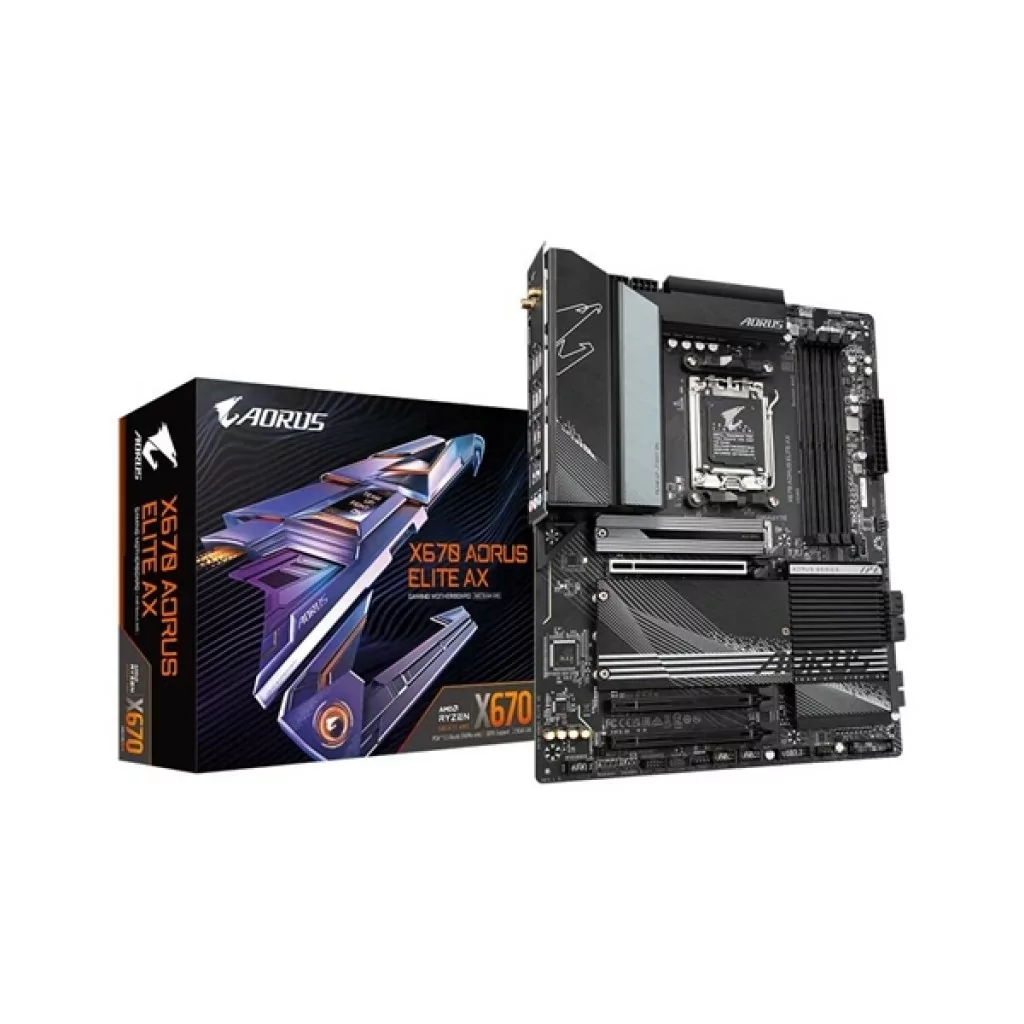

Gigabyte X670 Aorus Elite AX ATX AM5 Motherboard


CPUAMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
ChipsetAMD X670
Memory
  1. Support for DDR5 6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MHz memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication ModuleAMD Wi-Fi 6E RZ616 (MT7922A22M)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion SlotsCPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage InterfaceCPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
    (Note) Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USBCPU:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

Chipset:

  1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x CPU cooler LED strip/RGB LED strip header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 4 x SATA 6Gb/s connectors
  10. 4 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  14. 2 x USB 3.2 Gen 1 headers
  15. 2 x USB 2.0/1.1 headers
  16. 1 x THB_U4 add-in card connector
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x power button
  19. 1 x reset button
  20. 1 x Clear CMOS button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper

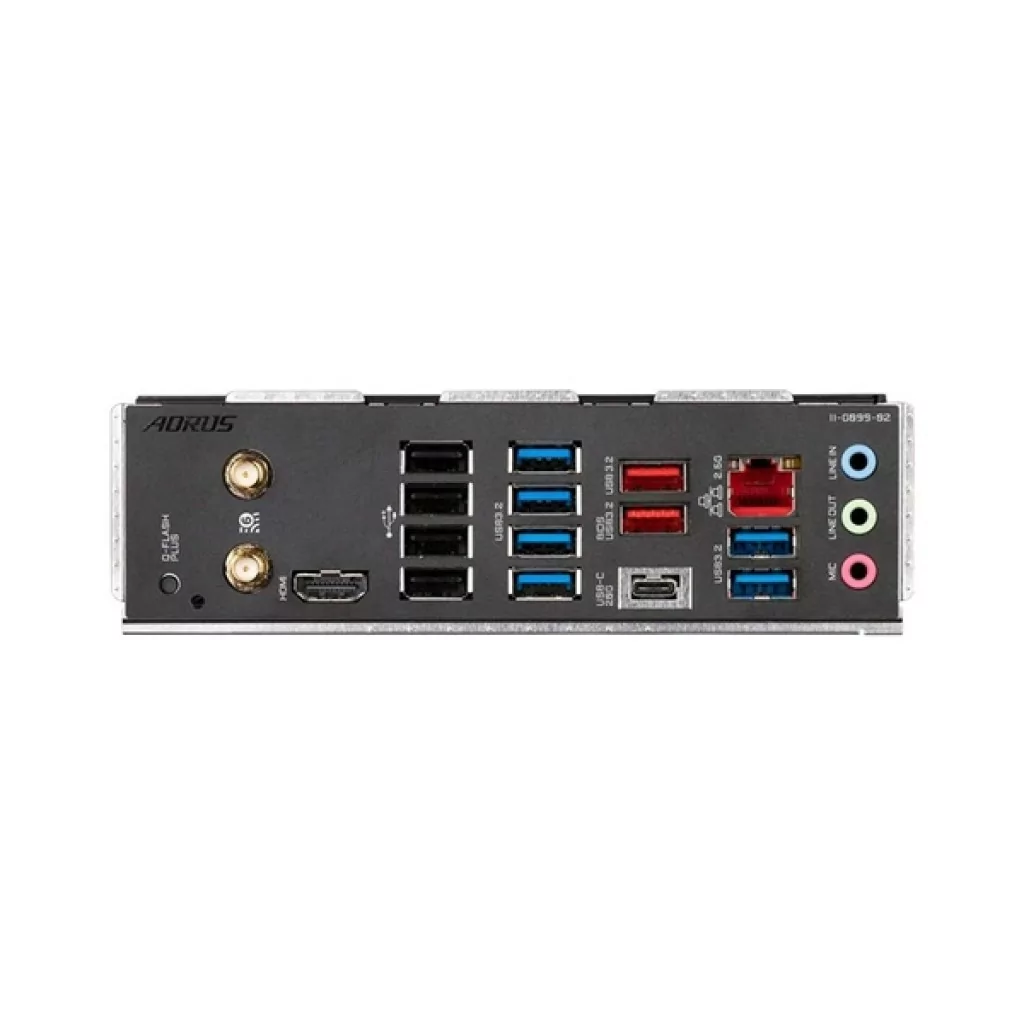

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x HDMI 2.0 port
  4. 6 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 2 x USB 3.2 Gen 2 Type-A ports (red)
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty3 Years
Technical
CHIPSETX670
TLG GAMING25/06/2021
