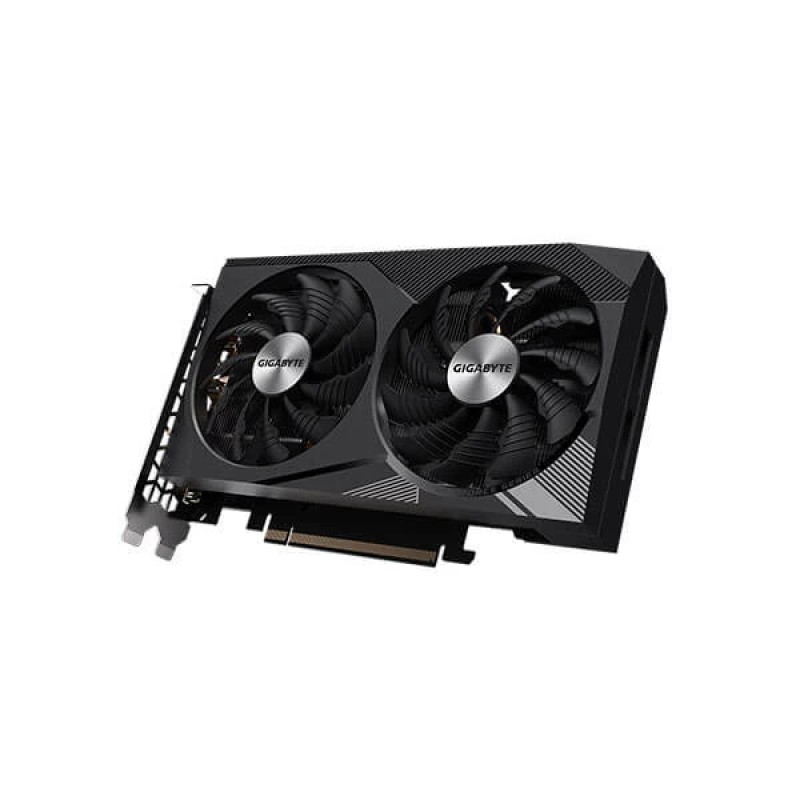

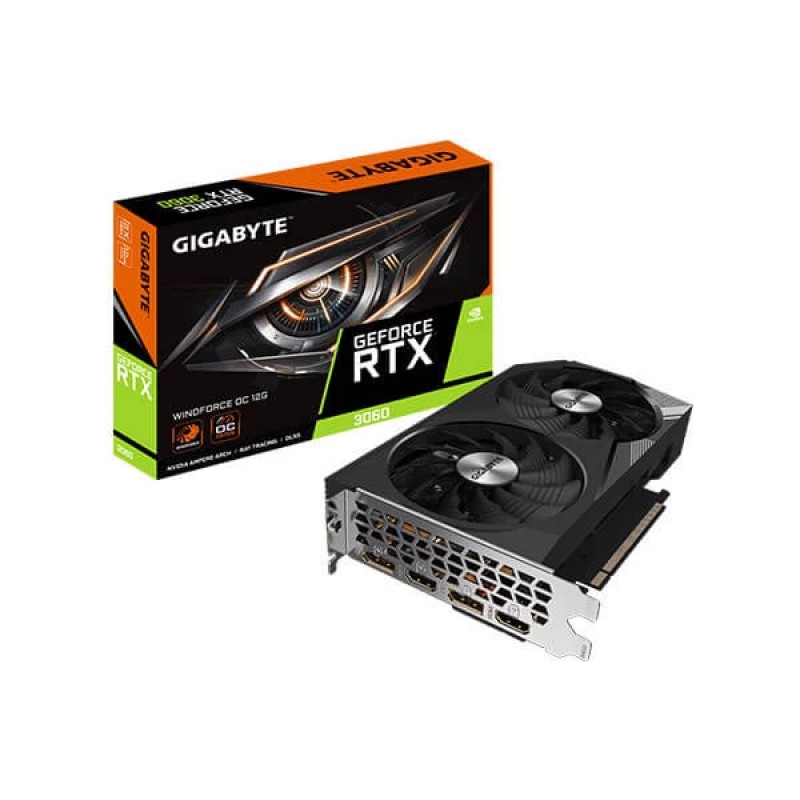

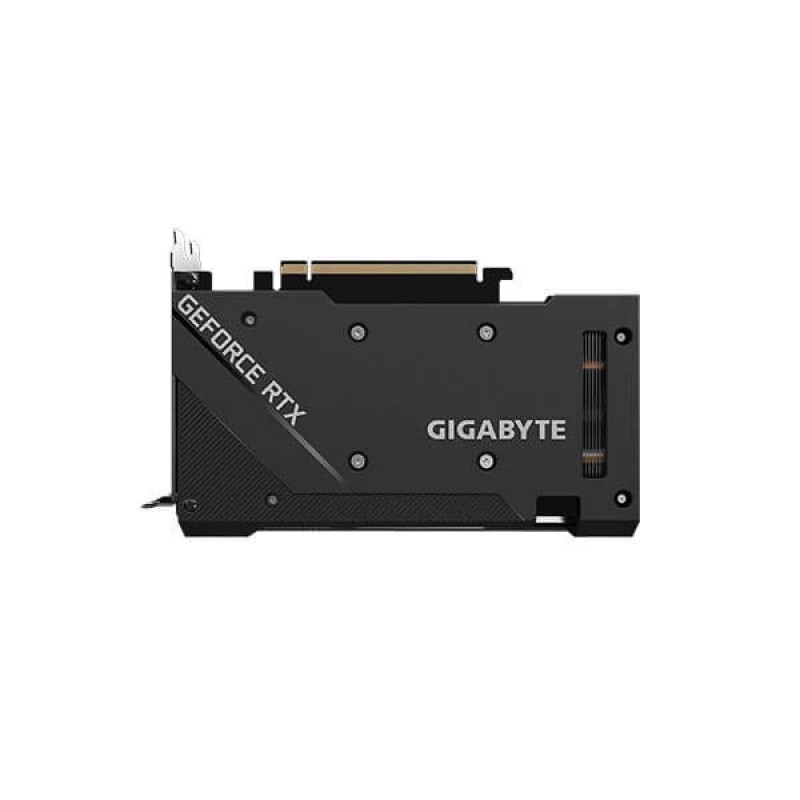

Gigabyte RTX 3060 Windforce OC 12GB
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, a 3D active fan, and Screen cooling, which together provide high-efficiency heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low-load or low-power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of a fan by 2.1 times, close to the life of a double ball bearing, and is quieter.
- MODEL: GV-N3060WF2OC-12GD
- CHIPSET: Nvidia GeForce
- GPU: RTX 3060
- PCI EXPRESS: 4.0
- GPU BASE CLOCK: 1792 MHz
- MEMORY CLOCK: 15000 MHz
- MEMORY SIZE: 12 GB
- MEMORY INTERFACE: 192-BIT
- MEMORY TYPE: GDDR6
- DIRECT X SUPPORT: 12
- OPEN GL: 4.6
- PORTS
- 2x DisplayPort 1.4a
- 2x HDMI 2.1
- RESOLUTION: 7680x4320
- COOLER: Dual Fan
- SOFTWARE: Driver & Software
- PACKAGE CONTENTS: Graphics Card, User Manual
- GPU CORE (CUDA CORE): 3584
- SLI SUPPORTED: NA
- POWER CONNECTORS: 1 x 8-pin
- WARRANTY: 3 Years
