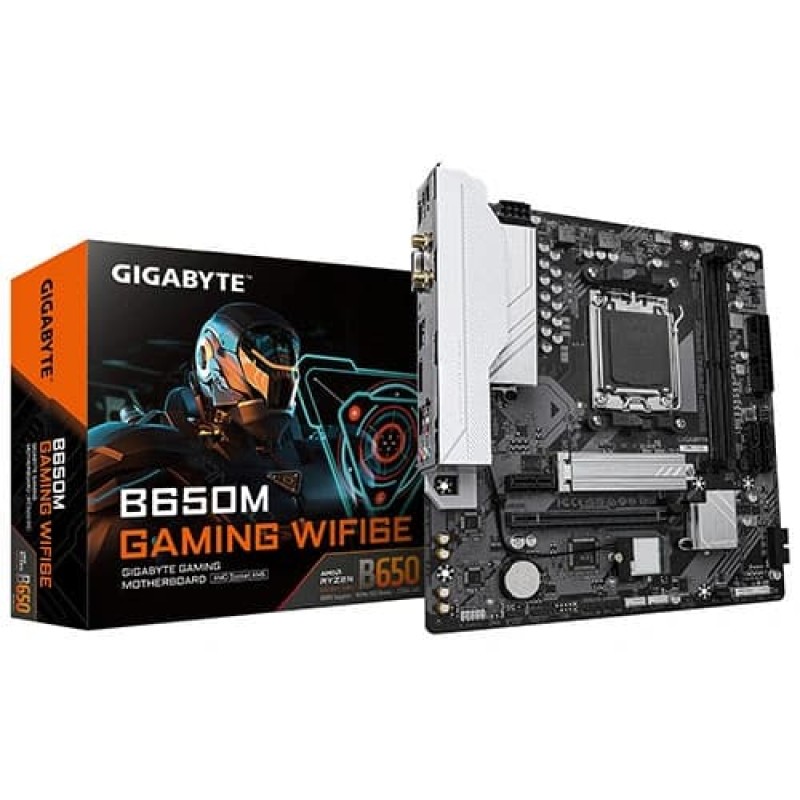

Gigabyte B650M Gaming WIFI6E

Gigabyte B650M Gaming WIFI6E
New FREE SHIPPING -44 %

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.


Digital VRM Design 5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.


EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.


PlatformAMD
SocketAM5
Cpu TypeRyzen 9000,Ryzen 8000,Ryzen 7000
ChipsetB650
Memory Speedup to 6400
Max Memory Support128 GB
Supported Memory TypeDDR5
Channel SupportedDual Channel
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)
Graphics Port1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Wireless NetworkingWiFi 6E,Bluetooth 5.3
Back Panel I/O Ports4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port*
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x HDMI port*
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU.
Internal I/O Connector1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
Form FactorM-ATX
Warranty3 Years
Technical
CHIPSETB650
TLG GAMING25/06/2021

100% Authentic Products At Best Price In INDIA. Feel Free To Share Your Reviews
