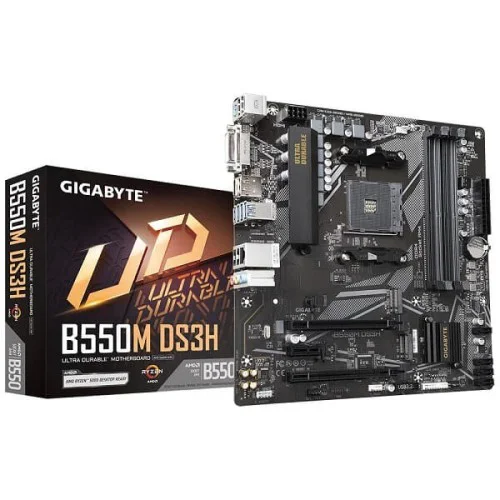

Gigabyte B550M DS3H

Gigabyte B550M DS3H
Out Of Stock
Gigabyte B550M DS3H
Order processing will be delayed
Order processing will be delayed due to the festive season
Authorized Dealer
We are the authorized brand dealer/distributor in India.
3 Days Replacement Policy
Customer satisfaction guaranteed with 3-day replacement policy - Click for more info
This product qualifies for free shipping
Get free shipping on this product at Tlg Gaming India!
  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: B550M-DS3H
  • SKU: TLG-004008
Based on 1 reviews. - Write a review
Rs.8,599.00
Rs.10,999.00
Ex Tax: Rs.7,287.29
Add to Cart
Add to Wish List

More from this brand

GIGABYTE B850 Gaming X WIFI6E
GIGABYTE B850 Gaming X WIFI6E
Rs.17,799.00
Ex Tax:Rs.15,083.90
Add to Cart Add to Wish List
Gigabyte B850M Force WIFI6E V2
Gigabyte B850M Force WIFI6E V2
Rs.13,499.00
Ex Tax:Rs.11,439.83
Add to Cart Add to Wish List
GIGABYTE B850M Gaming X WIFI6E
GIGABYTE B850M Gaming X WIFI6E
Rs.16,699.00
Ex Tax:Rs.14,151.69
Add to Cart Add to Wish List
GIGABYTE EAGLE 360 Liquid Cooler Black
GIGABYTE EAGLE 360 Liquid Cooler Black
Rs.5,499.00
Ex Tax:Rs.4,660.17
Add to Cart Add to Wish List

AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP.

Specifications:

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

(Please refer to "CPU Support List" for more information.)

ChipsetAMD B550
Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard GraphicsIntegrated Graphics processors:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  3. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
    4. *Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
The maximum shared memory of 16 GB
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LANRealtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  1. AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, install it in the PCIEX16 slot.
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset
  1. Supporting PCIe 3.0 x1 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
  1. Supporting PCIe 3.0 x1 mode
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated with the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
  1. Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated with the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
USBCPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 2 x M.2 Socket 3 connectors
  6. 4 x SATA 6Gb/s connectors
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 1 x USB 2.0/1.1 header
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty3 Years
