Out Of Stock
Galax Revolution-02
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
- Stock: Out Of Stock
- Model: CG02ANWA1A0
- SKU: TLG-003491
- EAN: 4895147145907
Rs.3,499.00
Ex Tax: Rs.2,965.25
More from this brand
Rs.4,399.00
Ex Tax:Rs.3,727.97

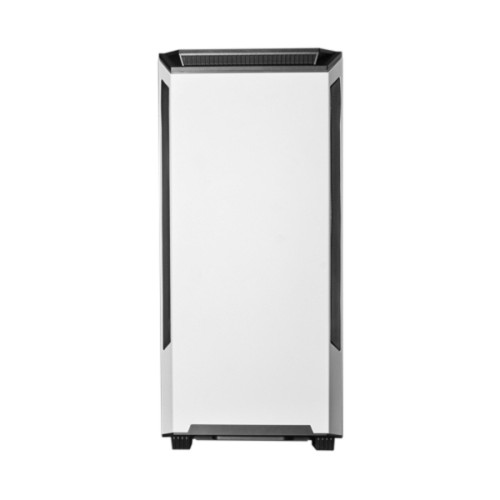

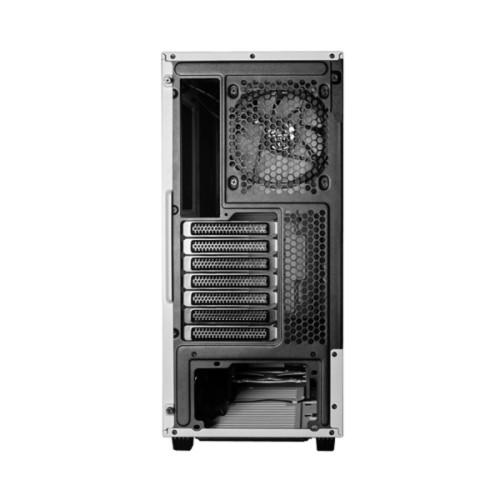

REV-02 lands with an all new arctic white aesthetic. It is compatible with EATX, ATX,Micro and Mini ITX motherboards, as well as allowing the installation of up to 5 cooling fans. As it also features a tempered glass cover which only requires a single screw piece to hold it in place, the ease of installation and tinkering is totally unbeatable. If you enjoy RGB effects, REV-02 also comes in with an ARGB controller!
| Form Factor (Midi, Micro, Mini ITX, Full) | EATX, ATX,Micro, Mini ITX | ||
| Chassis | SPCC Rear:0.8mm, Left/right/Top/front:06mm, other:0.5mm. Black painting interior | ||
| PSU Form Factor | Bottom/ATX | ||
| M/B Form Factor | EATX(282*305mm)、ATX、M-ATX、ITX | ||
| Front Panel | ABS, Mesh | ||
| Top Panel | Metal cover | ||
| Side Panel | Left | Tempered Glass | |
| Right | Metal cover | ||
| External Drive Bay(s) | 5.25" (ODD) | *0 | |
| 3.5" | *0 | ||
| Internal Drive Bay(s) | 3.5" (HDD) | *2 | |
| 2.5" (SSD) | *2 | ||
| 1*3.5HDD+3*2.5SSD or 2*3.5HDD+2*2.5SSD | |||
| I/O | Buttons | *3 | |
| USB1.1 Port(s) | *0 | ||
| USB2.0 Port(s) | *2 | ||
| USB3.0 Port(s) | *2 | ||
| USB3.1 Port(s) | *0 | ||
| HD Audio Support | *1 | ||
| Card Reader (Support) | *0 | ||
| P-Lock | *0 | ||
| RGB Controller | *1 Rainbow+PWM V2.0 | ||
| Controller max. fans | *5 | ||
| RGB Controller max. LED strips | *2 | ||
| Remote (IR or RF) | *0 | ||
| Cooling Fan Support | Front | 2x120mm,2x140mm(Fan optional) | |
| Top | 2x120mm ,2x140mm (Fan optional) | ||
| Rear | 1x120mm (Fan optional) | ||
| Left Side | 0 | ||
| PSU Cover | 0 | ||
| Water Cooling Support (Radiator Size) | Front | 120mm*1, 140mm*1,240mm*1,280mm*1 | |
| Top | 120mm*1, 240mm*1,140mm*1,280mm*1 | ||
| Rear | 120mm*1 | ||
| Dust Cover | Bottom and top cover with dust filter | ||
| Slots | *7 | ||
| Dimensions | Chassis | mm | (L)390*(W)210*(H)445mm |
| Full Case (inc Fascia) | mm | (L)438*(W)210*（H)468mm | |
| Carton | mm | (L)515*(W)280*（H)505mm | |
| Net Weight (Kg) | kg | ||
| Gross Weight (Kg) | kg | ||
| VGA Card Length | mm | up to 360 | |
| CPU Cooler Height | mm | 170 | |
| Cable Management Depth | mm | 37.5 | |
