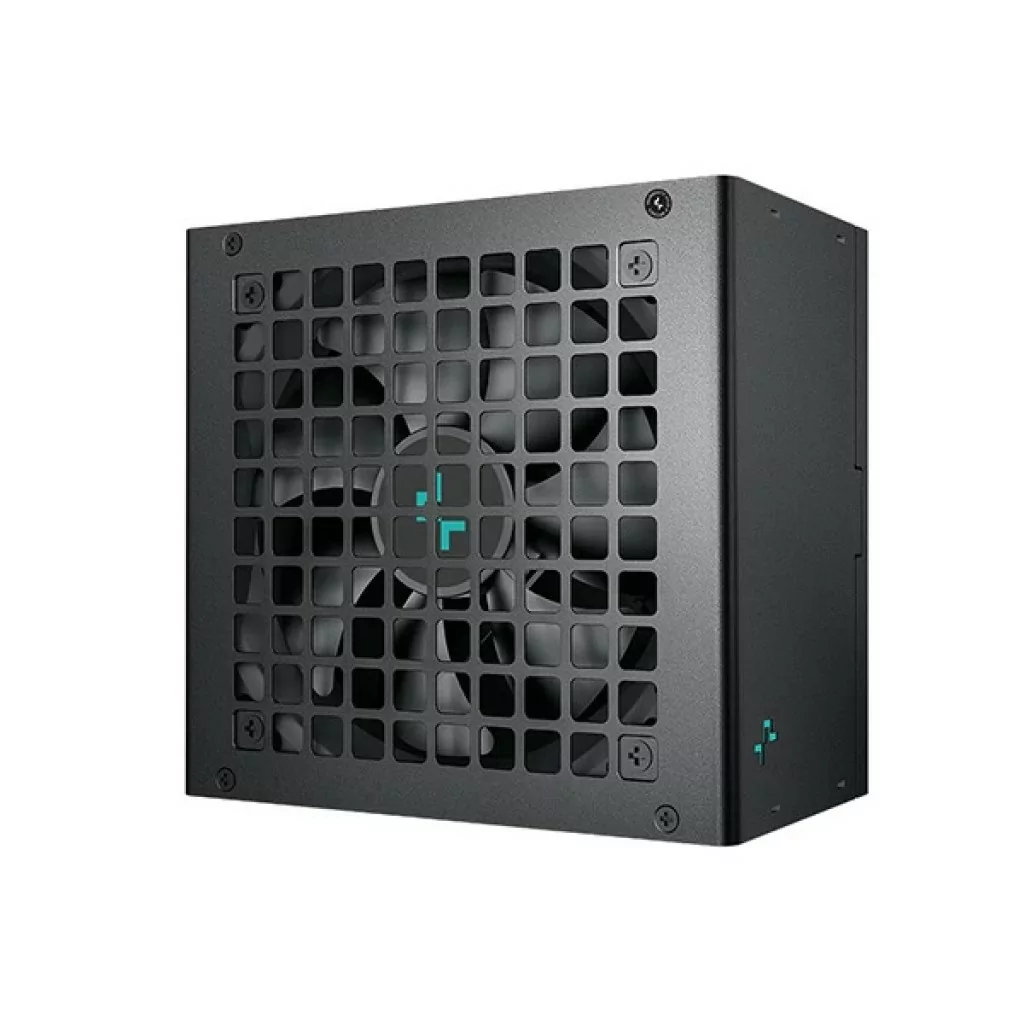

![Deepcool PL650D ATX 3.0 Bronze Deepcool PL650D ATX 3.0 Bronze](https://tlggaming.b-cdn.net/image/cache/catalog/products/SMPS/deepcool/PLD series 550_650_750/deepcool pl650d tlg 1-550x550.jpg)
- Stock: Out Of Stock
- Model: R-PL650D-FC0B-IN-V2
- SKU: TLG-004239
More from this brand
The PL650D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
NATIVE ATX 3.0
Based on INTEL's latest ATX3.0 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
Specification
Model | PL650D |
P/N | R-PL650D-FC0B-IN-V2 |
Power Connector | Main Power Connector (20+4)Pin x 1 (x1) |
CPU Pin | CPU(4+4)Pin x 2 (x1) |
PCI-E Pin | PCI-E(6+2)Pin x 1 (x1) |
PCI-E Pin | PCI-E(6+2)Pin x 2 (x1) |
Cable | 12VHPWR(16Pin) x 1 (x1) |
Sata Pin | SATA x 3 + 4Pin Peripheral x 1 (x2) |
Type | ATX12V V3.0 |
Product Dimensions | 150×140×86mm (W x L x H) |
Efficiency certification | 80Plus Bronze |
Fan Size | 120mm |
Fan Bearing | HYB(Hydro Bearing) |
Topology | Active PFC+DC to DC |
Capacitors | Chinese Electrolytic Capacitors |
Power Good Signal | 100-150ms |
Hold Up Time | ≥16ms |
Efficiency | ≥85% Under Typical Load(50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
Operation Temperature | 0 - 40℃ |
Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
MTBF | 100,000 Hours |
Warranty | 5 Years |
