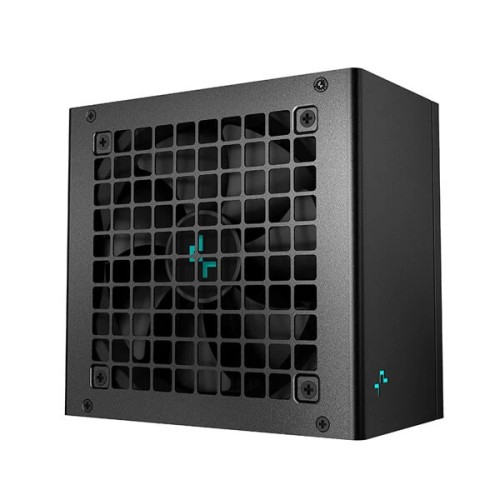

The DeepCool DQ850M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance, and uses all Japanese capacitors.
The DeepCool DQ850M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.
Go For Gold
The DQ850M-V3L power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. The DQ850M-V3L is energy-efficient, and provides efficiency greater than 92% at 50% load.
Designed And Built Solid
The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105℃ bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.
IMPROVED COOLING PERFORMANCE
By implementing a new manufacturing process with the adoption of SiC diodes, it produces lower heat loss, while achieving higher efficiency. The seperative heatsink for the LLC mosfet and a large, full copper heatsink for the SR mosfet creates superior heat dissipation.
Powerful Cooling When You Need It; Whisper Quiet When You Don't!
Under low loads, the DQ850M-V3L will operate at a true zero noise level. At full load, the supported intellegent, temperature-control adjusted, enabled FDB fan provides remarkably low noise cooling, while minimizing noise interference.
|Product Dimensions||150×140×86mm (W x L x H)|
|Fan Bearing||FDB (Fluid Dynamic Bearing)|
|Topology||Active PFC + Full Bridge SRC LLC + DC to DC|
|Capacitors||Full Japan Electrolytic Capacitors|
|Power Good Signal||100-500ms|
|Hold Up Time||≥16ms(80% Load)|
|Efficiency||≥90% Under Typical Load(50% Loading)|
|Operation Temperature||0 - 40 °C|
|Erp Regulation||ErP 2014|
