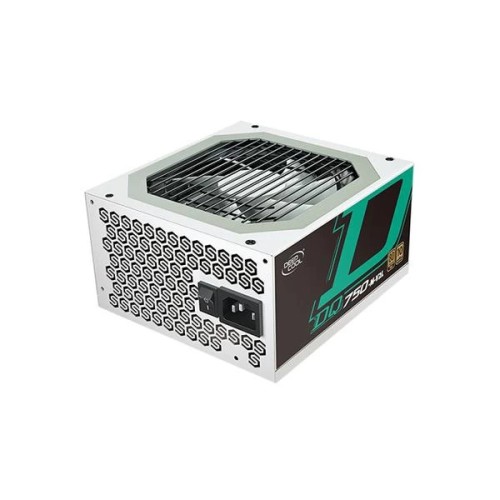

Deepcool DQ750-M-V2L White 80+ gold

Deepcool DQ750-M-V2L White 80+ gold
Deepcool DQ750-M-V2L White 80+ gold
Deepcool DQ750-M-V2L White 80+ gold
Out Of Stock
Deepcool DQ750-M-V2L White 80+ gold
Deepcool DQ750-M-V2L White 80+ gold
Deepcool DQ750-M-V2L White 80+ gold
Deepcool DQ750-M-V2L White 80+ gold
  • Stock: Out Of Stock
  • Model: DP-DQ750-M-V2L-WH
  • SKU: TLG-003440
  • EAN: 6933412798941
Rs.6,999.00
Ex Tax: Rs.5,931.36

Deepcool DQ750-M-V2L White 80+ gold

DeepCool 750W 80 PLUS Gold Rated Fully Modular Power Supply, Thermally Intelligent With PWM Cooling Fan, Highly Efficient on all Rails including 5VSB, Upto 60.0A on +12V Rails to ensure your System's stability

Features

  • 80 PLUS® GOLD certified - Up to 91.2% efficiency
  • 100% High quality Japanese capacitors
  • Full bridge PFC + LLC Resonant converter
  • Fully modular with flat cable design
  • CircuitShield™ — OVP / UVP / SCP / OPP / OTP

The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.

80 PLUS® Gold Certified

Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.

Top-notch Design

Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

Fully Modular

Easy cable management with flat cables keep your system clean and tidy.

Specifications

Model
DQ750-M-V2L WH
Type
ATX 12V V2.31
Certifications
80PLUS GOLD
Dimension
150×160×86mm (W × L × H)
Output Capacity
750W
Input Voltage
100-240V
Input Current
10.0A
Input Frequency Range
47-63Hz
Fan Size

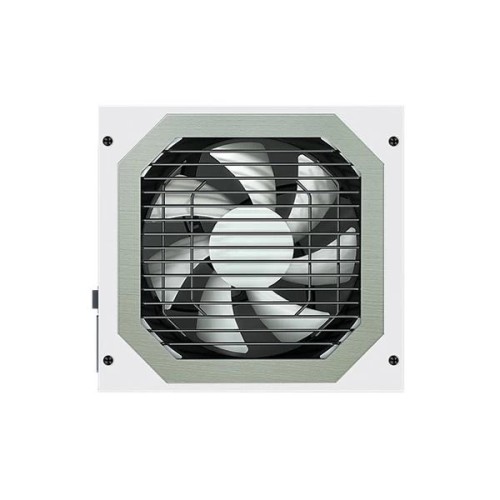

120mm
PFC
Active
Power Good Signal
100-500ms
Hold Up Time
>16ms(80% Loading)
Efficiency
>90% Under Typical Load (50% Loading)
Standby Efficiency
ErP Lot 3 2014
Protection
OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature
0-40°C
Regulatory
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF
100,000 Hours
Warranty
10 Years
