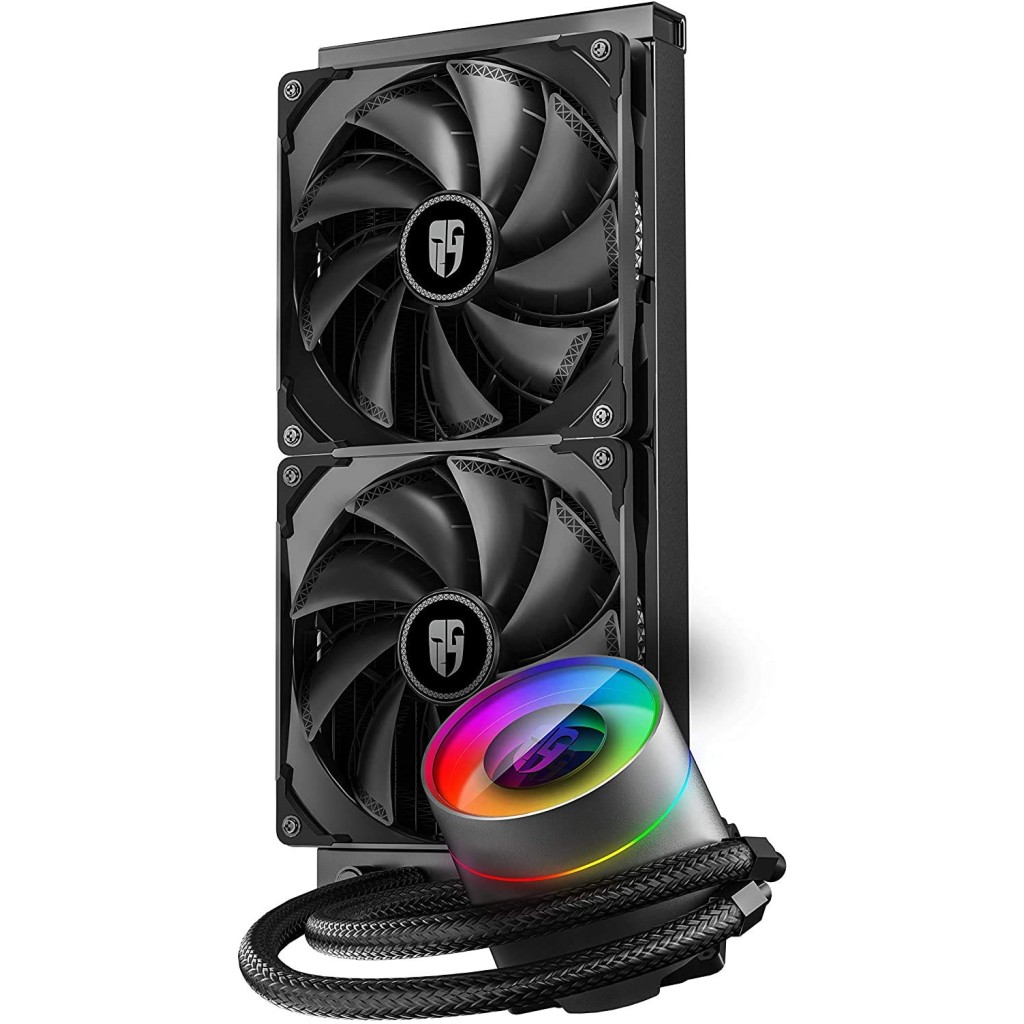

Deepcool Castle 280 EX

Features

• Anti-leak Tech Inside, exclusively safe.
• 25% more skived fins on the back side of the copper base, the heat absorption area extensively increased.
• Flow route optimized to reduce operation noise and energy loss.

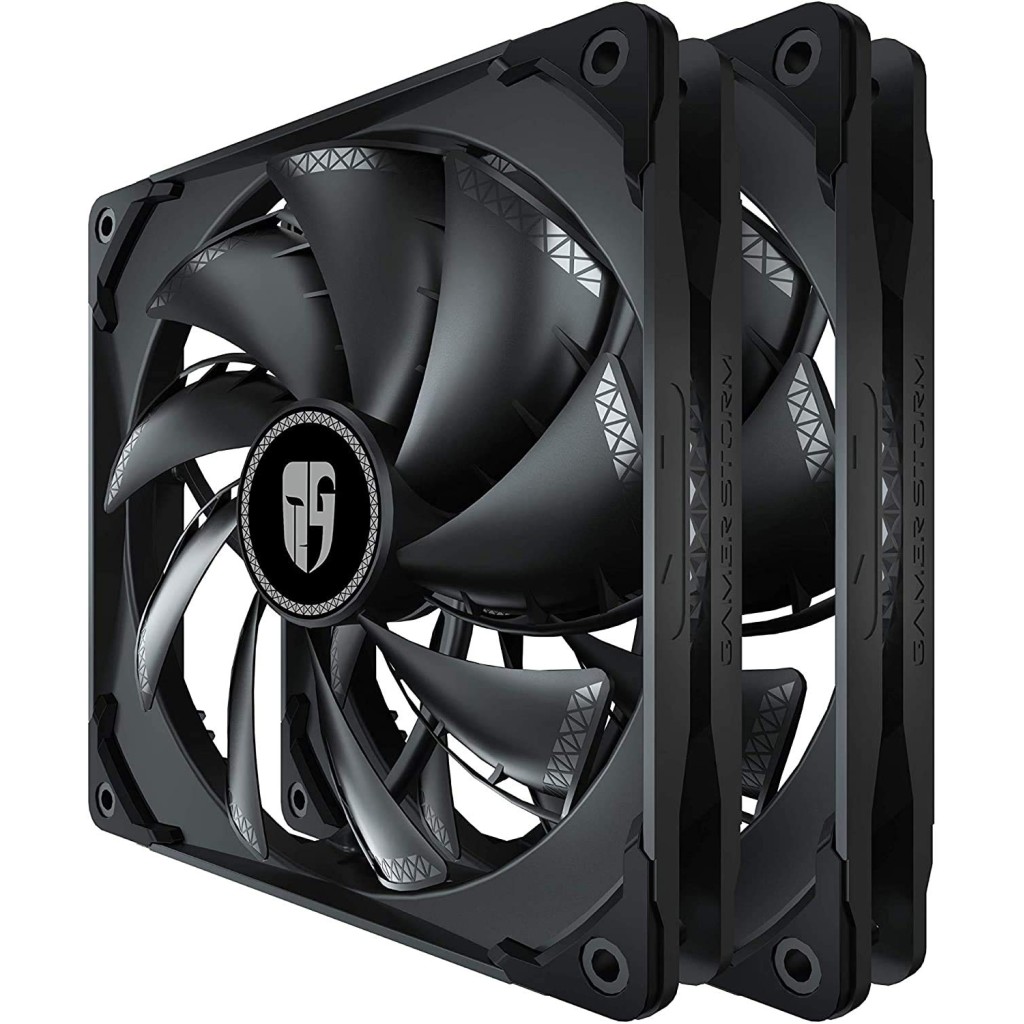

• 2 specially tuned TF120 S fans are included (in matching the radiator’s properties).
• Customizable Logo, exciting DIY experience.
• Ultra large copper base, extensive compatibility (including TR4).
• 5V Addressable RGB, adjustable through motherboard or the included controller.



  Brands	Deepcool
  Intel	LGA20XX/LGA1200/1151/1150/1155/LGA1366
  AMD	TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
  Pump Dimensions	86×75×71 mm
  Radiator Dimensions	322×138×27 mm
  Radiator Material	Aluminum
  Tube length	380 mm
  Pump Speed	2550 RPM±10%
  Pump Noise	17.8 dB(A)
  Pump Connector	3-pin
  Pump Rated Voltage	12 VDC
  Pump Rated Current	0.2 A
  Pump Power Consumption	2.4 W
  Fan Dimensions	140×140×25 mm
  Fan Speed	400~1600 RPM±10%
  Fan Airflow	97.03 CFM
  Fan Air Pressure	2.00 mmAq
  Fan Noise	≤39.8 dB(A)
  Fan Connector	4-pin PWM
  Bearing Type	Hydro Bearing
  Fan Rated Voltage	12 VDC
  Fan Power Consumption	3.6 W
  LED Type	Addressable RGB LED
  LED Connector	3-pin(+5V-D-G)
  LED Rated Voltage	5 VDC
  LED Power Consumption	2.25 W（PUMP）
  Warranty	3 Years
