- Stock: Out Of Stock
- Model: MLX-D36M-A25PZ-R1
- SKU: TLG-004092
- UPC: 884102112270
- EAN: 4719512139950
More from this brand

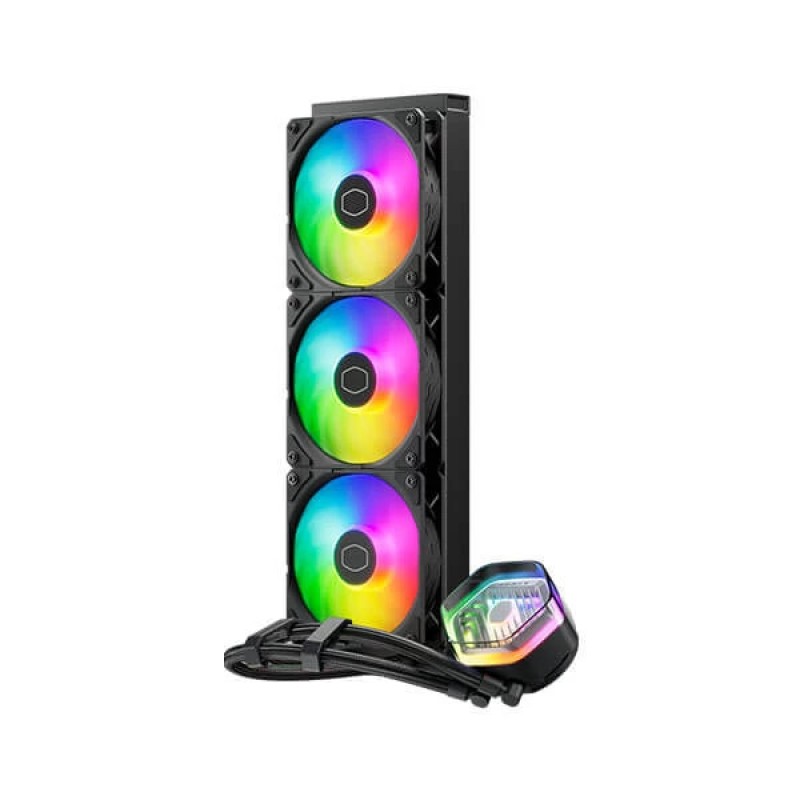

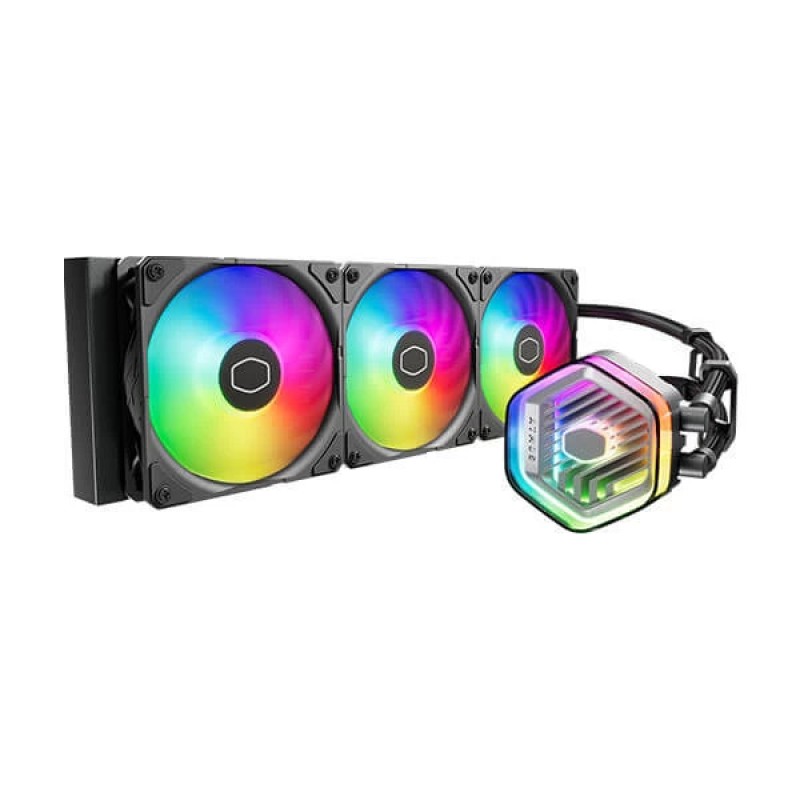

MasterLiquid 360 Atmos. The next generation AIO liquid cooling is here with Atmos is our forward-thinking, innovative take on what an AIO cooler can and should be. The exceptionally silent performance is provided by our SickleFlow Edge fans. An optimized user experience from unboxing to the MasterCTRL software. A pump top cover fully customizable with your own 3D-printed creations. Eco-friendly construction is implemented throughout. Our signature dual chamber pump design is refined. The Atmos represents the best of the best in modern AIO liquid cooling, a full 360 degrees of cool.
Refined dual chamber design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to the CPU hot spot.
IMPROVED QUALITY
Fully automated production and assembly of the pump with fully recorded production history.
Fully customizable
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides unprecedented creative freedom.
Eco-friendly construction
The pump top cover has been constructed from recycled plastic materials, while 35% of the cooler's metal materials are recyclable. Along with sustainable packaging materials and a 30% reduction in total packaging size, the Atmos is an eco-pioneer.
Sickleflow Edge 120 fans
Pre-installed SickleFlow Edge 120mm fans further improve cooling performance and simplify user installation.
Optimized user experience
With features such as our streamlined MasterCTRL software and modernized packaging techniques, Atmos is bringing an overhauled, and smoother, user experience.
FULLY CUSTOMIZABLE
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides unprecedented creative freedom.
Tube clips included
Tube clips are included to improve and strengthen your cooler setup.
Specification:
| Model | MLX-D36M-A25PZ-R1 |
| Exterior Color | Black |
| CPU Socket | LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 × 119 × 27.2 mm / 15.5 × 4.7 × 1.1 inch |
| Pump Dimensions | 84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 12 dBA (Max) |
| Pump Connector | 4-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.84W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | ARGB |
| Fan Speed | 690-2500 RPM ± 10% |
| Fan Airflow | 70.7 CFM (Max) |
| Fan Noise Level | 27.2 dBA (Max) |
| Fan Pressure | 3.61 mmH₂O (Max) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan MTTF | >160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2A |
| Fan Safety Current | 0.3A |
| RAM Clearance | N/A |
| Series | MasterLiquid |
| Cooler Type | Liquid Cooler |
| Radiator Size | 360 |
| Warranty | 5 years |
