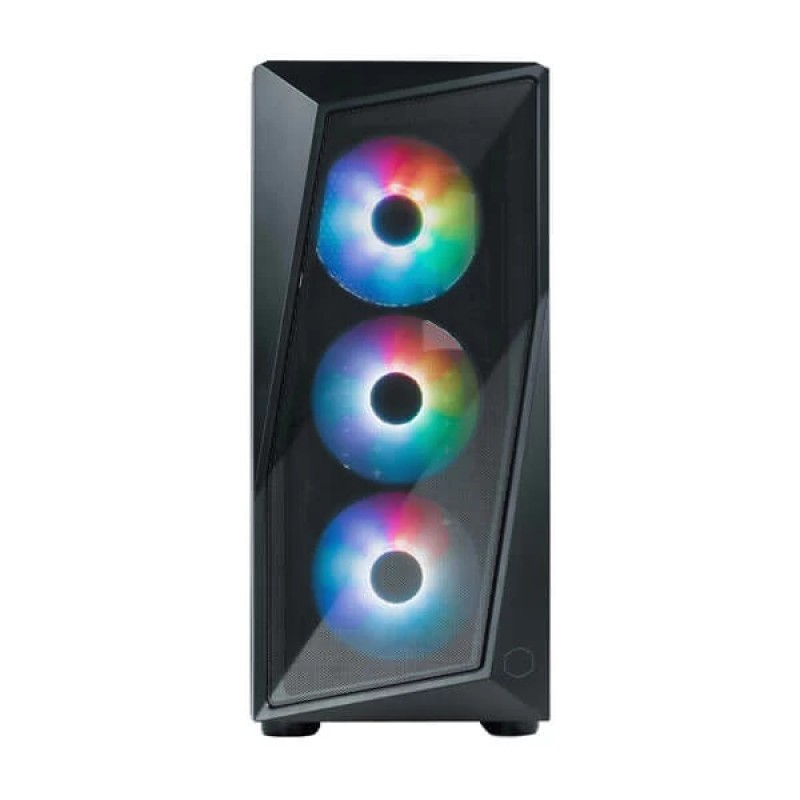

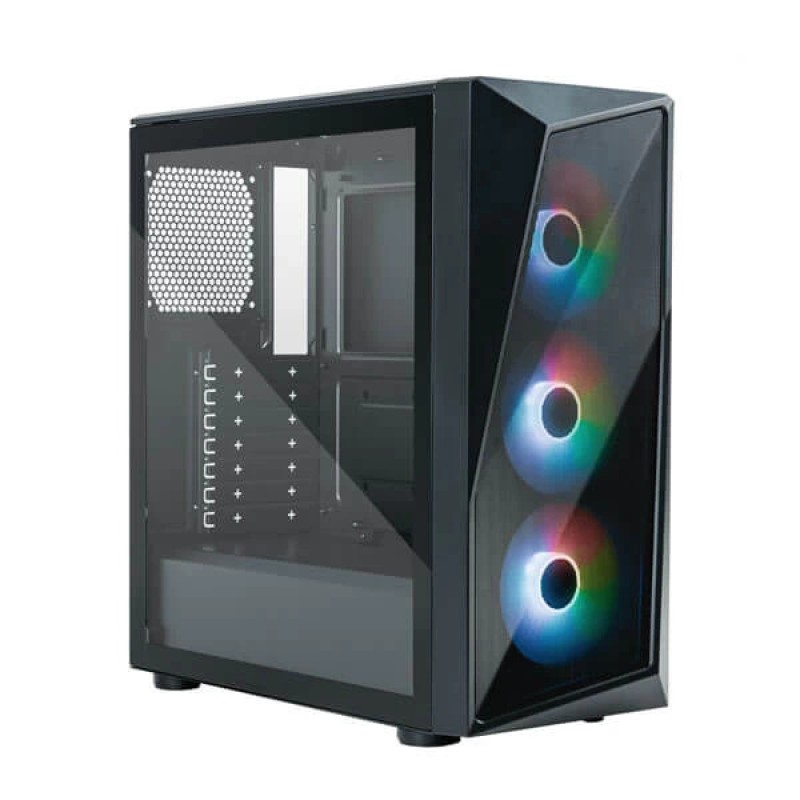

CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.
- Three 120mm ARGB Fans Included
- Mesh Geode Front Panel
- Versatile Cooling Options
- Full Black Coating & PSU Cover
- Breathable Power Supply Shroud
Three 120mm ARGB Fans Included
Three pre-installed 120mm ARGB fans ensure stunning aesthetics, eye-catching design, and thermal excellence.
Mesh Geode Front Panel
Inspired by asymmetrical crystal formations, the mesh front panel offers generous intake and efficient dust filtration.
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover
Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.
Room For Upgrades
Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades.
|Materials - Exterior||Steel, Plastic|
|Materials - Left Side Panel||Tempered Glass|
|Dimensions (L x W x H)||439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions)|
|Volume||43.34L (Exlc. Protrusions)|
|Motherboard Support||Mini ITX, Micro ATX, ATX|
|2.5" / 3.5" Drive Bays (combo)||2|
|2.5" Drive Bays||2|
|I/O Panel||1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm Headset Jack (Audio+Mic)|
|ARGB Controller||CF120P (integrated with fan) or M/B|
|Pre-installed Fans - Front||1x CF120P ARGB + 2x CF120S ARGB|
|Fan Support - Top||2x 120mm, 2x 140mm|
|Fan Support - Front||3x 120mm, 2x 140mm|
|Fan Support - Rear||1x 120mm|
|Radiator Support - Top||120 / 240mm* (*RAM height below 35mm)|
|Radiator Support - Front||120mm, 140mm, 240mm, 280mm|
|Radiator Support - Rear||120mm|
|Clearance - CPU Cooler||161mm|
|Clearance - PSU||160mm|
|Clearance - GFX||350mm (w/o front fans & radiator)|
|Dust Filters||Top, Bottom|
|Power Supply Support||Bottom Mount, ATX|
