The Saber's Edge
With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential.
Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards.

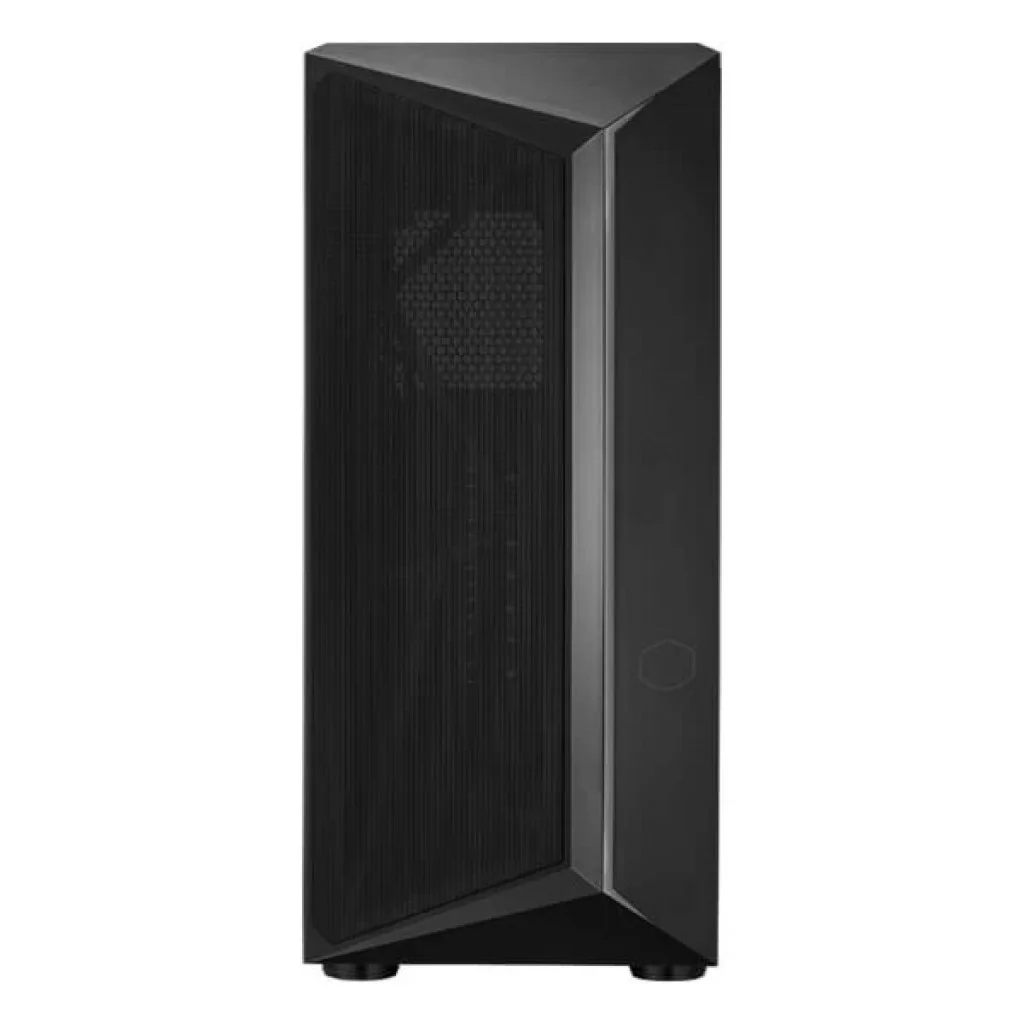

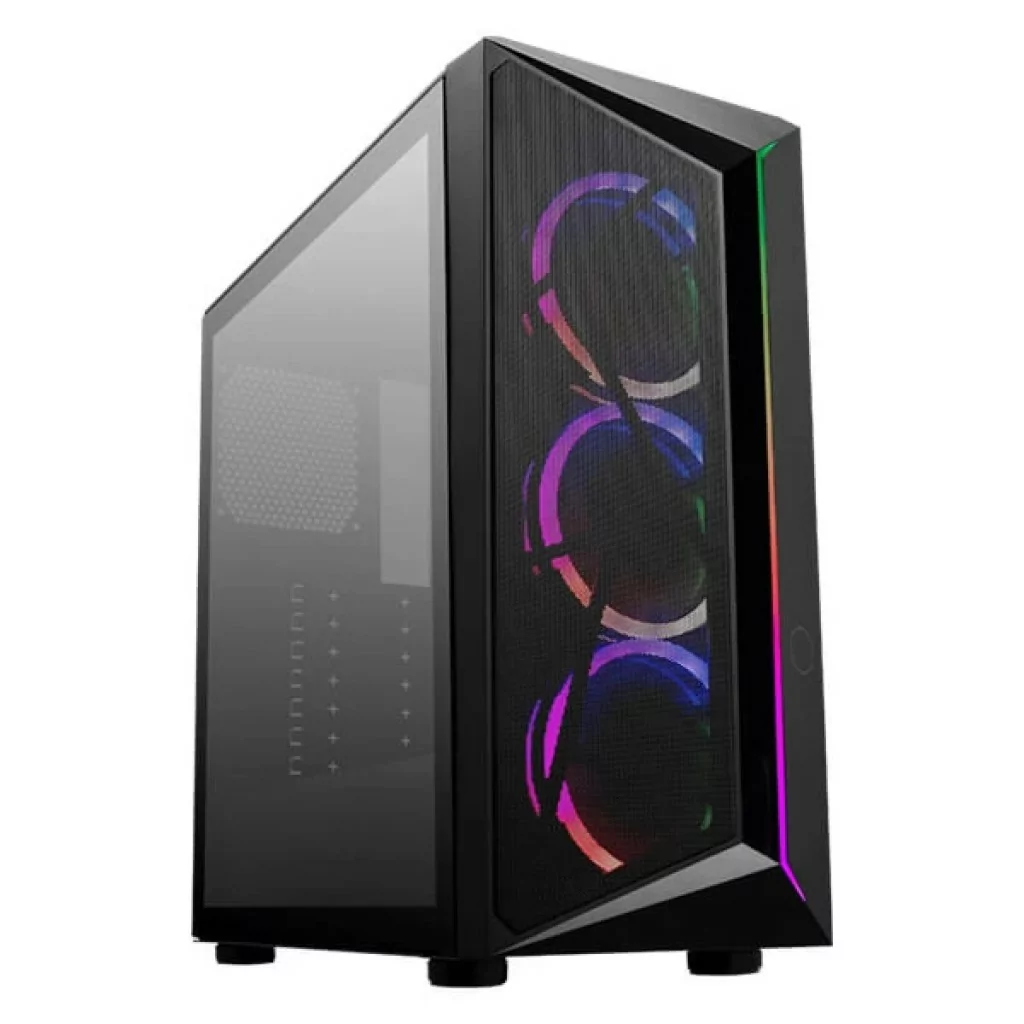

A glowing ARGB edge is cut into the clean geometry of the front panel
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Large Filtered Intakes
The front panel is constructed with a substantially large, unrestricted intake
Full Black Coating & PSU Cover
Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom,also with the possibility of installing passively cooled power supplies.
Room For Upgrades
Support for up to a 350mm graphics card, a 162mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
|Materials||Steel, Plastic, Tempered Glass|
|Dimensions (L x W x H)||445 x 204 x 463mm (incl. Protrusions), 436 x 204 x 448mm (excl. Protrusions)|
|Volume (exlc. Protrusions)||39.85L|
|Motherboard Support||Mini ITX, Micro ATX, ATX|
|2.5" / 3.5" Drive Bays (combo)||2|
|2.5" Drive Bays||2|
|I/O Panel||1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm Headset Jack (Audio+Mic), 1x ARGB Controller|
|Pre-installed Fans - Front||3 x 120mm ARGB Fan (CP510-KGNN-S00)|
|Fan Support - Top||2x 120mm, 2x 140mm|
|Fan Support - Front||3x 120mm, 2x 140mm|
|Fan Support - Rear||1x 120mm|
|Radiator Support - Top||120 / 240mm (Memory bar height limit 35mm, First assemble the memory and then assemble the Radiator)|
|Radiator Support - Front||120mm, 140mm, 240mm, 280mm|
|Radiator Support - Rear||120mm|
|Clearance - CPU Cooler||161mm|
|Clearance - PSU||160mm|
|Clearance - GFX||350mm (w/o front fans & radiator)|
|Dust Filters||Top, Bottom|
|Power Supply Support||Bottom mount, ATX|
