RTX 4000 Series

Based on NVIDIA’s latest Ada Lovelace architect NVIDIA presents new series of RTX 4000 series of graphics cards that deliver both graphics and performance than its predecessor RTX 3000 series double the amount. Experience the gaming world with our enhanced ray-tracing and ultra-high frame rate with low latency. Enjoy four times more the frame rate with the new DLSS 3 that comes with the RTX 4000 series, which speeds up performance by an order of magnitude. Superior temperature control keeps RTX 4000 series cool, quiet, and sublime so gamers can enjoy the games without distractions. NVIDIA’s RTX 4000 series delivers a luxurious experience with a fast and smooth frame rate experience with enhanced ray tracing with Ada Lovelace's third-generation RT cores and fourth-generation tensor AI cores, all fast and more efficient than before. The AD104 that comes with RTX 4080 12 GB, AD103 with RTX 4080 16 GB, and AD102 with RTX 4090 are the heart of the GeForce RTX 4000 series and are manufactured on TSMC’s 4nm process node, which provides a number of benefits over the RTX 3000 series Samsung 8nm process. The TSMC process nodes have higher transistor density, lower voltage requirement, and in turn increased efficiency against Samsung 8nm process nodes.

The launch of the NVIDIA’s new Geforce RTX 4080 GPU has led to exhilaration in the market. Officially announced in September 2022, we already know the RTX 4080 is coming this November, based on the AD 103GPU chip. The AD103 GPU is based on TSMC’s 4N Nvidia custom process means a 5nm-customized process. RTX 4080 has also the Ada Lovelace architecture same as the flagship RTX 4090. The Geforce RTX 4080 has 9,728 CUDA cores, providing 49 shader flops of power for traditional rasterized graphics, 304 Fourth Generation Tensor Cores offering 780 Tensor-TFLOPS (with Sparsity) for AI processing, and DLSS with 76 Third Generation Ada RT Cores capable of 113 RT-TFLOPS for powering next-gen ray-traced graphics packed with 16 GB of GDDR6X memory. Some of the authorized Geforce Distributors in India are https://www.nvidia.com/en-in/shop/wheretobuy-distribution/.  That includes us as well.

NVIDIA has packed so much more into RTX 4000 series graphics cards. Vursus Ampere, more GPCs with bigger Ada graphic cards, more TPCs, more SMs, and many more CUDA, RT, and tensor cores. Those cores had enhanced and boosted that increase the performance of RTX 4000 series graphic cards. The new RTX 4000 series graphic cards are also capable of hitting higher frequencies despite a massive increase in transistor counts. The big GA102 GPU used in cards such as the RTX 3090 Ti packs over 28 billion transistors, were the new top-end AD102 used in the RTX 4090 is comprised of approximately 76 billion transistors, which is nearly three times the total found in ampere. These additional transistors are used to enable some new features like Shader Executive Recording (SER), Displaced Micro-Meshes, Opacity Micro-Mask, FP8 inferencing, Optical Flow Accelerator, and DLSS 3. With Shader Executive Recording (SER) improves execution efficiency and double performance improvement with ray tracing. NVIDIA’s API tools also provide developers control of this feature, to best optimize their games.

Technological innovations of RTX 40 series GPU

·         Streaming Multiprocessors (SM) - The new SM delivers up to 2x performance and power efficiency.

·         3rd Generation RT Cores - 2x-ray tracing performance, delivering incredibly detailed virtual like never before.

·         4th Generation Tensor Cores and Optical Flow – Enable and accelerate transformative AI technologies, including Nvidia DLSS and new frame rate multiplier Nvidia DLSS 3.

·         Shader Execution Reordering (SER) – SER improves ray tracing operations by 2x, boosting your fps up to 44%

·         DLSS 3 – A breakthrough in AI-powered graphics that massively boosts performance while using AI to generate high-quality frames.

·         Dual AV1 Video Encoders - The new 8th Gen Nvidia Encoder (NVENC) with AV1 is 40% more efficient than the previous H.264 making it better for streamers and broadcasters.

·         Nvidia Studio – Unmatched performance in 3D rendering, live streaming, and video editing.

Zotac GeForce RTX 4080 Features and Specifications

Established in the year 2006 Zotac is a manufacturing company, which manufactures Pc-related products. The products include Graphic Cards, industry-leading mini-PCs, and innovative accessories concerning PCs globally. The company aims to provide refined quality products concerning graphic cards, mini-PCs make the connection between people fast moving based on technologies and groundbreaking experiences. Zotac introduced a new graphics card design after the release of the RTX 40 series. They have the trinity lineup and AMP Extreme AIRO. Zotac GeForce Rtx 4080 16 GB Trinity OC Gaming Graphics Card has been manufactured by the Zotac Company for a smooth gaming experience. For the new RTX 40 series the packaging has changed too, the box pack is huge with eye-catching packaging. Now if we look inside the box, Zotac has outdone them in terms of the body type of the card. It is new and not your regular rectangular brick-type design. It has a curvy body with rounded edges.

The card is huge with14″ x 5.9″ x 2.8″ or 356.1mm x 150.1mm x 71.4m in length with a thick aluminum heatsink and Zotac’s metal backplate. It is a triple fan setup card as the name Zotac Trinity suggests, but the card size varies sizes the middle fan is a bit smaller than the side fans. Unlike the Airo model wherein the middle fans setup to spin in opposite anti-clockwise directions but here all three fans spin in the same clockwise direction. Like most current, Gen cards Trinity OC features a fan stop feature with a blow-through rear design. For the output ports, it has three Display Ports 1.4a, and one HDMI 2.1 port. The card takes the new infamous 16-pin 12VHPWR and comes with an adapter. We are the registered Zotac partner in India https://www.zotac.com/in/where_to_buy?country=746/

The Zotac Trinity features a similar design as the Zotac’s flagship line-up the AMP Extreme AIRO model. The Zotac Geforce Trinity OC features Zotac’s IceStorm 2.0 advanced cooling system.  However, if RGB is the main factor for you then it has less RGB lighting than AMP Extreme AIRO but on other hand comes at a lower price. Want to get your hands on this card at a cheaper cost;https://tlggaming.com/zotac-gaming-rtx-4080-trinity is selling it at Rs. 1,2x,xxx.

Graphics Card

GeForce RTX 4080

GeForce RTX 3080 Ti

RTX 3080 10GB

Fabrication Process

TSMC 4N
NVIDIA Custom Process

Samsung 8nm
8N NVIDIA Custom Process

Samsung 8nm
8N NVIDIA Custom Process

Transistor Count

45.9 billion

28.3 billion

28.3 billion

Architecture

Ada Lovelace

Ampere

Ampere

GPU

AD103

GA102

GA102

Graphics Processing Clusters

7

7

6

Texture Processing Clusters

38

40

34

Streaming Multiprocessors

76

80

68

CUDA Cores

9728

10240

8704

Tensor Cores

304 (4th Gen)

320 (3rd Gen)

272 3rd gen

RT Cores

76 (3rd Gen)

80 (2nd Gen)

68 2nd gen

Texture Units

304

320

272

ROPs

112

112

96

Boost Clock

2505 MHz

1665 MHz

1.71 GHz

Memory Clock

11200 MHz

9500 MHz

1.44 GHz

Memory Data Rate

22.4 Gbps

19 Gbps

19 Gbps

L2 Cache Size

65536 KB

6144 KB

5120 KB

Total Video Memory

16 GB GDDR6X

12 GB GDDR6X

10 GB GDDR6X

Memory Interface

256-bit

384-bit

320-bit

Total Memory Bandwidth

716.8 GB/s

912 GB/s

760.3 GB/s

Minimum Power Supply

750 Watts

750 Watts

750W

Total Graphics Power (TGP)

320 Watts

350 Watts

320 W

PCI Express Interface

Gen 4

Gen 4

Gen 4



The new NVIDIA GeForce RTX 4000 will also feature compact PCBs like its older RTX 3000 series that can be outfitted with up to 20 power phases and fill PID transient control is supported that increases power management response time by ten times. The RTX 4000 series can respond to workload demands faster than previous-generation graphic cards and overall power, delivery is more reliable and consistent. The NVIDIA Reflex on RTX 4000 delivers the lowest latency and best responsiveness so gamers can gain a competitive advantage. The Ray Tracing with Ada architecture stimulates how light behaves in the real world. NVIDIA Studio helps creators to take their creative projects to next level with unmatched performance in 3D rendering, video editing, and graphic design with the help of the power RTX for AI-assisted creative workflows.

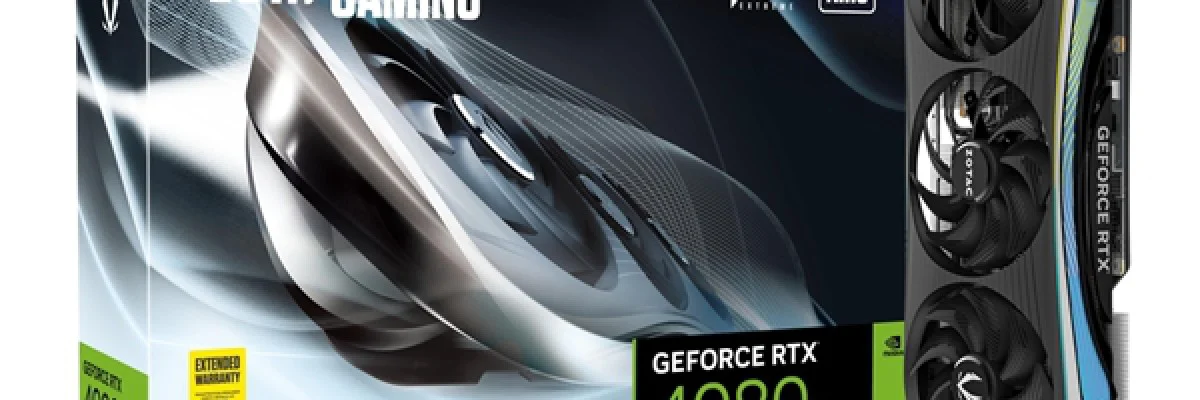

On the other hand, the Zotac RTX 4080 AMP AIRO provides more features than any other edition of the RTX 4080 graphics card. This card is very divisive and many will love the sweeping circled edge, however, some also might not like it at all. We believe that this GPU in general looks great as it also comes with a backplate made of aluminum. The design of this card is also great as the flow-through design helps the air to pass throughout the card. One can also see the retention plate of the card. The Zotac RTX 4080 AMP AIRO is also comes with a bar across the side, tons of RGB lighting, and a ring that goes around the edges. The bar has the logo of Zotac and that too comes with RGB lights.

The vapor chamber heatsink occupies a huge part of the card in Zotac RTX 4080 AMP AIRO and it is very close to the BIOS switch. Additionally, it also has an RGB header, which helps its user to gain easy control over it and the power port. The Zotac RTX 4080 AMP AIRO uses the connector 12VHPWR, which comes with an adopter that can be connected to three 8-pin PCIe connectors as an alternative to those who do not have a PSU with ATX 3.0. In the bottom part, one can see a fan shroud similar to a pebble equipped with 3 big fans, so that it can dissipate all the heat coming from the Zotac RTX 4080 AMP AIRO card. Compared to the RTX 4090 edition variants, the stickers provided on the fan are not in gold but in black.

For 4k gaming performance, the Zotac RTX 4080 AMP Extreme AIRO shows slightly better performance out of the card in comparison to the Founder’s Edition GPU. The difference is not huge. The modes with different BIOS settings do not really do much but it can be said that it is the



GPU   ZOTAC GAMING GeForce RTX 4080 AMP Extreme AIRO

CUDA Cores 9728

Clock speed    2565 MHz

Memory speed           22.4 Gbps

Memory          16GB GDDR6X

Memory bus width    256-bit

TDP    320W

Power input   16-pin 12VHPWR

Size     355.5mm x 149.6mm x 72.1mm (3.5 slot)

Display outputs         3x DisplayPort 1.4a, 1x HDMI 2.1



The model ZOTAC GAMING GeForce RTX 4080 16GB AMP Extreme AIRO has been built with modern aerodynamics which uses extreme AIRO so that the users can feel the world's most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture. The card has the capability to provide gamers with the ultimate experience in terms of gaming and performance with the highest use of modern technologies. Just like Trinity 800, the Extreme AIRO is also featured with NVIDIA Ada Lovelace Streaming Multiprocessors that help with a 2X level of performance and power efficiency. On the other hand, it is also backed by 4th Generation Tensor Cores that provide 2X AI performance and 3rd Generation RT Cores that provide 2X ray tracing performance. One difference that can be spotted in both models is that  Boost Clock Speed in Trinity 800 is 2520 while in the case of Extreme AIRO it is 2565. Another spot of difference that has been spotted is that the cooling efficiency in the case of Trinity 800 is 2.0 however; in the case of Extreme AIRO is 3.0 which provides the users with more cooling space at the time of use.

The interface area in the case of AMP Extreme AIRO is PCI Express 4.0 x16 and is supported by DirectX: 12 OpenGL: 4.6 Vulkan APIs. In terms of memory specifications, the card has a speed of 22.4 Gb/s and the configuration is 16 GB. The memory interface of the products is GDDR6X with a width of 256 bits and 736 GB/s of Bandwidth. The display support that is being provided by the product includes 3 x DisplayPort 1.4a and 1 x HDMI 2.1a I/O display with a digital resolution of 7680 x 4320 @ 120 Hz. in terms of power requirements, the maximum power consumption that is consumed by the product is 320W. The PCI power connectors consume 1 x 16-Pin and the recommended system power requirement for the products is 750W. The dimensions of the product are 5.9" / 149.9 mm in height, 14.00" / 355.6 mm in length, and 3.5 slots in width. Based on Ada Lovelace's architecture the product is designed to bring the power of real-time ray tracing with the use of AI in the PC programs.

The graphic card comes with the GPU Support Stand, 3-pin RGB Header Cable, 3x 8-pin-to-12VHPWR cable, and a Manual. The product with a Warranty of 3 years and a Metal die-cast RGB LED Backplate, Bundled with a GPU Support Bracket and an All-new FireStorm Utility. One of the major features that have been identified in this particular product is highly noise-optimized due to the presence of the 3.0 cooling system and this helps in the maximization of the airflow and heat dispersion. At the same time, the memory interface of the product makes it more attractive along with the feature of a real portrayal of virtual reality and a real-time experience in gaming for professional gamers. Another fact that has been discovered is that the price of the product is comparatively high with respect to the range of specifications. Thus, Zotac aims in providing customers with the best kind of experience in terms of mini PCs and a range of Graphics cards for professional gamers. The product comes within a price range of 135000 rupees and the link for the product is https://tlggaming.com/zotac-gaming-rtx-4080-amp-extreme-airo
