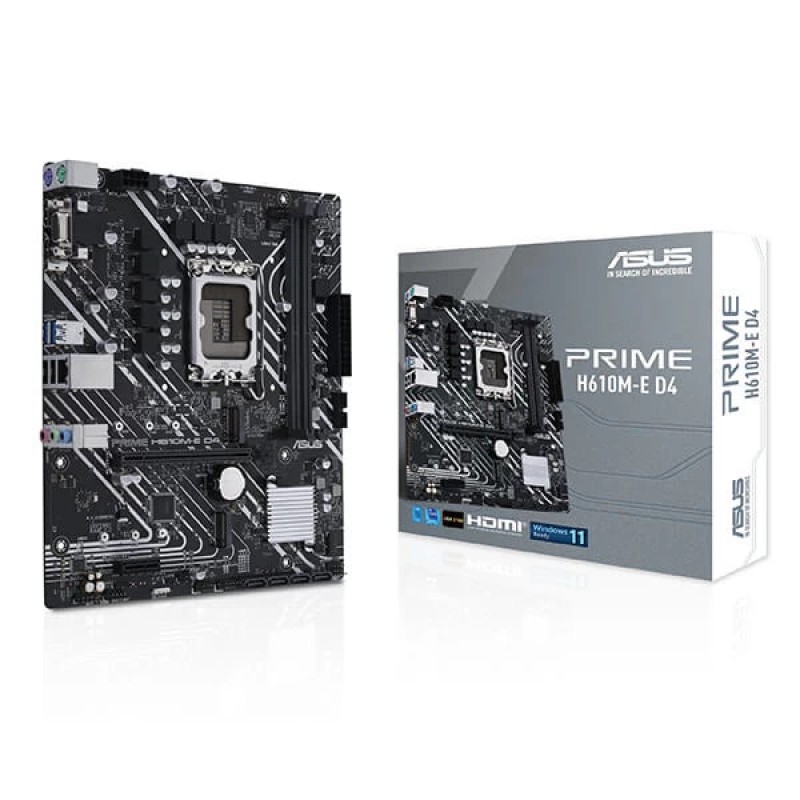

Asus H610M-E D4

Asus H610M-E D4
Out Of Stock
Asus H610M-E D4
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
  • Stock: Out Of Stock
  • Model: PRIME-H610M-E-D4
  • SKU: TLG-003578
  • EAN: 4711081514770
Rs.7,399.00
Ex Tax: Rs.6,270.34

Asus H610M-E D4 is an ASUS Prime series motherboard that is expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H610 provides users and PC DIY builders with a range of performance tuning options via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

COOLING

Prime H610 series is engineered with a heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Cooler by Design

Prime H610 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options.

Dual M.2 slots (up to 32 Gbps)

PRIME H610M-E D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe® 4.0

Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality, unlike anything you've ever experienced.

Audio Shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks

Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Armory Crate

Armory Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armory Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlights to help you stay in touch with the ASUS community.

Q-LED Core

The Q-LED Core display produces light patterns by the power LED during the Power-On Self-Test (POST) which can help users troubleshoot potential issues.

Specifications:

CPUIntel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for the CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel® H610 Chipset
Memory2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics1 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion SlotsIntel® 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet1 x Realtek 1Gb Ethernet
USBRear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI® port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard (Purple) port
  • 1 x PS/2 Mouse (green) port
Internal I/O ConnectorsFan and Cooling related
  • 1 x 4-pin CPU fan header
  • 2 x 4-pin Chassis Fan headers
Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x COM Port header
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
Special FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header
Software FeaturesASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS128 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
AccessoriesCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide
Operating SystemWindows® 11 64-bit, Windows® 10 64-bit
Form Factor
  • mATX Form Factor
  • 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Warranty3 Years
General
LAUNCH YEAR2022
MODELPRIME-H610M-E-D4
SERIESH610
TYPEmATX
WARRANTY3 Yrs
Speed
CLOCK SPEEDDDR4 - 3200MHz
Technical
CHIPSETLGA1700
LED TYPEQ-LED
