- Stock: Out Of Stock
- Model: ACFAN00118A
- SKU: TLG-003587
More from this brand

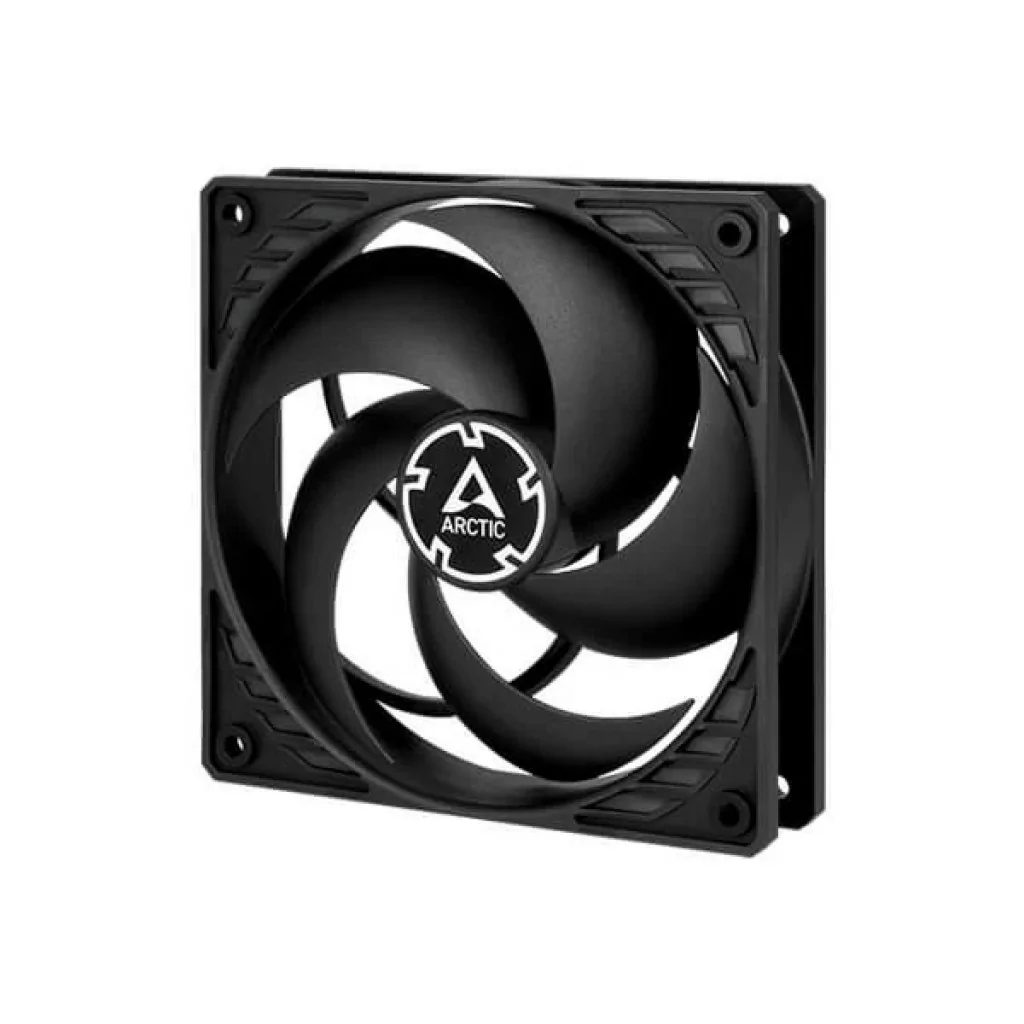

During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans.
In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

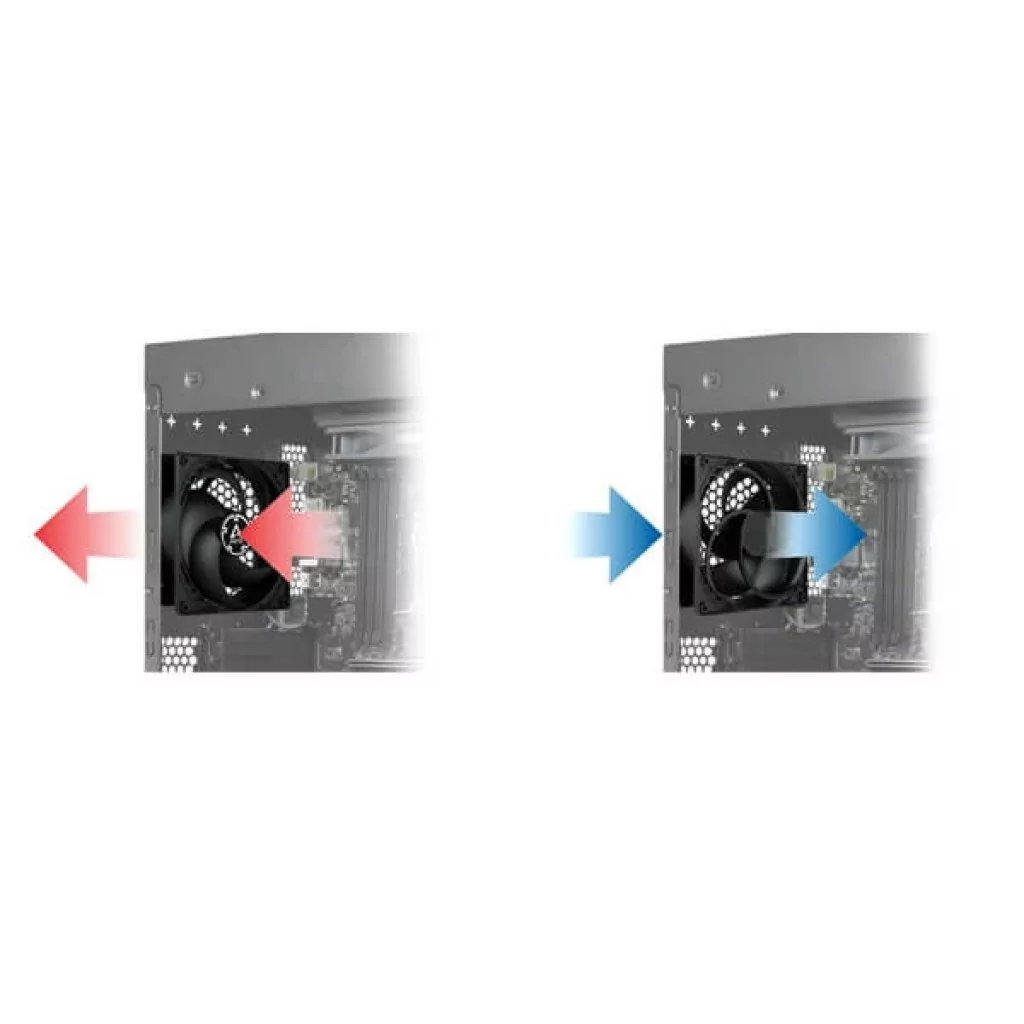

Two Way Installation
Push warm air out of the case
Pull cool air into your case
Specifications:
| Performance | |
| Fan Speed | 1800 rpm |
| Airflow | 56.3 CFM/ 95.7 m³/h |
| Static Pressure | 2.20 mm H₂O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0 - 40 °C |
| Fan | |
| Fan Frame | Standard |
| Control Type | Fixed Speed |
| Connector | 3-Pin-Connector |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 2.8 V |
| Current/ Voltage | 0.20 A / 12 V |
| Cable Lenght | 400 mm |
| Size & Weight | |
| Length | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 139 g |
| Warranty | 6 Years |
