- Stock: In Stock
- Model: 100-1000001084WOF
- SKU: TLG-004316
- UPC: 730143315289
- EAN: 730143315289
More from this brand

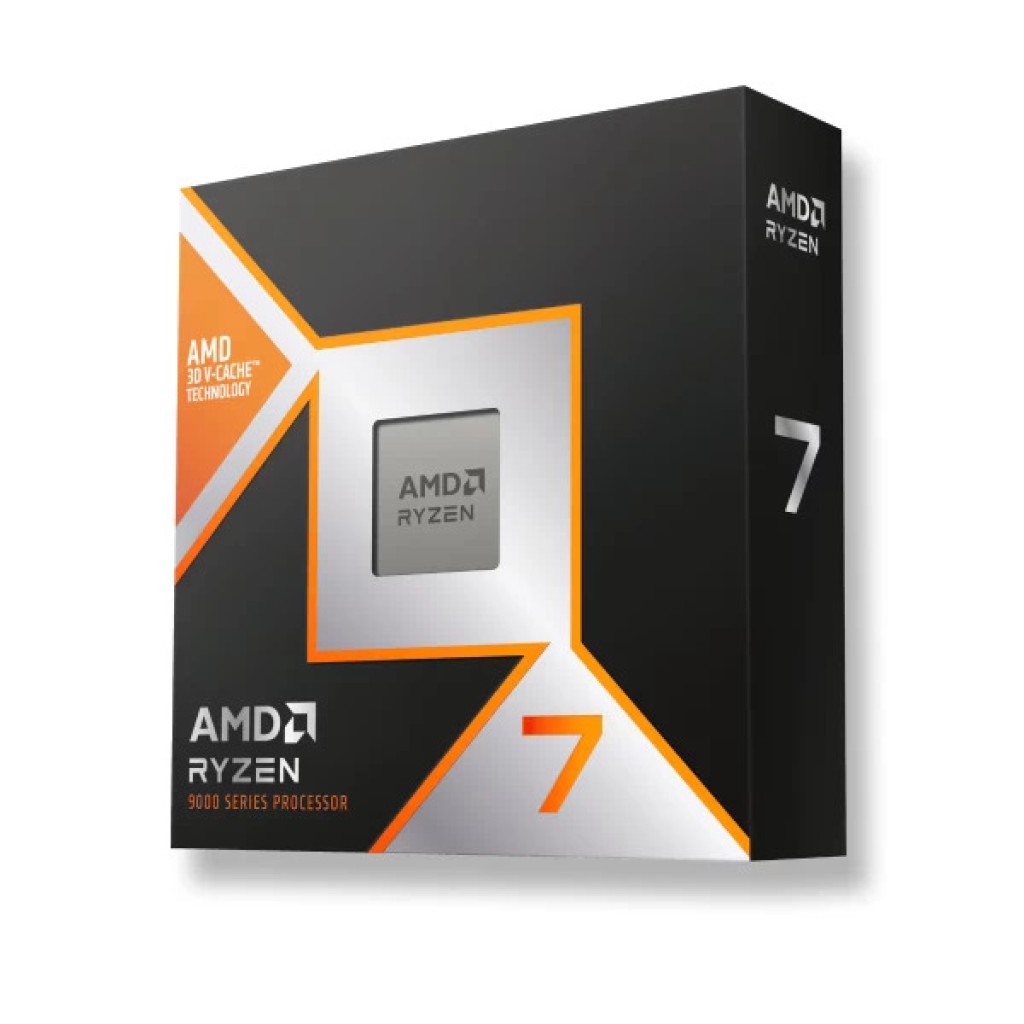

AMD Ryzen™ 7 9800X3D – Extreme Gaming Performance with 3D V-Cache & Zen 5 Power
Elevate your gaming and productivity with the AMD Ryzen™ 7 9800X3D, an advanced 8-core, 16-thread processor built on the cutting-edge Zen 5 architecture and empowered by AMD 3D V-Cache™ technology. With a massive 96MB of L3 cache, ultra-high boost clocks, and PCIe® 5.0 + DDR5 support, the 9800X3D is engineered for elite performance in today’s most demanding games and creative workloads.
⚙️ Key Specifications:
Cores/Threads: 8 Cores / 16 Threads
Base Clock: 4.7 GHz | Boost Clock: Up to 5.2 GHz
Cache: 640KB L1, 8MB L2, massive 96MB L3 3D V-Cache™
TDP: 120W
Unlocked for Overclocking with support for AMD EXPO™, Precision Boost Overdrive, and Curve Optimizer
Architecture & Compatibility:
Built on TSMC 4nm FinFET process (Zen 5 architecture)
Socket AM5, compatible with new and legacy chipsets: X870E, X870, B850, B840, X670E, B650E, and more
DDR5 Memory Support up to 192GB – 5600 MT/s (max)
PCIe® 5.0 Ready – High-speed connectivity for GPUs and NVMe SSDs
Unmatched Gaming with 3D V-Cache™:
Experience ultra-low latency and high frame rates with 96MB of 3D-stacked L3 cache, designed to deliver significantly improved performance in gaming titles that benefit from larger cache capacity.
Integrated Graphics & Features:
Integrated AMD Radeon™ Graphics (2 Cores @ 2200 MHz)
USB Type-C® with DisplayPort™ Alt Mode
NVMe RAID support (RAID 0/1/5/10)
ECC memory support (motherboard dependent)
❗ Important Note:
Cooler not included. Liquid cooling is recommended to unlock the full thermal and performance potential of this CPU.
✅ Why Choose AMD Ryzen™ 7 9800X3D?
Whether you're a pro gamer, content creator, or performance enthusiast, the Ryzen 7 9800X3D gives you elite-level speed and responsiveness. Backed by AMD's innovation and a 3-year warranty, it's your key to a future-ready PC build.
Order now from TLG Gaming and experience the cutting edge of AMD Zen 5 performance with 3D V-Cache advantage.
Specification:
| Model | AMD Ryzen 7 9800X3D |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops , Boxed Processor |
| Architecture | Zen 5 |
| of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| of Threads | 16 |
| Max. Boost Clock | Up to 5.2 GHz |
| Base Clock | 4.7 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 28 , 24 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Key Features | |
| Supported Technologies | AMD EXPO Technology , AMD Ryzen Technologies |
| Warranty | 3 Years |
