- Stock: Out Of Stock
- Model: MCB-K501L-KANN-SR1
- Weight: 6.00kg
- SKU: TLG-001815
- EAN: 4719512094600
- SERIESMASTERBOX
- TYPEMID TOWER
- 5.25" BAYS0
- 3.5" BAYS2
- 2.5" BAYS2
- EXPANSION SLOTS7
- MAX RADIATOR SUPPORT360
- MAX FAN SUPPORT6
- COLORBLACK
- SIDE PANELTRANSPARENT

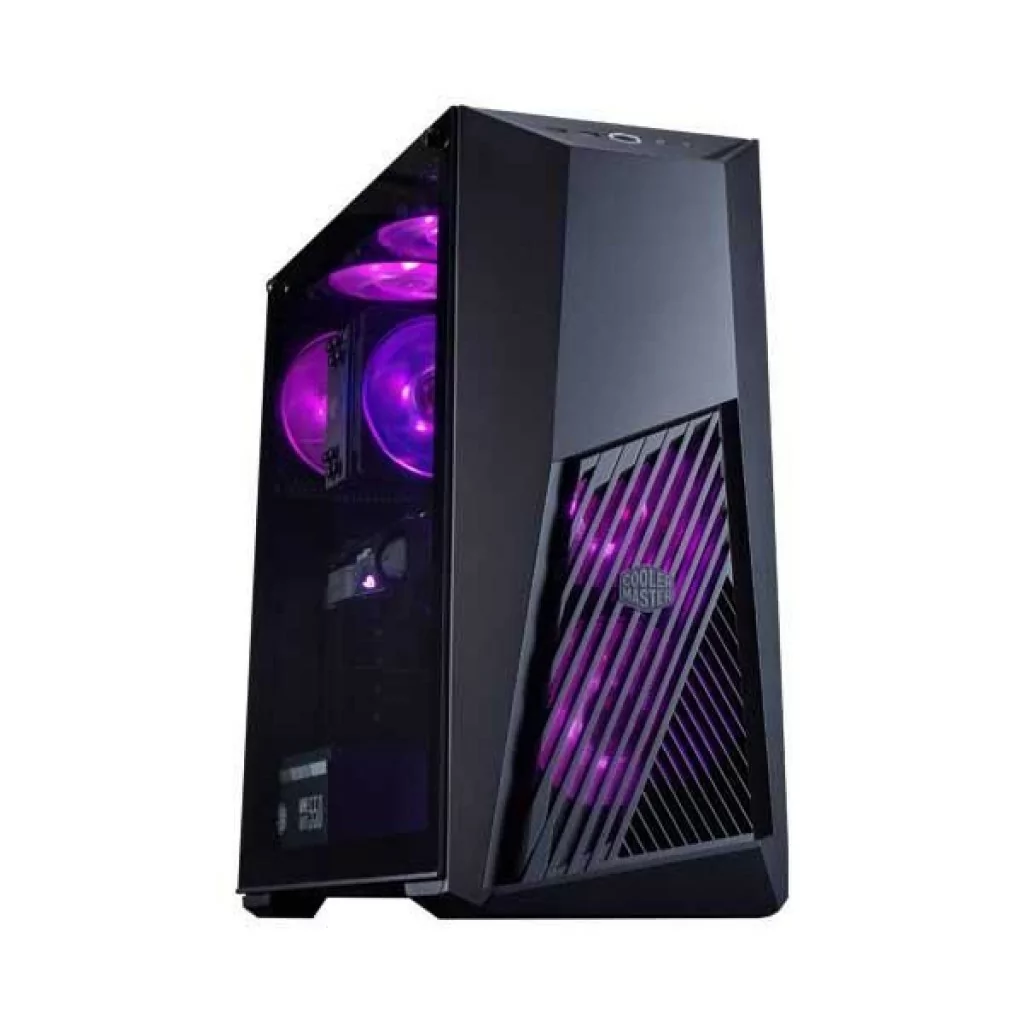

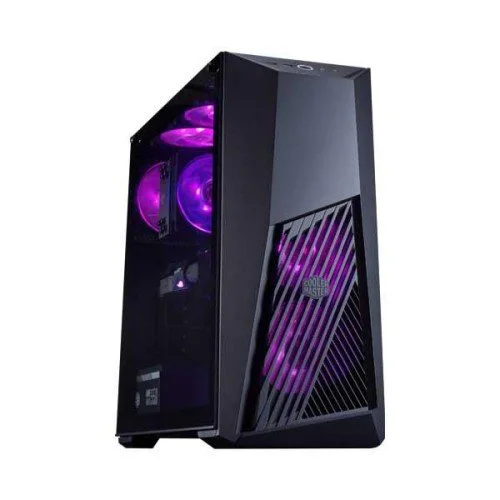

Features
Gaming is in the core of the MasterBox K501L RGB. Donning an RGB fan against the angled front panel ventilation speaks to its aggressive character. Support for gaming hardware like long graphics cards, plenty of storage, and liquid cooling take priority in the K501L while still leaving room for future upgrades.
Compatibility for high-performance hardware makes the K501L the essential start in building a monster rig, competitively priced to point the focus toward upgrades.

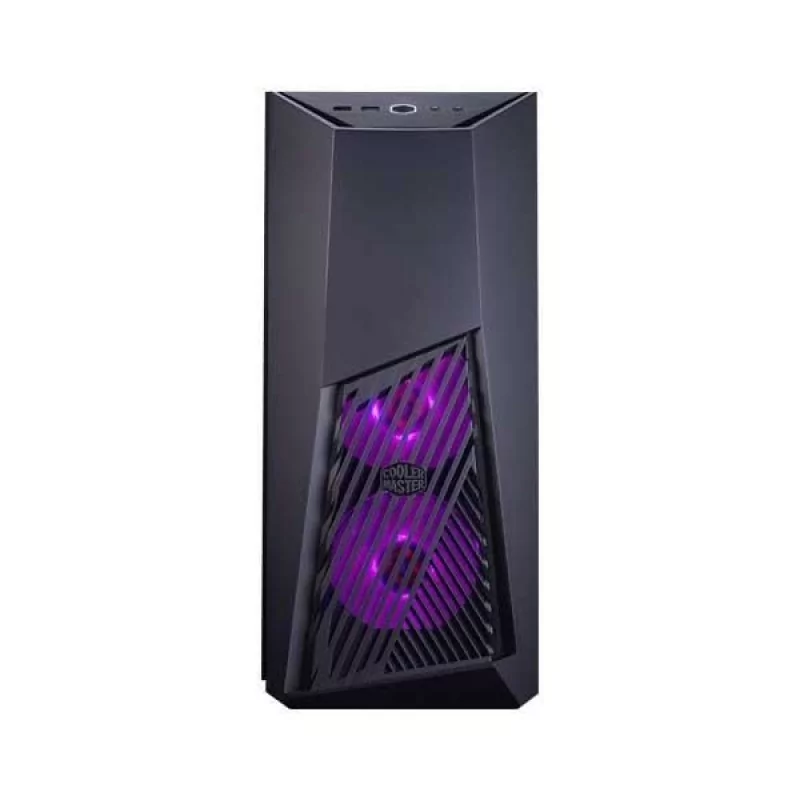

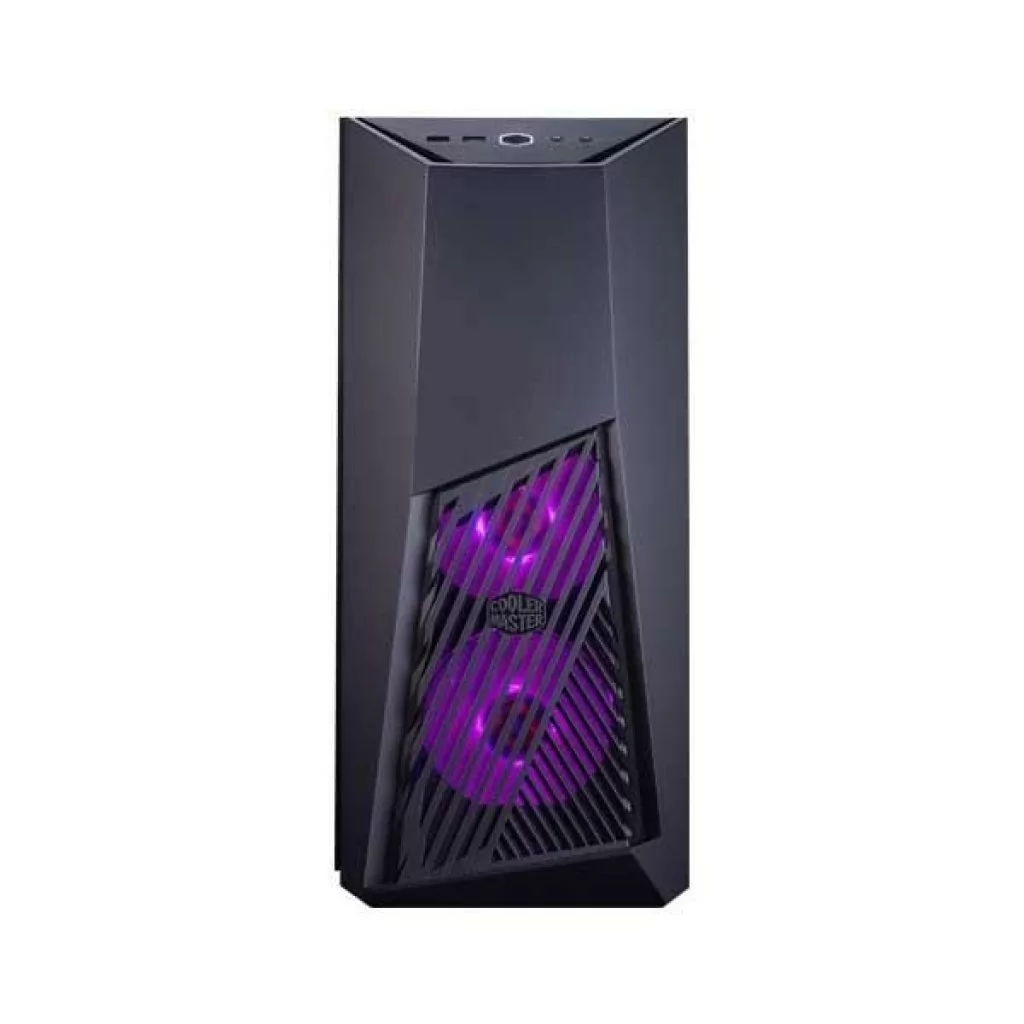

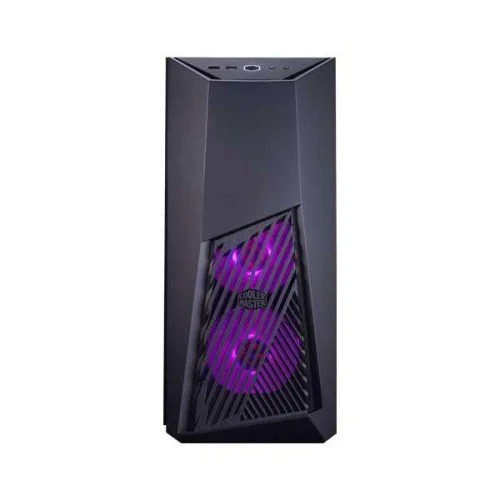

Angled Ventilation – The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.
RGB Fan & Power Button – Paired with lighting on the power button, an RGB fan glows through the angled ventilation; a testament to its gamer core.
Top Panel Ventilation – For increased thermal performance, the top panel is ventilated to support cooling components and filtered to protect against dust.
Cooling Support – Support for up to 6 fans and top, front, and rear water cooling ensure a high capacity for thermal performance.

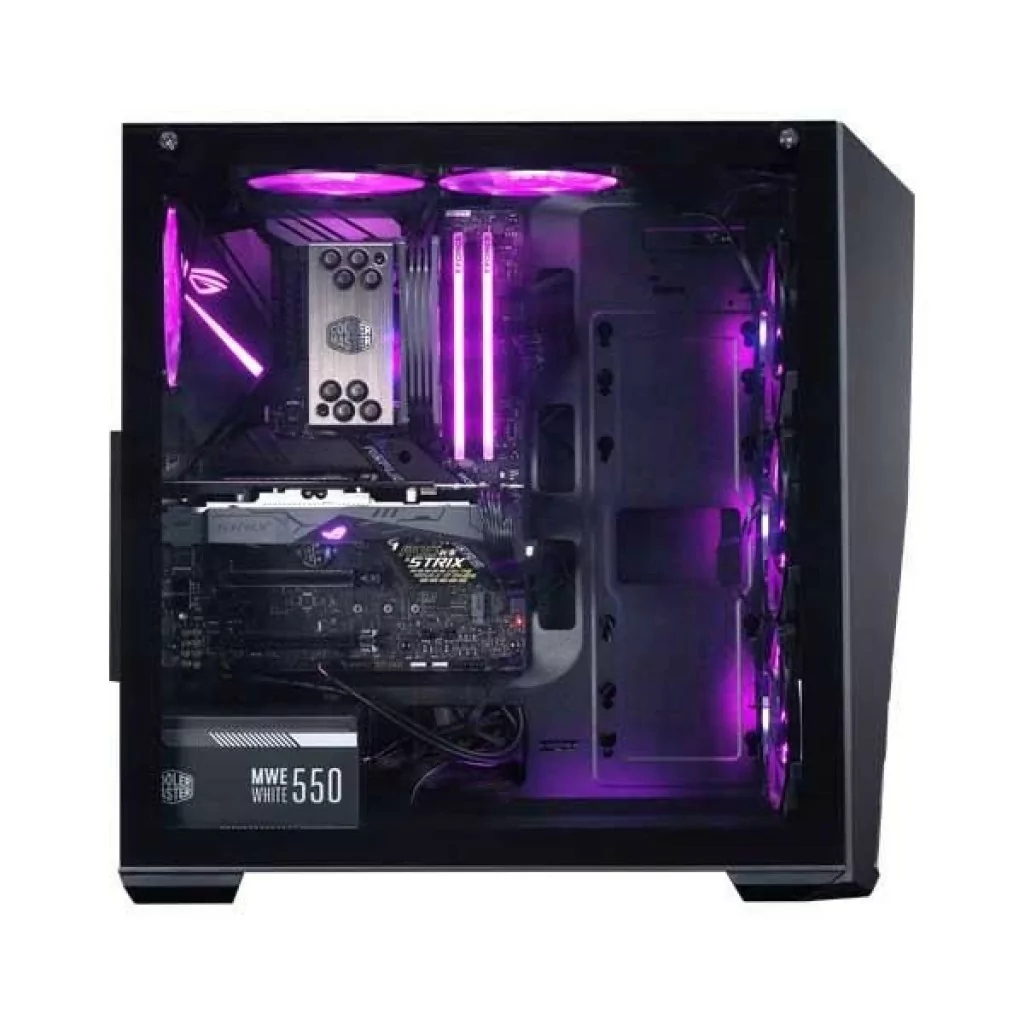

Edge-to-Edge Transparent Side Panel – Showcase your build through the transparent side panel.
Clean Routing Space – There is a 19~27mm width of space behind the motherboard tray to efficiently manage and organize cables.
Versatile Component Support – Clearances of 410mm for the graphics card, 165mm for CPU coolers, and 200mm for PSUs offer room for powerful builds and future upgrades.
Specifications
Product Name | MasterBox K501L v2 | |
Product Number | MCB-K501L-KANN-SR1 | |
Exterior Color | Black | |
Materials | Exterior | Plastic |
Side Panel | Acrylic | |
Dimensions (L x W x H) | incl. Protrusions | 499.5mm x 217mm x 468.5mm |
excl. Protrusions | 428.7mm x 205mm x 458.5mm | |
Volume (Liters excl. Protrusions) | 50.8L | |
Motherboard Support | Mini-ITX,Micro-ATX,ATX | |
Expansion Slots | 7 | |
Drive Bays | 5.25“ ODD | 0 |
3.5" / 2.5" | 2(Max.3) | |
2.5” SSD | 2(Max.3) | |
I/O Panel | USB Ports | USB 3.2 Gen1 x 1 (USB 3.0) USB 2.0 x 1 |
Audio In / Out | 1 x 3.5mm Audio Jack 1 x 3.5mm Mic Jack | |
Other | N/A | |
Pre-installed Fan(s) | Top | N/A |
Front | 120mm x 1 (RGB ) | |
Rear | 120mm x 1 (Black ) | |
Bottom | N/A | |
Fan Support | Top | 120mm x 2,140mm x 2 |
Front | 120mm x 3,140mm x 2 | |
Rear | 120mm x 1 | |
Bottom | N/A | |
Radiator Support | Top | 120mm, 240mm |
Front | 120mm, 140mm,240mm, 280mm,360mm | |
Rear | 120mm | |
Bottom | N/A | |
Clearances | CPU Cooler | 165mm |
Power Supply | 390mm (without radiator and HDD installed) 200mm (with radiator and HDD installed) | |
Graphics Card | 410mm (without radiator installed) 360mm (with radiator installed) | |
Cable Routing | Behind MB Tray | 19~27mm |
Dust Filters | Top, Front, Bottom | |
Power Supply Support | ATX PS2 | |
Warranty | 3 Years | |
Note | ***Features, Price and Specifications are subject to change without notice. |
