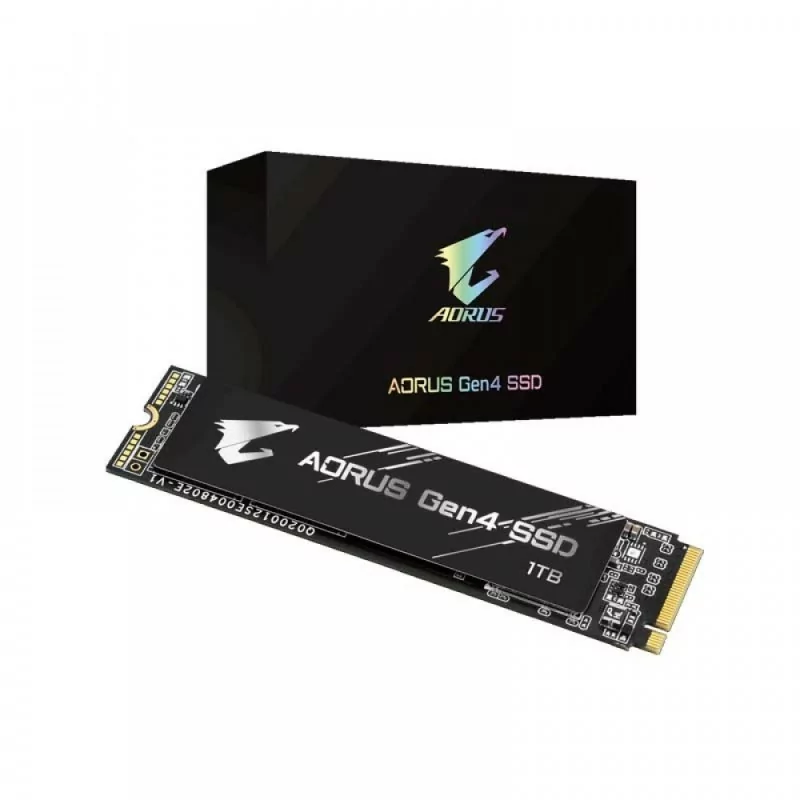

Gigabyte Aorus 1TB NVMe Gen 4 SSD

Gigabyte Aorus PCie Gen 4 x4 NVMe M.2 SSD - 1 TB, Tweaked with Phison PS5016-E16 controller to offer incredible Sequential Read / Write Speeds upto 5000 MB/s

• Form Factor: M.2 2280
• Interface: PCI-Express 4.0 x4, NVMe 1.3
• Total Capacity: 1000GB*
• Sequential Read Speed : up to 5000 MB/s**
• Sequential Write speed : up to 4400 MB/s**
• Wear Leveling, Over-Provision technologies
• TRIM & S.M.A.R.T supported
• Warranty: Limited 5-years

Specifications

Model	GP-AG41TB
Interface	PCI-Express 4.0x4, NVMe 1.3
Form Factor	M.2 2280
Total Capacity	1‎000GB
NAND	3‎D TLC NAND Flash
External DDR Cache	DDR4 1GB
Sequential Read speed	Up to 5000 MB/s
Sequential Write speed	Up to 4400 MB/s
Random Read IOPS	up to 750k
Random Write IOPS	up to 700k
Dimension	8‎0.5 x 11.4 x 23.5 mm
Mean time between failure (MTBF)	1‎.77 million hours
Power Consumption (Active)	Average: R : 6.6W; W : 6.4W
Power Consumption (Idle)	1‎8.8mw
Temperature (Operating)	0‎°C to 70°C
Temperature (Storage)	-40°C to 85°C
Warranty	5 Years
Note	Test system configuration: configuration may vary by models, we will choose the latest platform for verification. * Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0. * Speeds based on internal testing. Actual performance may vary. * TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail. * 1GB = 1 billion bytes. Actual useable capacity may vary. * 5 years or 1800TBW, whichever comes first.
