Razer Tiamat 7.1 V2

TECH SPECS

At a Glance

10x audio drivers

Foldable unidirectional microphone

Audio Control Unit

1 USB connector for power

PC connector: 3.5 mm microphone jack, 4 x 3.5 mm audio jacks

Headphones

10 discrete Neodymium magnet drivers. Each ear cup contains:

Subwoofer:

40 mm Titanium coated diaphragm with Neodymium magnets

Frequency response: 20 Hz – 20, 000 Hz

Impedance: 16 Ω

Sensitivity @ 1 kHz: 118 dB ± 3dB

Front:

30 mm with Neodymium magnet

Frequency response: 20 Hz - 20, 000 Hz

Impedance: 32 Ω

Sensitivity @ 1 kHz: 115 dB ± 3 dB

Rear:

20 mm with Neodymium magnet

Frequency response: 20 Hz - 20, 000 Hz

Impedance: 32 Ω

Sensitivity @ 1 kHz: 118 dB ± 3 dB

Center:

30 mm with Neodymium magnet

Frequency response: 20 Hz - 20, 000 Hz

Impedance: 32 Ω

Sensitivity @ 1 kHz: 115 dB ± 3 dB

Side:

20 mm with Neodymium magnet

Frequency response: 20 Hz - 20, 000 Hz

Impedance: 32 Ω

Sensitivity @ 1 kHz: 118 dB ± 3 dB

Microphone

Frequency response: 100 – 10, 000Hz

Sensitivity @1 kHz: -38 dB ± 3 dB

Signal-to-noise ratio: 58 dB

Pick-up pattern: Unidirectional ECM microphone

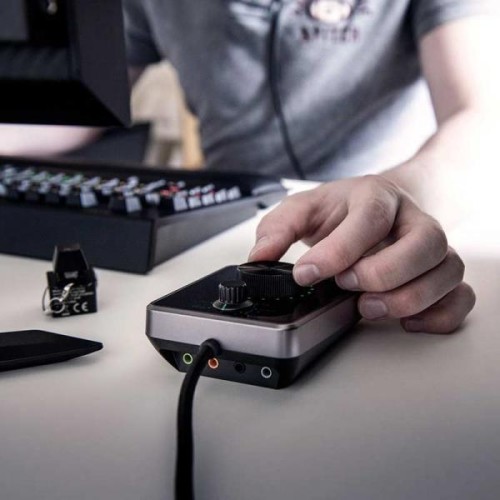

Audio control unit

Master volume, front speakers, center speakers, subwoofers, side speakers, rear speakers, microphone volume, microphone mute, audio mute, 7.1 surround sound / 2.0 stereo mode toggle and speaker / headset toggle

Cable: 3 m / 9.8 ft, braided fiber cable

USB Connector for power

PC connector: 3.5 mm microphone jack, 4 x 3.5 mm audio jacks

External speaker connector: 4 x 3.5 mm audio jacks

System requirements

PC with built-in 3.5 mm audio jacks & 1 USB port (for power)

PC or motherboard with analog surround sound ports (3.5 mm audio jacks x 5 or more) for true 7.1 surround sound.
